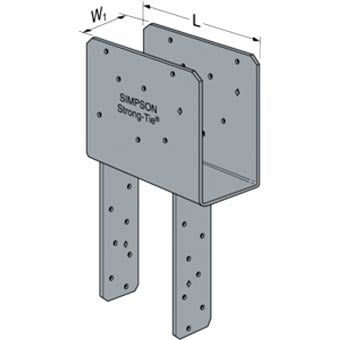

Simpson Strong-Tie ECCQ96SDS25 End Column Cap

Product Description

The Simpson Strong-Tie ECCQ96SDS25 is an end column cap designed for reliable column beam connections. This product utilizes Strong-Drive SDS heavy-duty connector screws for efficient installation. The design promotes a larger net section area compared to traditional bolts, enhancing structural integrity.

• Utilizes SDS screws for faster installation.
• Decreased profile compared to standard through bolts.
• Two and three-eighths inch cutting depth for efficient hole drilling.

Product Highlights

The end cap is suitable for various applications, providing strong connections in framing. It helps builders achieve secure and dependable column support in construction projects.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• MPN: ECCQ96SDS25

Technical Specifications

• Uplift Load: 5355 lb
• Down Load: 31280 lb
• Gauge: 3
• Finish: Painted
• Cap Type: End
• Beam Width: 8-3/4 inches
• Leg Spacing: 5-1/2 inches
• Fastener Size: (14) 1/4 x 2-1/2 in SDS Screws (Beam), (14) 1/4 x 2-1/2 in SDS Screws (Post)
