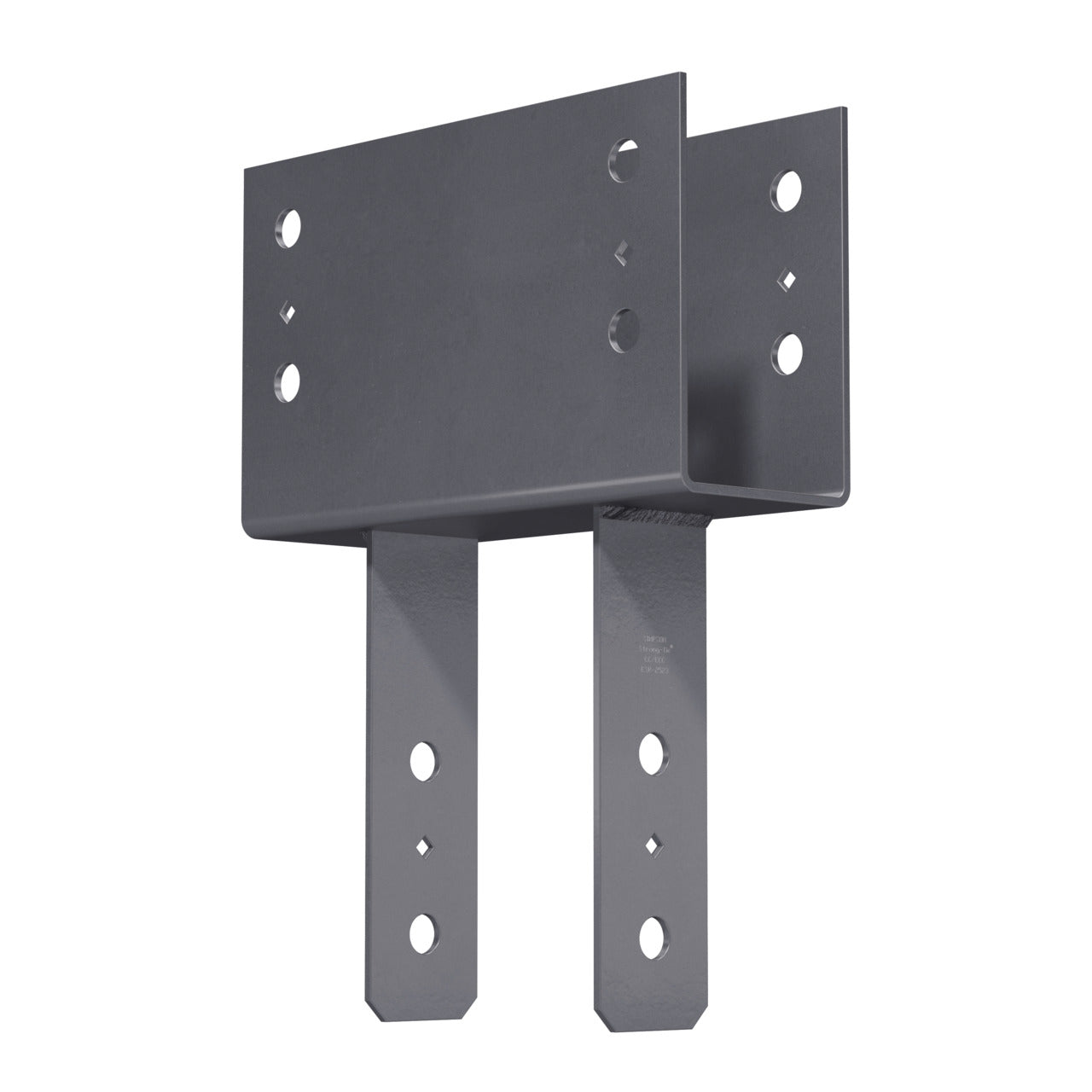

Simpson Strong-Tie ECCQ718SDS25 End Column Cap

Product Description

The Simpson Strong-Tie ECCQ718SDS25 end column cap is designed to provide a strong connection for column beam combinations. It utilizes Strong-Drive SDS heavy-duty connector screws, which result in faster installation times and a greater net section area compared to traditional bolts. These screws also allow for a lower profile than standard through bolts.

• Steel construction ensures durability and strength
• Designed for easy installation
• Compatible with multiple framing applications

Product Highlights

This end column cap is vital for structuring projects, offering reliable performance in various applications.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• Part Number: 137ECCQ718

Technical Specifications

• Gauge: 3
• Finish: Painted
• Cap Type: End
• Beam Width: 7 inches
• Leg Spacing: 7-1/2 inches
• Fastener Size: (14) 1/4 x 2-1/2 inches SDS screws (Beam), (14) 1/4 x 2-1/2 inches SDS screws (Post)
• Uplift Load: 5355 pounds
• Down Load: 39375 pounds
