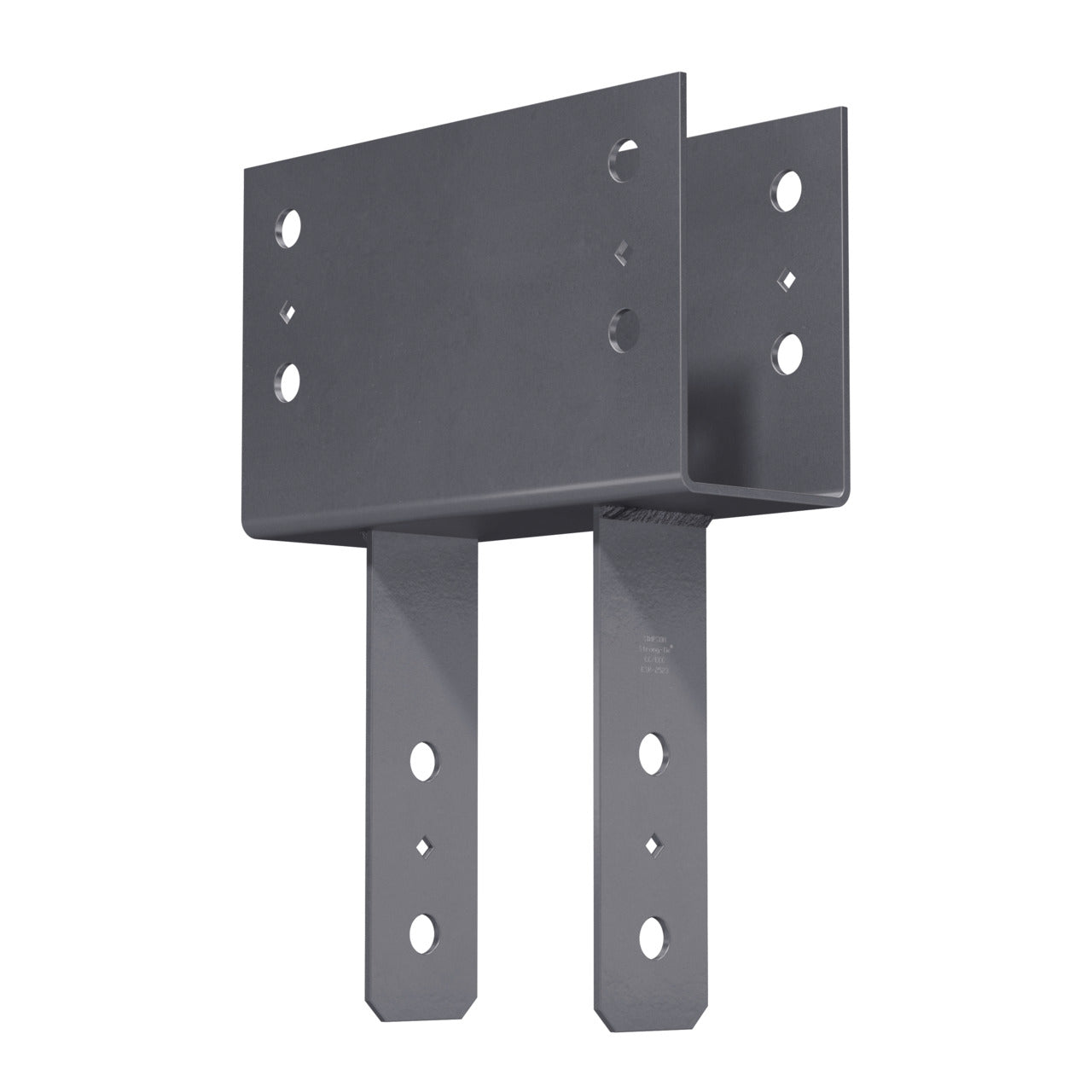

Simpson Strong-Tie ECCQ714SDS25 End Column Cap

Product Description

The Simpson Strong-Tie ECCQ714SDS25 is an end column cap designed for strong connections in column beam combinations. This cap uses Strong-Drive SDS heavy-duty connector screws, ensuring quicker installations and an enhanced net section area of the column compared to traditional bolts. The lower profile provided by SDS screws offers a cleaner look compared to standard through bolts. This cap is compatible with the Soff-Cut system, a recognized Ultra Early Entry system.

• Utilizes Strong-Drive SDS heavy-duty screws
• Provides a strong connection and faster installation
• Specifically designed for the Soff-Cut system

Product Highlights

The ECCQ714SDS25 is designed to improve structural integrity while facilitating ease of installation.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• MPN: ECCQ714SDS25

Technical Specifications

• Load Capacity: Uplift 4040 lb, Down 18375 lb
• Gauge: 3
• Finish: Painted
• Cap Type: End
• Beam Width: 7 inches
• Leg Spacing: 3-5/8 inches
• Fastener Size: 14 1/4 x 2-1/2 in SDS Stainless Steel Screws (Beam), 14 1/4 x 2-1/2 in SDS Stainless Steel Screws (Post)
