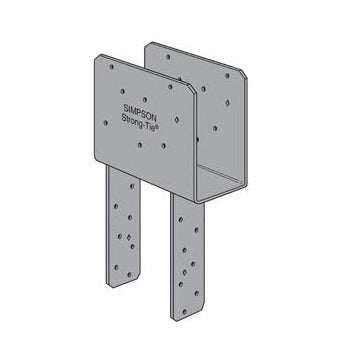

Simpson Strong-Tie ECCQ44SDS25ROT End Column Cap

Product Description

Simpson Strong-Tie ECCQ44SDS25ROT is an end column cap designed to create a strong connection for column beam combinations. This cap utilizes Strong-Drive SDS heavy-duty connector screws for fast installation and improved support. The design allows for a greater net section area compared to traditional bolts, resulting in a more efficient structural connection.

• Strong-Drive SDS screws enhance installation speed.
• Lower profile compared to standard through bolts.
• Painted finish for corrosion resistance.

Product Highlights

This end column cap is perfect for framing applications. It features a durable construction that meets various structural needs.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• Part Number: 137ECCQ44R90

Technical Specifications

• Load Capacity: Uplift (160) 3785 lb, Down (100) 7655 lb
• Gauge: 7
• Finish: Painted
• Cap Type: End
• Beam Width: 3-1/2 inches
• Leg Spacing: 3-5/8 inches
• Fastener Size: (14) 1/4 x 2-1/2 inches SDS Stainless Steel Screws (Beam), (14) 1/4 x 2-1/2 inches SDS Stainless Steel Screws (Post)
