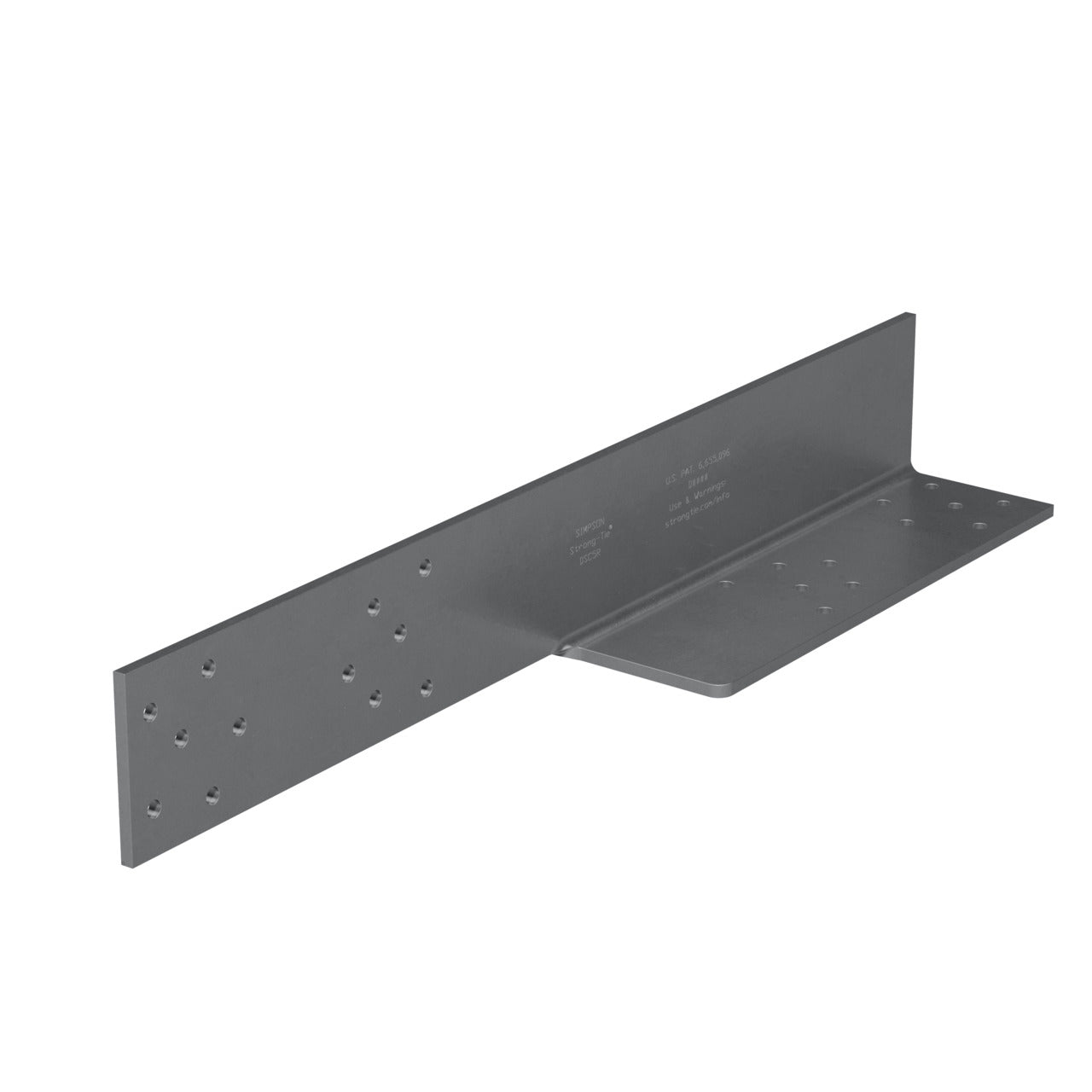

Simpson Strong-Tie DSC5RSDS3 Right Drag-Strut Connector

Product Description

The Simpson Strong-Tie DSC5RSDS3 is a right drag-strut connector designed for effective transfer of diaphragm shear forces from girders or beams to shearwalls. This connector supports structural integrity in framing projects.

• Optimized fastener locations for improved performance
• Requires forty percent fewer fasteners compared to previous models
• Compatible with 1/4 x 3 inch Strong-Drive SDS heavy-duty screws provided with the connector

Product Highlights

This connector is suitable for use in demanding construction environments, where strength and reliability are essential.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• Part Number: 137DSC5R

Technical Specifications

• Finish: Painted
• Maximum Load (DF/SP): Compression (160) 4340 lb, Tension (160) 4195 lb
• Maximum Load (SPF/HF): Compression (160) 3730 lb, Tension (160) 3610 lb
• Fastener Size: (24) 1/4 x 3 in
• Nominal Product Depth: 0
