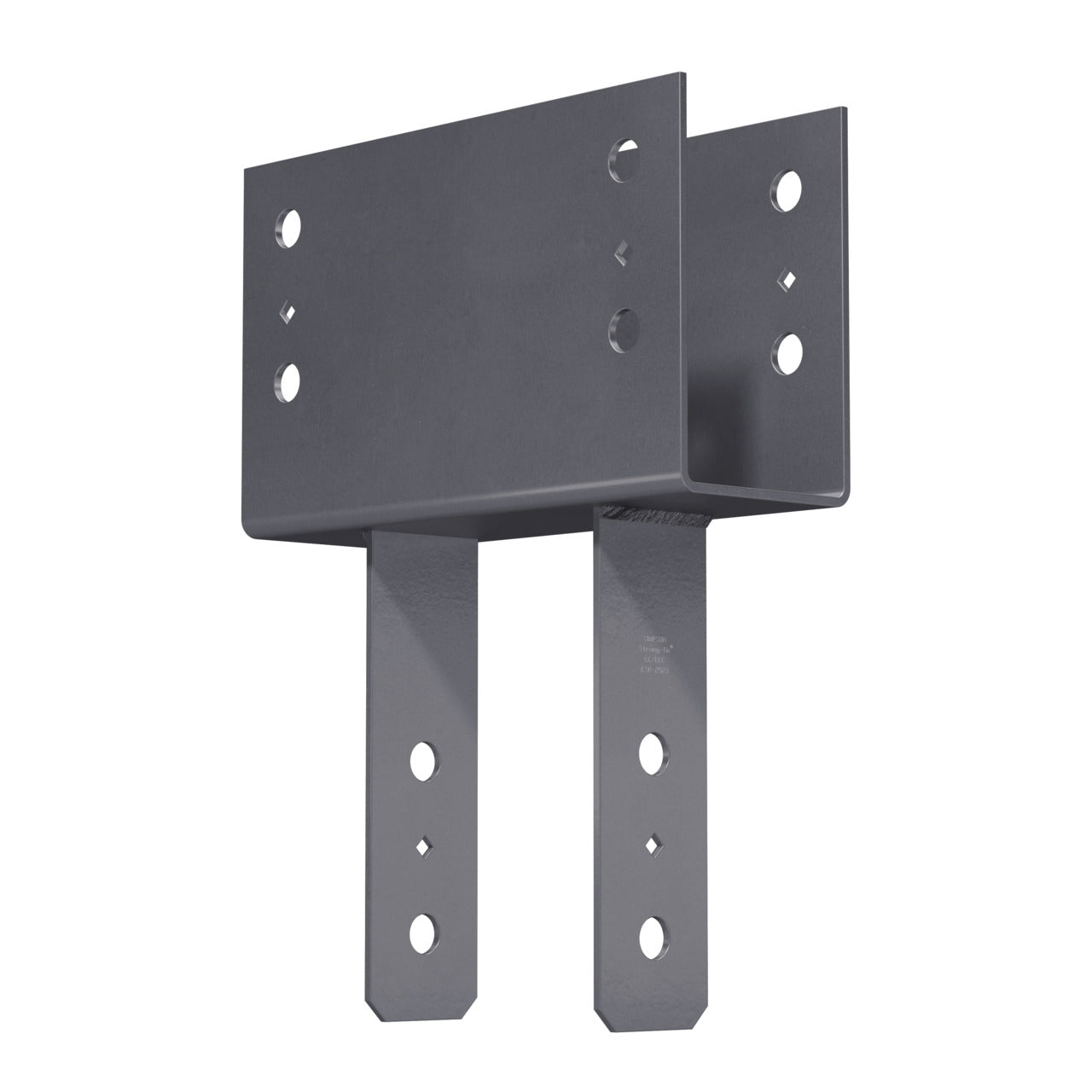

Simpson Strong-Tie CCQ86SDS25 Column Cap

Product Description

The Simpson Strong-Tie CCQ86SDS25 Column Cap provides a robust connection for column and beam applications. This column cap utilizes Strong-Drive SDS heavy-duty connector screws for swift installation and improved strength. The design leads to a greater net section area of the column compared to traditional bolts. The SDS screws also allow for a lower profile compared to standard through bolts.

• Utilizes Strong-Drive SDS heavy-duty connector screws
• Faster installation than standard bolts
• Extra low permeability reduces chloride intrusion

Product Highlights

This product supports rapid setting, enabling structures to be accessible to vehicular traffic in as little as one hour. It also features low residual moisture, allowing coatings to be applied in four hours.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• Part Number: 137CCQ86

Technical Specifications

• Uplift Load: 6785 lb
• Down Load: 41250 lb
• Gauge: 3
• Finish: Painted
• Beam Width: 7-1/2 inches
• Leg Spacing: 5-1/2 inches
• Fastener Size: (16) 1/4 x 2-1/2 in SDS Screws (Beam), (14) 1/4 x 2-1/2 in SDS Screws (Post)
• Nominal Product Depth: 0
