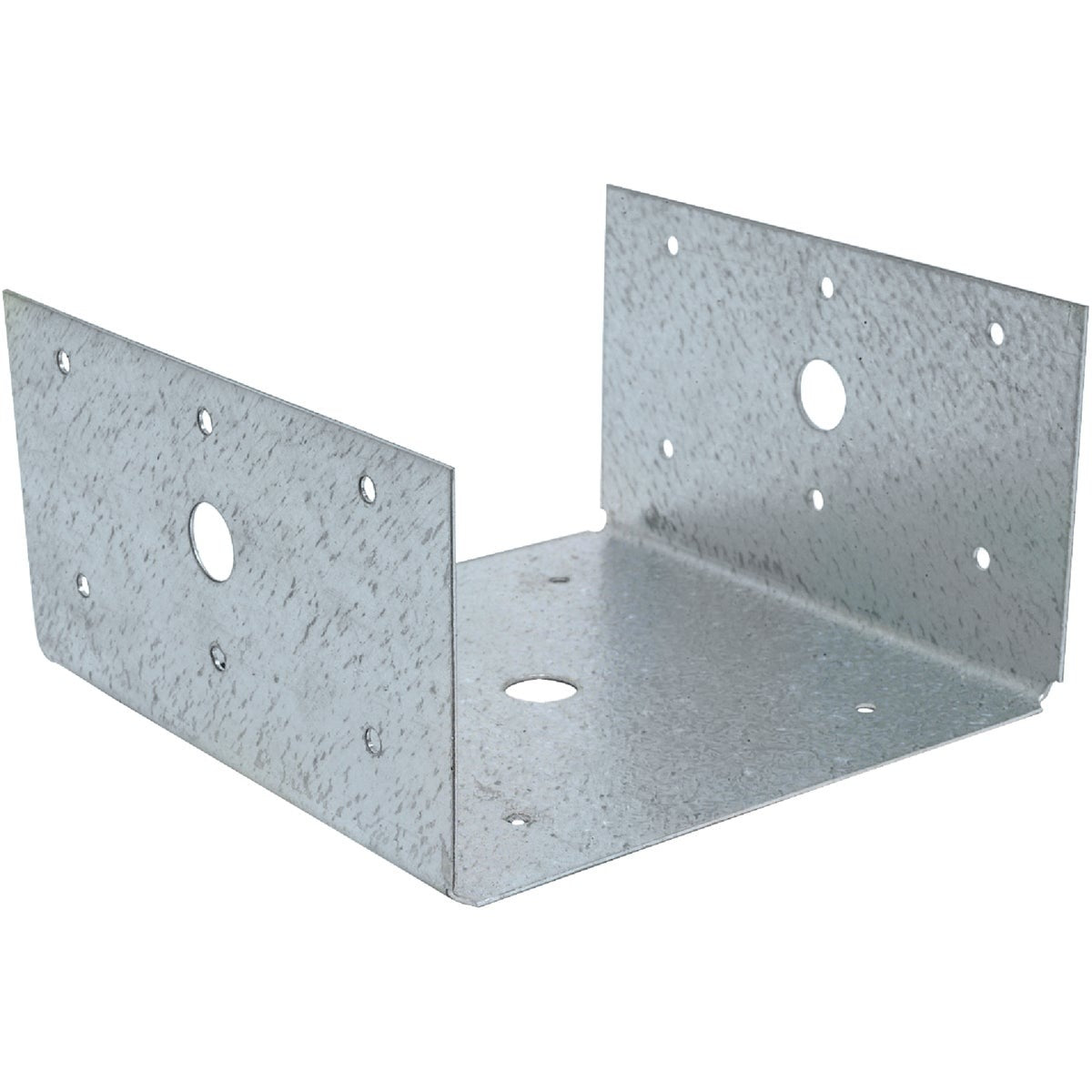

Simpson Strong-tie BC60Z Post Base Cap 6x6 Z-max

Product Description

The SIMPSON STRONG-TIE BC60Z is a dual-purpose post cap and base connector designed for 6x6 lumber, finished with a Z-MAX coating for enhanced corrosion resistance. Constructed from 18-gauge galvanized steel, this connector handles light cap or base connections in wood-framed structures. It is installed by licensed contractors, carpenters, and structural framers working on decks, pergolas, covered patios, and similar load-bearing assemblies. The Z-MAX coating provides a thicker zinc layer than standard galvanizing, making it suitable for environments with higher moisture exposure or where treated lumber is used.

The BC60Z is used in residential and light commercial construction applications where a code-compliant post-to-beam or post-to-footing connection is required. Typical installations include deck framing, pergola columns, carport posts, and covered outdoor structures. Install with 16d common nails or 16d x 2-1/2 joist hanger nails per manufacturer requirements. This connector is not recommended for non-top-supported installations such as fences or unbraced carports where lateral rotation resistance is required.

Key Features

• Dual-purpose design functions as both a post cap and post base for 6x6 lumber
• Z-MAX coating provides enhanced corrosion resistance over standard galvanizing
• 18-gauge galvanized steel construction for structural durability
• Compatible with 16d common nails or 16d x 2-1/2 joist hanger nails
• Not suitable for non-top-supported installations such as fences or unbraced carports
• Do not install bolts into pilot holes

Compatibility

Designed for use with 6x6 nominal lumber posts in residential and light commercial framing applications as an OEM-style structural connector.

Installation Notes

Installation should be performed by a qualified carpenter or contractor following applicable building codes and engineered load tables. Do not install bolts into the pilot holes provided on this connector. Fasten using 16d common nails or 16d x 2-1/2 joist hanger nails only. Post bases in the BC series do not provide adequate rotational resistance and must not be used in non-top-supported configurations.
