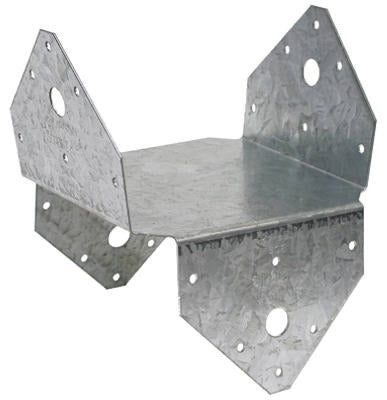

Simpson Strong Tie BC6 Post Cap and Base 6x6

Product Description

The SIMPSON STRONG TIE BC6 is a dual-purpose post cap and base connector engineered for 6x6 lumber applications. It provides a structural connection at both the top and bottom of a post, resisting lateral and uplift forces that can compromise framing integrity over time. By distributing load across the connection point, the BC6 reduces stress concentrations that cause splitting in post and beam assemblies. Licensed contractors, framers, and structural carpenters install this connector in wood-framed construction where a single hardware component needs to serve both cap and base functions.

The BC6 is suited for residential and light commercial framing projects involving 6x6 posts. Typical applications include deck framing, pergola construction, carport framing, and similar above-grade structural assemblies where posts bear vertical loads and are subject to lateral wind or seismic forces. Each package contains 10 connectors, making it practical for multi-post installations on a single job site.

Key Features

• Dual-function design serves as both a post cap and post base, reducing the number of distinct hardware SKUs needed per project
• Engineered to resist lateral and uplift pressures at the post connection
• Reduces likelihood of post and beam splitting at connection points
• Sized for standard 6x6 dimensional lumber
• Sold in a package of 10 connectors per unit of measure

Compatibility

Designed as an OEM-style structural connector for standard 6x6 dimensional lumber posts used in residential and light commercial wood-framed construction.

Installation Notes

Installation is typically performed by licensed framers or general contractors following the applicable building code for the jurisdiction, which may reference IBC or IRC fastener and connector requirements. Fasten using fasteners that meet the connector manufacturer specifications for the hole pattern provided. Verify post alignment and plumb before final fastening. Do not modify the connector by cutting, bending, or field-drilling outside the designated fastener holes.

Technical Specifications

• Application: 6x6 Post Cap and Base
• Package Quantity: 10 per package
• Weight: 10 pounds

Standard Information

• Brand: SIMPSON STRONG TIE
• Manufacturer Part Number: BC6
