Simpson Strong Tie ABA44Z 4x4 Standoff Post Base

Product Description

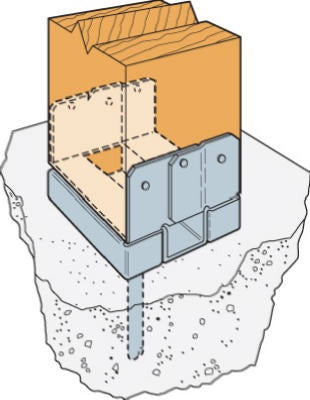

The SIMPSON STRONG TIE ABA44Z is a standoff post base designed to protect wood posts and columns from moisture damage at the base-to-concrete connection. It holds the post 1 inch above the concrete surface, reducing direct contact with water and minimizing rot and decay at the end grain. The base is fabricated from 16 gauge Z-Max galvanized steel, which delivers strong corrosion resistance for outdoor and exposed environments. Installation requires six 10D HDG nails and a 1/2 inch diameter HDG threaded anchor, providing a stable, code-ready mechanical connection between the post and the concrete foundation below.

This standoff post base is suited for residential and light commercial outdoor construction applications including decks, pergolas, carports, fences, and covered patios. It is appropriate for use in treated-lumber environments where elevated corrosion resistance is required. The Z-Max coating is formulated to hold up against the chemicals present in pressure-treated lumber, making this base a practical choice for ground-level and near-grade post installations handled by carpenters, general contractors, and structural trades.

Key Features

• 1 inch standoff height keeps post end grain clear of concrete surface to reduce moisture absorption and decay
• 16 gauge Z-Max galvanized steel construction provides corrosion resistance compatible with pressure-treated lumber
• Secures with six 10D HDG nails and a 1/2 inch diameter HDG threaded anchor for positive mechanical attachment
• Designed for 4x4 nominal post sizes
• Sold in packages of 20 units

Compatibility

Designed as an OEM-style standoff post base for 4x4 nominal wood posts in outdoor structural applications.

Installation Notes

Installation is typically performed by carpenters or general contractors following local building codes and applicable load tables. Set and cure the concrete anchor before attaching the base hardware. Verify anchor placement and embedment depth meet local code requirements before fastening the post. Do not substitute non-HDG fasteners in exterior or treated-lumber applications, as standard zinc fasteners are not compatible with the preservative chemicals in pressure-treated wood.

Technical Specifications

• Post Size: 4x4 nominal
• Standoff Height: 1 inch
• Gauge: 16 gauge
• Material: Z-Max galvanized steel
• Anchor Requirement: 1/2 inch diameter HDG threaded anchor
• Fastener Requirement: Six 10D HDG nails
• Package Quantity: 20 EA
• Weight: 16 pounds

Standard Information

• Brand: SIMPSON STRONG TIE
• Manufacturer Part Number: ABA44Z
