Simpson Strong Tie A23Z Angle Z-max 2x3 Framing Connector

Product Description

The SIMPSON STRONG TIE A23Z is an 18-gauge galvanized steel framing angle designed to reinforce 90-degree connections in wood-frame construction. It resists corrosion through a Z-Max galvanized coating, making it suitable for treated-lumber applications and exterior or damp environments. The angle is sized for 2x3 lumber and accepts standard 10d x 1-1/2 inch hot-dipped galvanized nails for fastening. Licensed contractors, framers, and experienced DIYers install this connector where lateral load transfer and structural rigidity are required at post-to-plate or beam-to-post joints.

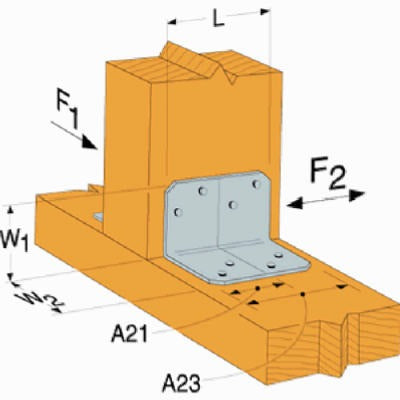

The A23Z is used in residential wood-frame construction for applications including wall framing, post bases, and general structural connections requiring a right-angle tie. It is well suited to new construction, renovation framing, and repair work where a compact, right-angle connector is needed to stabilize a 2x3 member. Eight nails total are required per installation: four into the base member and four into the post or vertical member, providing a balanced load path at the joint.

Key Features

• 18-gauge galvanized steel construction for strength and corrosion resistance
• Z-Max coating rated for use with treated lumber in exterior and damp conditions
• Sized for 2x3 dimensional lumber framing connections
• Accepts 10d x 1-1/2 inch hot-dipped galvanized nails for code-compliant fastening
• Eight-nail installation pattern distributes lateral load evenly across the joint
• Sold in a package quantity of 200 units for jobsite and trade use

Compatibility

Designed as an OEM-style structural connector for 2x3 dimensional lumber 90-degree framing joints in residential and light commercial wood construction.

Installation Notes

Installation is performed by framers, carpenters, or licensed contractors following applicable building code requirements. Fasten with hot-dipped galvanized or stainless steel nails only when connecting to treated lumber to prevent accelerated corrosion of the connector. Do not substitute with smooth-shank or electroplated fasteners in treated-lumber applications. Confirm local code requirements for connector placement, nailing schedule, and load ratings before installation.

Technical Specifications

• Material: 18-gauge galvanized steel with Z-Max coating
• Lumber Size: 2x3
• Package Quantity: 200 per package
• Unit of Measure: EA
• Package Weight: 26 pounds

Standard Information

• Brand: SIMPSON STRONG TIE
• Manufacturer Part Number: A23Z
