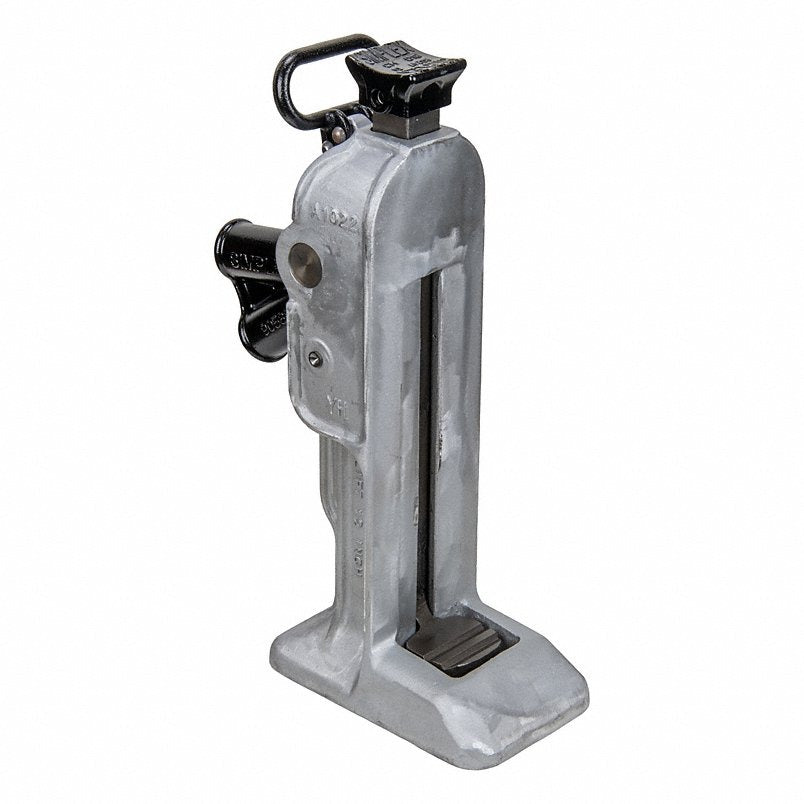

Simplex rja1022 Ratchet Jack 10 Ton Aluminum Manual

Product Description

The SIMPLEX rja1022 is a 10-ton capacity aluminum ratchet jack designed for lifting, lowering, and leveling heavy vehicles and equipment in industrial and field service environments. It operates through a manual handle and pawl-and-ratchet mechanism, providing controlled, incremental lift across 57 positions. The aluminum body keeps the unit manageable at 42 pounds while maintaining structural integrity under full load. Drop-forged, alloy steel, heat-treated components handle the stress of repeated heavy lifts. Multiple-tooth pawls provide redundant engagement for load security throughout the lift cycle. Licensed mechanics, equipment technicians, and fleet maintenance professionals are the primary installers and operators of this tool.

The rja1022 is suited for use in vehicle maintenance shops, heavy equipment staging areas, and field service applications where hydraulic power is unavailable or impractical. The double-lever socket design allows jacking in close quarters where standard jacks cannot fit. The large base footprint and firm foundation design make it appropriate for uneven or semi-prepared surfaces. Carrying handles support repositioning and transport across a work site without additional lifting equipment. The unit meets ANSI/ASME B30.1 standards for portable floor jacks, making it appropriate for professional shop and field use.

Key Features

• 10-ton load capacity with 57 discrete lift positions for precise load control
• Aluminum body construction reduces unit weight to 42 pounds for easier transport
• Drop-forged, alloy steel, heat-treated internal components for durability under repeated load cycles
• Double-lever socket design enables use in confined or close-quarter jacking situations
• Multiple-tooth pawls provide strength and redundant safety engagement at each lift position
• Plated springs resist corrosion in wet or outdoor service environments
• Integrated carrying handles simplify repositioning of the 42-pound unit on site

Compatibility

Designed as an OEM-style manual ratchet jack for professional use in vehicle and heavy equipment lifting applications conforming to ANSI/ASME B30.1 requirements.

Installation Notes

Positioning and operation of this jack should be performed by qualified mechanics or equipment technicians familiar with rated load limits and safe blocking practices. Always verify the jack is placed on a stable, level surface and that the load does not exceed the 10-ton rated capacity before engaging the ratchet. Confirm pawl engagement at each lift increment before working under or around a suspended load. Follow applicable OSHA and facility lockout/tagout procedures when using this jack as part of an equipment maintenance operation.

Technical Specifications

• Load Capacity: 10 ton
• Minimum Lift Height: 21.625 inches
• Maximum Lift Height: 33.625 inches
• Stroke: 12 inches
• Number of Lift Positions: 57
• Top Plate Size: 3 inches L x 2.5 inches W
• Base Length: 10.25 inches
• Base Width: 6.5 inches
• Toe Height: 2 inches
• Body Material: Aluminum
• Toe Material: Aluminum
• Lifting Actuator: Manual Handle
• Power Source: Mechanical
• Weight: 42 pounds
• Standards: ANSI/ASME B30.1
• Country of Origin: China (subject to change)

Standard Information

• Brand: SIMPLEX
• Manufacturer Part Number: rja1022
