Simmons Manufacturing 454SB Foot Valve 1-1/4 inch

Product Description

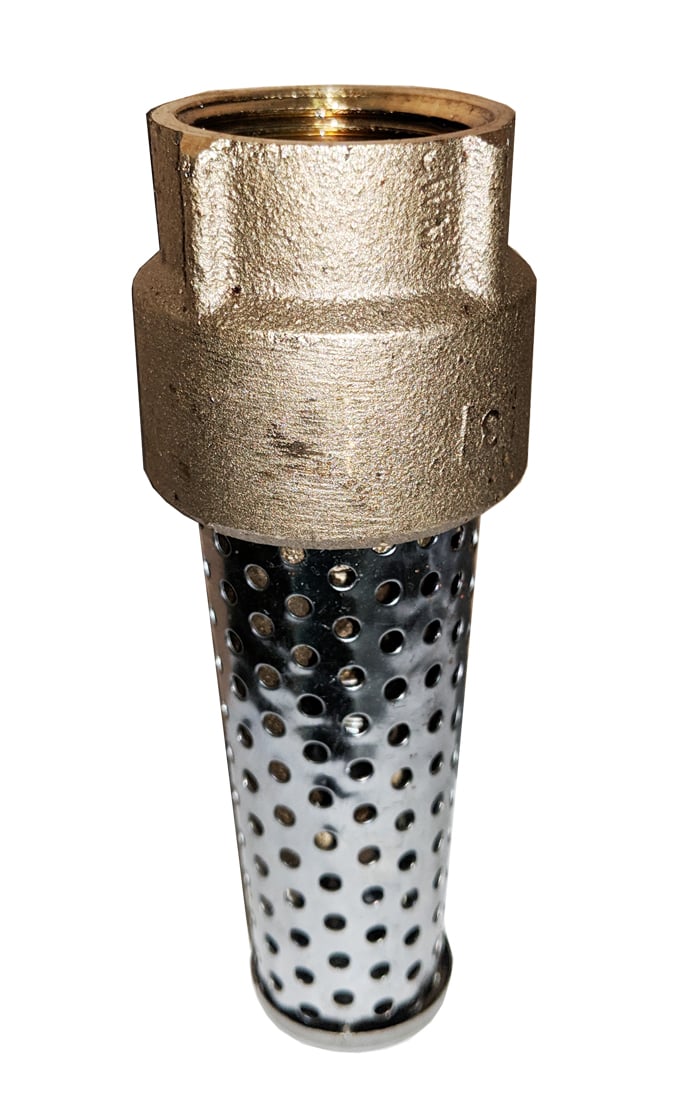

The SIMMONS MANUFACTURING 454SB is a 1-1/4 inch foot valve with a silicon bronze cast body and poppet, designed for pumps. It features female threads and a stainless steel perforated strainer. This valve is certified lead-free and furnished with a Buna-N O-Ring, stainless steel spring, and stainless steel locknut.

• Silicon bronze cast body and poppet
• Stainless steel perforated strainer
• Certified lead-free

Product Highlights

The Simmons foot valve is suitable for pumps, with a silicon bronze body, stainless steel strainer, and lead-free certification.

Product Information

Standard Information

• Brand: SIMMONS MANUFACTURING
• Manufacturer Part Number: 454SB
• Country of Origin: United States

Technical Specifications

• MPN: 454SB
• Brand: SIMMONS MANUFACTURING
• Size: 1-1/4 in.
• Pressure rating: 400 psi
• Body Material: Silicon Bronze
• Item: Foot Valve
• Connection Type: FNPT x FNPT
• Valve Body Design: Inline
• Seat Material: Bronze
• Max. Temp.: 190 Degrees F
• Mounting Position: Any
• Max. Pressure: 400 psi
• Material of Construction: Bronze
• Screen Material: Stainless Steel
• Application: Pumps
• Seal Material: Buna N
• Strainer Material: Stainless Steel
• Spring Material: Stainless Steel
• Standards: NSF 372, 61 Certified
• Cracking Pressure: 0.500 psi
• Flow Design: Single
• Design: Spring
• Operating Temperature - Maximum: 190 Degrees F
• Mounting Orientation: Horizontal, Vertical
• Foot Valve Design Type: Spring
• Connection Gender: Female
• Maximum Pressure - Operating: 400 psi
• Pipe Size: 1 1/4"
• Hex Size: 2 1/16"
• Overall Height: 5"
• Width: 2-1/16"
• Length: 5"
• Compatible Pipe Size: 1 1/4 in
• Country of Origin: United States
• Cap to Inlet Center: 1-1/2"
