Product Description

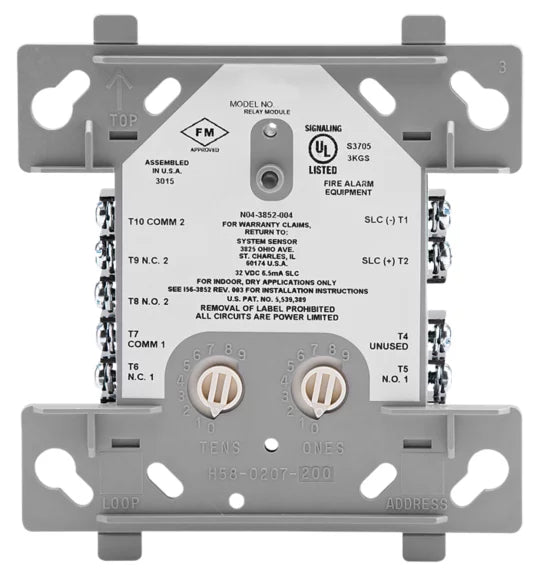

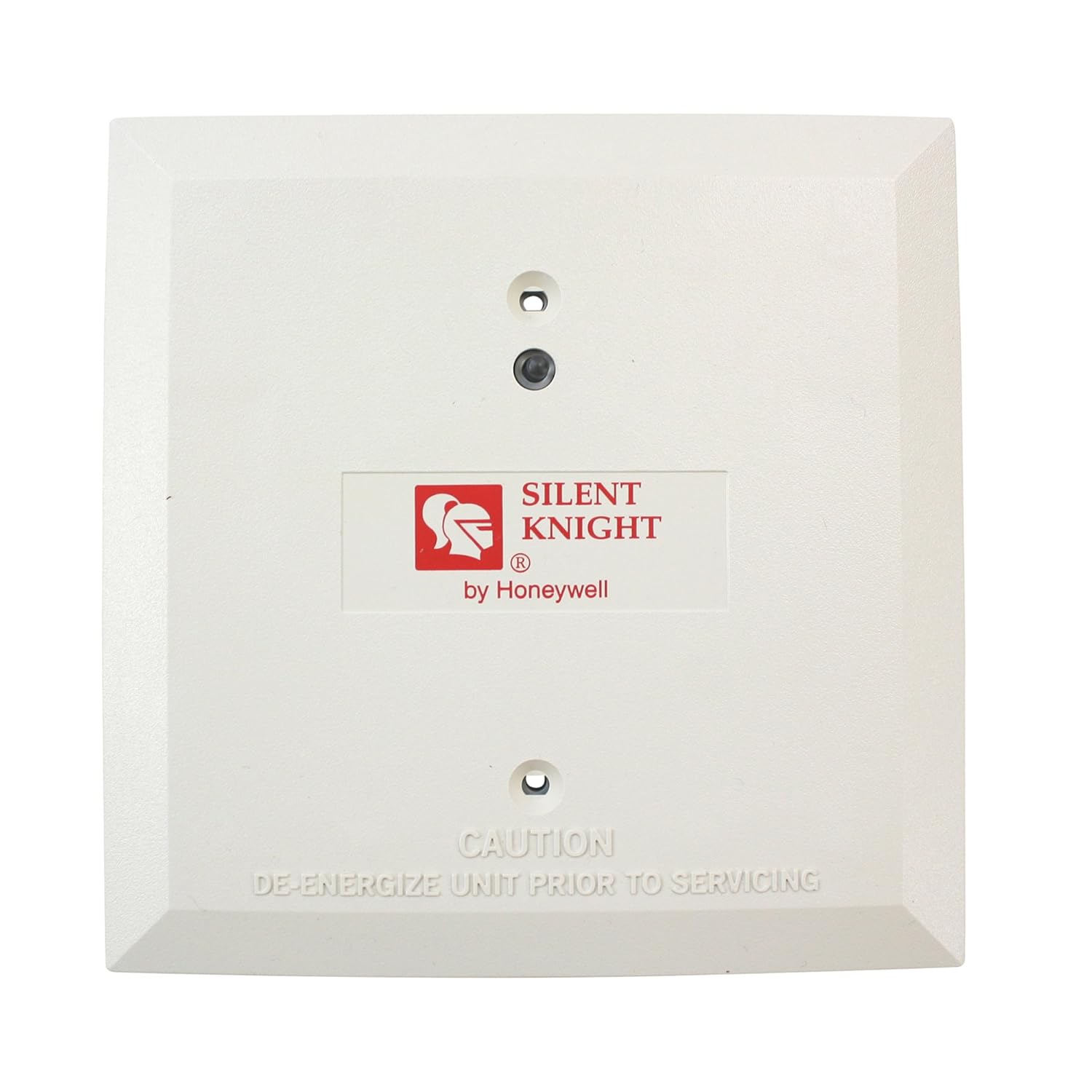

The Silent Knight SK-RELAY is an addressable relay module designed for use with Honeywell Silent Knight Series fire alarm control panels (FACPs). It allows a Silent Knight FACP to switch discrete contacts by code command. The relay contains two isolated sets of Form C contacts, which operate as a DPDT switch. No supervision is provided for the notification appliance circuit.
- Two sets of Form C contacts

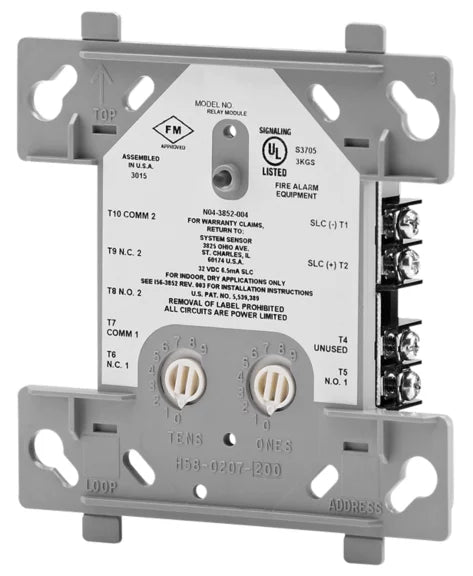

- Rotary address switches for fast installation
- Relay programming is completely flexible and can be mapped to zone conditions
Product Highlights
The SK-RELAY contacts can be used for normally open or normally closed applications. Each module is programmed with a unique signaling line circuit (SLC) loop address.
Product Information
Standard Information
-
Brand: Silent Knight
-
Manufacturer Part Number: SK-RELAY
-
Country of Origin: Mexico
Technical Specifications
-
Item Model Number: SK-RELAY
-
Manufacturer: Silent Knight
-
MPN: SK-RELAY
-
Brand: Farenhyt|Silent Knight|Silent Knight
-
ADI Part Number: SK-RELAY
-
Brand Name: Silent Knight by Honeywell
-
Manufacturer Part Number: SK-RELAY
-
Product Model: SK-RELAY
-
Product Name: Intelligent Relay Module
-
Product Type: Relay Module
-
Depth: 1.4"
-
Height: 4.7"
-
Width: 4.3"
-
Input Voltage: 32V DC
-
Compatibility: 5700: Addressable fire alarm control panel, 5808: Addressable fire alarm control panel, 5820XL: Addressable fire alarm control panel, 5820XL-EVS: Addressable fire alarm control panel with an emergency mass notification system., 6700: Addressable fire alarm control panel, 6808: Addressable fire alarm control panel, 6820: Addressable fire alarm control panel, 6820EVS: Addressable fire alarm control panel with an emergency mass notification system., The SK-RELAY is compatible with the following Honeywell Silent Knight fire alarm control panels:
-
Connector Type: Screw
-
Contact Material: Silver
-
Contact Type: 2no 2nc
-
Mounting Type: DIN Rail Mount
-
Operation Mode: Automatic
-
Operating Voltage: 15 – 32 VDC
-
SLC Standby & Alarm Current: .255mA max @ 24VDC (one communication every 5 sec with LED enabled)
-
Operating Temperature: 32°F – 120°F (0°C – 49°C)
-
Humidity: 10% – 93% non-condensing
