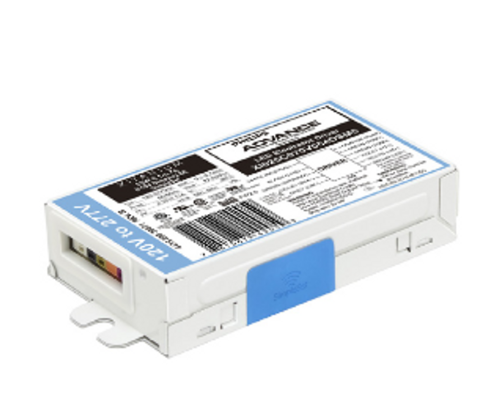

Signify XI036C100V054DSM1M Dimmable LED Driver 36 W (5 in L x 2.38 in W)

Product Description

The Signify XI036C100V054DSM1M dimmable LED driver accepts 120 to 277 VAC input and provides 54 VAC output at 36 W. It measures 5 inches in length and 2.38 inches in width. This Xitanium LED driver is designed for flexibility and smooth dimming performance down to 1%. It is suitable for indoor downlights, wall sconces, and ceiling surface luminaires.

• Dimmable LED Driver
• 120 to 277 VAC Input
• 54 VAC Output

Product Highlights

Dimmable LED driver with wide operating window and simple current adjustability. Ideal for downlight fixtures with desired lumen levels.

Product Information

Standard Information

• Brand: SIGNIFY
• Manufacturer Part Number: XI036C100V054DSM1M

Technical Specifications

• Input Voltage: 120 to 277 VAC
• Output Voltage: 54 VAC
• Power: 36 W
• Length: 5 in
• Width: 2.38 in
• Brand: SIGNIFY
• MPN: XI036C100V054DSM1M
• Amperage Rating: 1 A
• Application: Indoor Downlight, Wall Sconces and Ceiling Surface Luminaires, Retail, Office and Floodlight
• Height: 0.98 in
• Power Factor: >0.95
• Power Rating: 36 W
• Standards/Approvals: UL 8750|UL 991|CSA 250.13-14|C22.2 No. 0.8-12|ETL Listed|UL 2043|FCC Title 47 Part 15 Class A|UL Listed for Damp and Dry Locations
• Temperature Rating: -20 to 50 deg C
• Type: Dimmable
