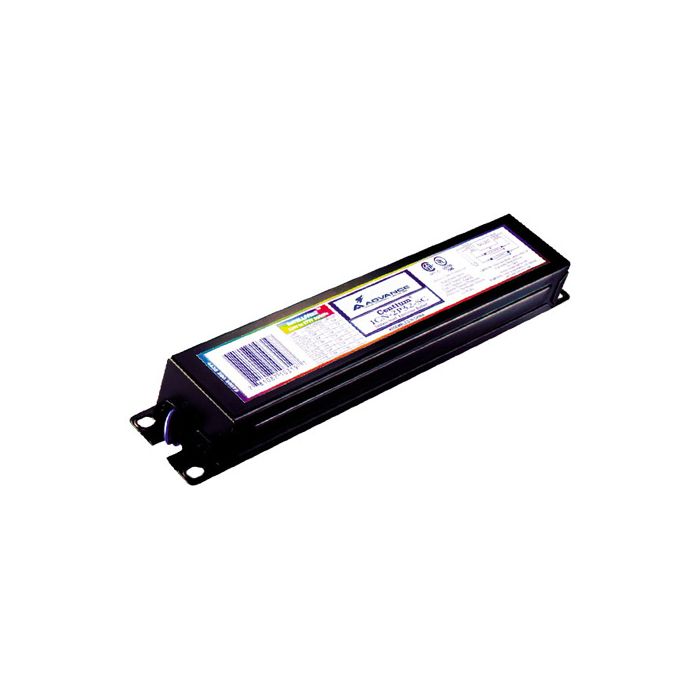

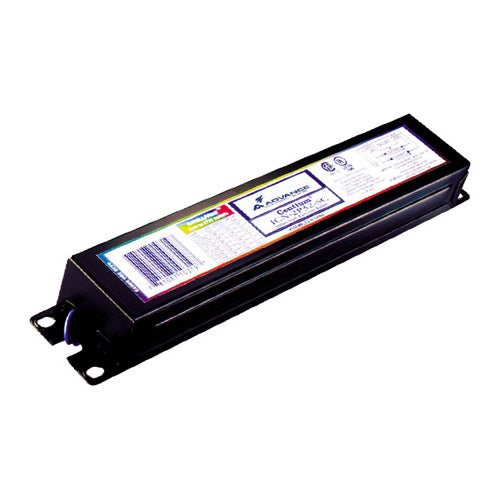

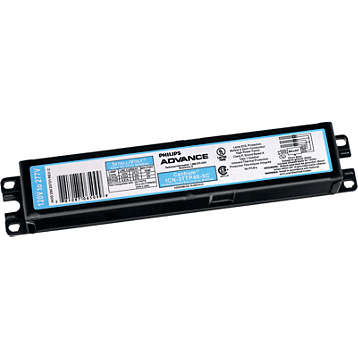

Signify ICN3TTP40SC35I Advance Centium Electronic Compact Fluorescent Ballast 40 W

Product Description

The SIGNIFY ICN3TTP40SC35I Advance Centium Electronic Compact Fluorescent Ballast is designed for CFL lamps and 40 W wattage. It operates on 120 to 277 VAC and features an instant start. It is suitable for retail, commercial, institutional, and industrial applications, including schools, offices, and warehouses.

• Long twin tube, parallel lamp connection
• High power factor
• IntelliVolt technology (120 to 277 VAC)

Product Highlights

This electronic ballast offers reliable performance and energy efficiency for a variety of lighting applications.

Product Information

Standard Information

• Brand: SIGNIFY
• Manufacturer Part Number: ICN3TTP40SC35I
• Country of Origin: MX

Technical Specifications

• Lamp Type: CFL
• Wattage: 40 W
• Voltage Rating: 120 to 277 VAC
• Starting Method: Instant
• Ballast Factor: 0.88
• Amperage Rating: 0.35 to 0.83 A
• Frequency Rating: 60 Hz
• Lamp Base Type: 4-Pin 2G11
• Number of Lamps: 3
• Power Factor: 0.98
• Standards/Approvals: RoHS Compliant|UL File No. E14927|CSA File No. 007310
• Temperature Range: 70 deg C
• Total Harmonic Distortion: 10 %
• Type: Electronic
• Material: Metal
• Input Voltage: 120/277 V
• Input Wattage: 99-97 W
• Wire Size: 18 AWG
• Wire Type: Solid
• Housing Material: Metal
• Sub Brand: Centium
• Wire Gauge: 18 AWG
• Brand: Advance
