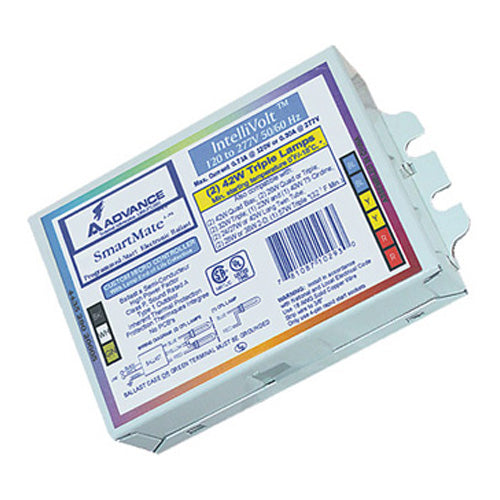

Signify ICF2S42M2LD35M Advance Ele Ballast (2) 42W CFL 120 to 277V

Product Description

The Signify ICF2S42M2LD35M is an electronic compact fluorescent ballast designed for two forty-two watt compact fluorescent lamps. This ballast operates on a voltage range of 120 to 277 volts, making it suitable for various applications including commercial lighting in venues like restaurants and conference rooms.

• Operates 2 CFL lamps with ease
• Compatible with a range of lamp wattages
• Efficient and compact design for retrofit and new installs

Product Highlights

The ICF2S42M2LD35M ballast offers energy efficiency and flexibility for lighting systems.

Product Information

Standard Information

• Brand: Signify
• MPN: ICF2S42M2LD35M

Technical Specifications

• Amperage Rating: 0.33 to 0.78 A
• Ballast Factor: 0.97
• Dimensions: 4.55 in L x 3 in W x 1.29 in H
• Frequency Rating: 50/60 Hz
• Lamp Base Type: GX24Q 4-Pin
• Lamp Type: CFL
• Lamp Wattage: 42 W
• Material: Metal
• Number of Lamps: 2
• Power Factor: 0.98
• Standards/Approvals: UL File No. E14927 | CSA File No. 007310
• Start Type: Programmed
• Temperature Range: 75 deg C
• Total Harmonic Distortion: 10 %
• Voltage Rating: 120 to 277 VAC
• Wattage: 93 W
