Signify 71A8172001D Advance 71A8172-001D ADV 1-S55 150W HPS BALLAST

Product Description

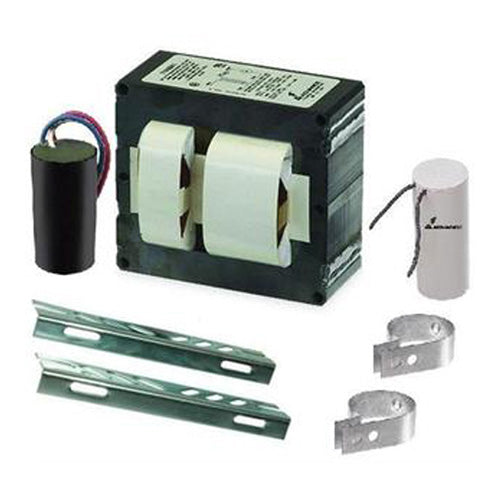

Signify offers the 71A8172001D Advance High Pressure Sodium Ballast Kit. This kit is designed for high pressure sodium lamps, specifically for a 150 watt lamp. The ballast operates on multiple voltage ratings: 120, 208, 240, or 277 VAC. This core and coil HID magnetic ballast is suitable for outdoor applications and ensures reliable performance.

• Suitable for 150 watt high pressure sodium lamps
• Operates at 120/208/240/277 VAC
• Features pulse start technology

Product Highlights

The 71A8172001D ballast is ideal for various outdoor lighting needs, providing stability and safety in operation. It has built-in thermal protection and complies with ANSI S55 ballast grade standards.

Product Information

Standard Information

• Manufacturer: Signify
• UPC: 78108781721

Technical Specifications

• Dimensions: 4 inches L x 4.2 inches W x 2.9 inches H
• Amperage Rating: 1.65/0.95/0.83/0.72 A
• Frequency Rating: 60 Hz
• Power Factor: 1
• Thermal Protection: Class P
• Minimum Starting Temperature: -40 degrees F
• Ballast Factor: 1
• Dimmable: No
