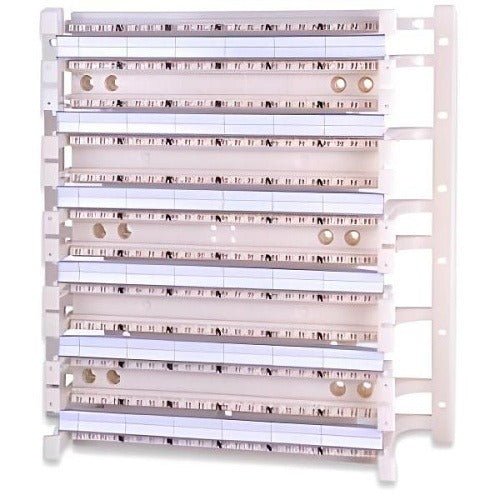

Signamax Inc. 110WB6-288PR-L Cat 6 288-pair 110 Wiring Block

Product Description

The SIGNAMAX INC. 110WB6-288PR-L is a CAT 6 rated 110-style wiring block designed to terminate and distribute 288 pairs of copper twisted-pair cabling in structured wiring installations. The block ships with a mounting bracket for rack or backboard installation. It supports the high-frequency performance demands of CAT 6 horizontal cabling runs, making it a practical choice for patch panel builds, cross-connect fields, and backbone terminations in commercial and enterprise data cabling projects. Licensed low-voltage technicians and structured cabling installers are the primary installers of this product.

This wiring block is suited for commercial and light industrial structured cabling applications where high pair-count termination points are required. It fits into telecommunications rooms, main distribution frames, and intermediate distribution frames. The 288-pair capacity makes it appropriate for mid- to large-scale horizontal copper cabling deployments following TIA-568 structured cabling standards. It is sold as a single unit.

Key Features

• CAT 6 rated performance for high-frequency copper twisted-pair terminations
• 288-pair capacity supports high-density cross-connect and distribution fields
• 110-style termination format compatible with standard 110 wiring accessories
• Includes mounting bracket for backboard or rack installation
• Sold as a single unit with no additional quantity required

Compatibility

Designed as an OEM-style replacement and new-installation component for CAT 6 110-style wiring block applications in standard structured cabling systems.

Installation Notes

Installation should be performed by a licensed low-voltage or structured cabling technician in accordance with TIA-568 and local building codes. De-energize all active equipment connected to the cabling field before beginning termination work. Use a standard 110 punch-down tool to seat conductors into the block connectors. Verify pair assignments against the project wiring schedule before punching down to avoid cross-pairs.
