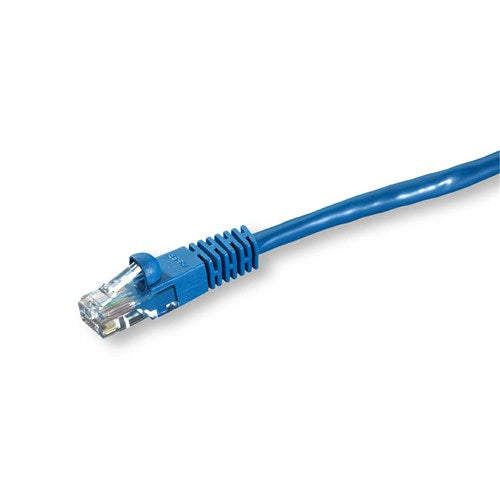

Signamax C5E-114BU-10FB Category 5e Patch Cord 10 ft.

Product Description

The Signamax C5E-114BU-10FB is a Category 5e patch cord with a blue snag-proof boot and a length of 10 feet. Designed for less demanding applications, it features a slim profile snag-free boot for plug latch protection and greater flexibility. The cords are 100% transmission tested and support Category 5e 100 m channel performance.

• Supports ANSI/TIA-568-C.2 transmission performance specifications
• 100% factory transmission tested per ANSI/TIA-568-C.2 to ensure category 5e 100 m channel performance
• ETL verified unscreened 24 AWG stranded cable

Product Highlights

This Signamax patch cord ensures reliable performance for network cabling systems. It is made with a 24 AWG stranded cable design to support a greater service life.

Product Information

Standard Information

• Brand: Signamax
• Manufacturer Part Number: C5E-114BU-10FB
• Country of Origin: China

Technical Specifications

• Catalog Number: C5E-114BU-10FB
• Manufacturer: Signamax
• Brand: Signamax
• Country of Origin: China
• UPC: 763474080854
• Item Type: Cat5e Molded 114 Series
• Gauge: 24 AWG
• Material: Copper
• Conductors: 4 Pair
• Length: 10 ft
• Shielding: Unshielded
• Type: Cable
• Boot Type: Snag-Proof
• Cable Type: UTP
• Category Type: Cat 5e
• Color: Blue
• Conductor Material: Copper
• Conductor Size: 24 AWG
• Conductor Type: Stranded
• Contact Material: Phosphor Bronze
• Contact Resistance: 20 mOhm
• Cord Length: 10 ft
• Insulation Material: Polyethylene
• Jacket Material: PVC
• Mating Cycle Life: 750 cycles
• Number of Conductors: 4
• Outside Diameter: 1/4 in
• Series: 114 Series
• Strands: 7
• Temperature Rating: 14 to 140 deg F
