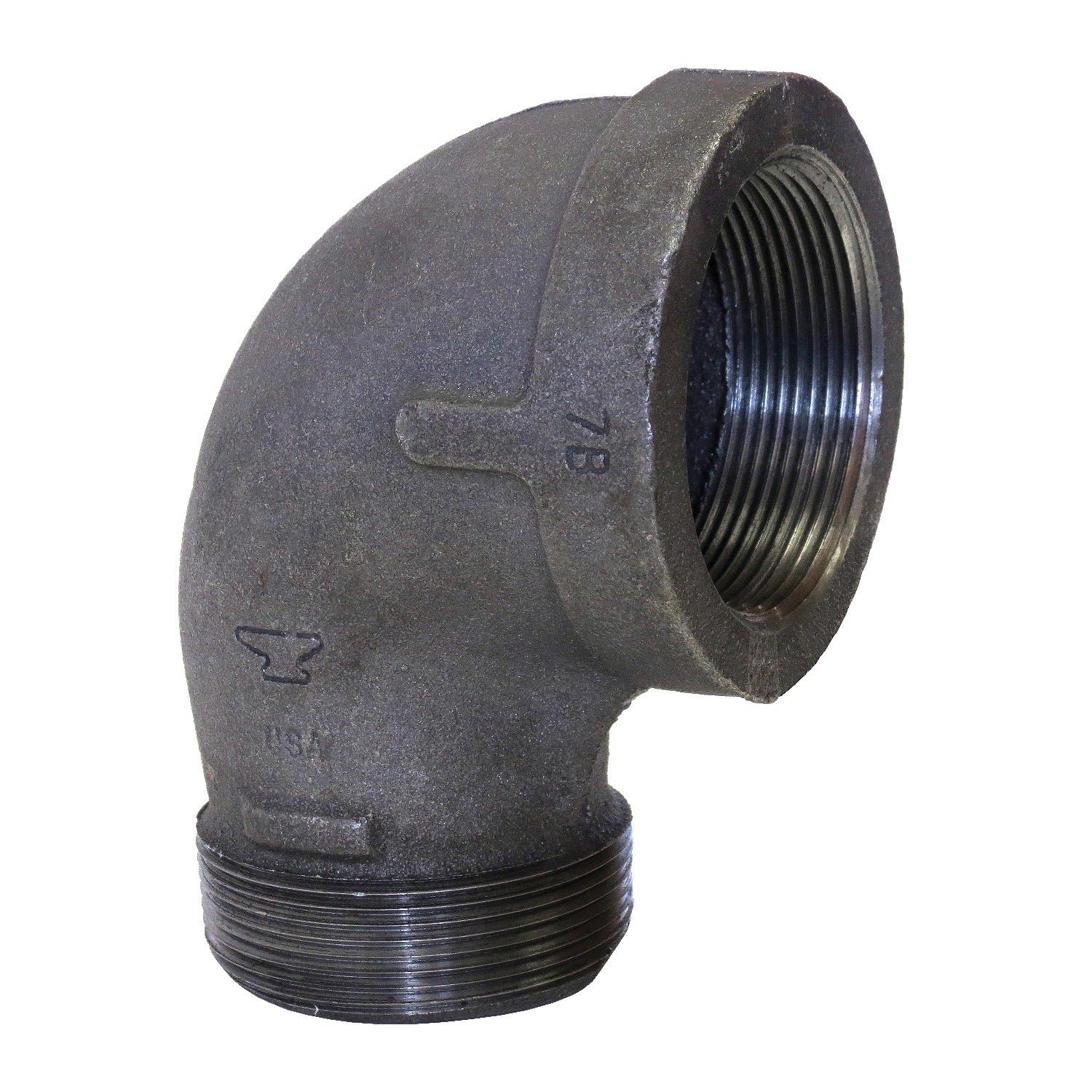

Sigma 810017210 Street Elbow 2 in Mnpt X Fnpt 150 Lb Malleable Iron

Product Description

The SIGMA 810017210 is a FIG 3103 standard street elbow designed to change flow direction in threaded pipe systems. It features a male NPT inlet on one end and a female NPT outlet on the other, allowing direct connection without a coupling. Rated at 150 lb, this fitting is manufactured from malleable iron with a black finish, making it suitable for gas, air, and water piping applications in both residential and commercial settings. Licensed plumbers and pipefitters install this fitting as part of standard threaded iron pipe assemblies.

This street elbow is used in threaded malleable iron pipe systems where a directional change is needed at a valve, appliance connection, or branch point. The 2-inch nominal size fits standard Schedule 40 and Schedule 80 black iron pipe. Common applications include natural gas distribution piping, compressed air lines, and hydronic heating systems. The MNPT x FNPT configuration eliminates the need for an additional nipple when transitioning direction, saving space in tight installations.

Key Features

• FIG 3103 standard street elbow geometry with MNPT inlet and FNPT outlet
• 150 lb pressure-rated malleable iron construction for threaded pipe systems
• 2-inch nominal pipe size for compatibility with standard iron pipe fittings
• Black finish suited for gas and air service applications
• Eliminates the need for a separate nipple at direction-change points

Compatibility

Designed as an OEM-style replacement fitting for 2-inch nominal threaded malleable iron pipe systems rated at 150 lb, compatible with standard NPT-threaded pipe and fittings.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable codes such as the IPC or IFGC. Apply an approved pipe thread sealant or PTFE tape to the male threads before assembly. Shut off and depressurize the pipe system completely before removing or installing any fittings. Do not over-torque threaded connections, as malleable iron fittings can crack under excessive force.

Technical Specifications

• Figure Number: FIG 3103
• Nominal Size: 2 inches
• End Style: MNPT x FNPT
• Pressure Rating: 150 lb
• Material: Malleable Iron
• Finish: Black

Standard Information

• Brand: SIGMA
• Manufacturer Part Number: 810017210
