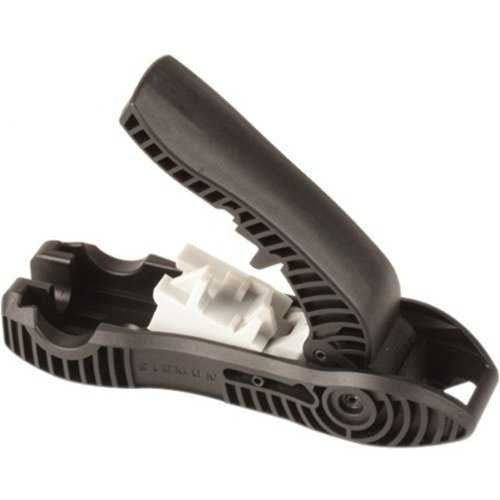

Siemon Company Z-TOOL-ZP Z-max Termination Tool

Product Description

The SIEMON COMPANY Z-TOOL-ZP is a dedicated hand tool designed for field-terminating Z-Max side entry plugs used in structured cabling installations. It provides the mechanical force and alignment required to properly seat and terminate conductors into Z-Max plug connectors, ensuring consistent, reliable terminations on the job. Licensed low-voltage installers and data cabling technicians rely on this type of precision tool to achieve correct conductor seating depth and avoid failed terminations that result in signal loss or link failures at patch points.

This tool is intended for use in commercial and residential structured cabling environments where Z-Max side entry field-terminated plugs are deployed. It is suited for new installation work, moves-adds-changes, and field repair scenarios where pre-terminated patch cords are not available. Data cabling technicians working at telecom closets, workstation outlets, or equipment racks will use this tool as part of the standard Z-Max plug termination workflow.

Key Features

• Specifically engineered for Z-Max side entry plug termination — not a general-purpose impact tool
• Enables consistent field terminations that meet structured cabling performance standards
• Single-unit packaging suitable for individual technician tool pouches
• Eliminates the need for improvised tooling that can damage plug housings or misalign conductors

Compatibility

Designed for use with SIEMON COMPANY Z-Max side entry field-terminated plugs. Consult SIEMON COMPANY documentation to confirm compatibility with specific Z-Max plug generations before use.

Installation Notes

This tool is installed and used by licensed low-voltage cabling technicians following TIA-568 structured cabling standards. De-energize any active patch panel or outlet circuit before terminating conductors. Follow the Z-Max plug manufacturer termination sequence precisely — incorrect conductor loading order before tool actuation can result in a failed crimp or damaged plug body. Do not substitute this tool with general-purpose RJ45 crimp tools, as the Z-Max side entry plug requires specific tooling geometry.
