Siemens WP6412RJB Uni-PAK Meter Stack 120 VAC

Product Description

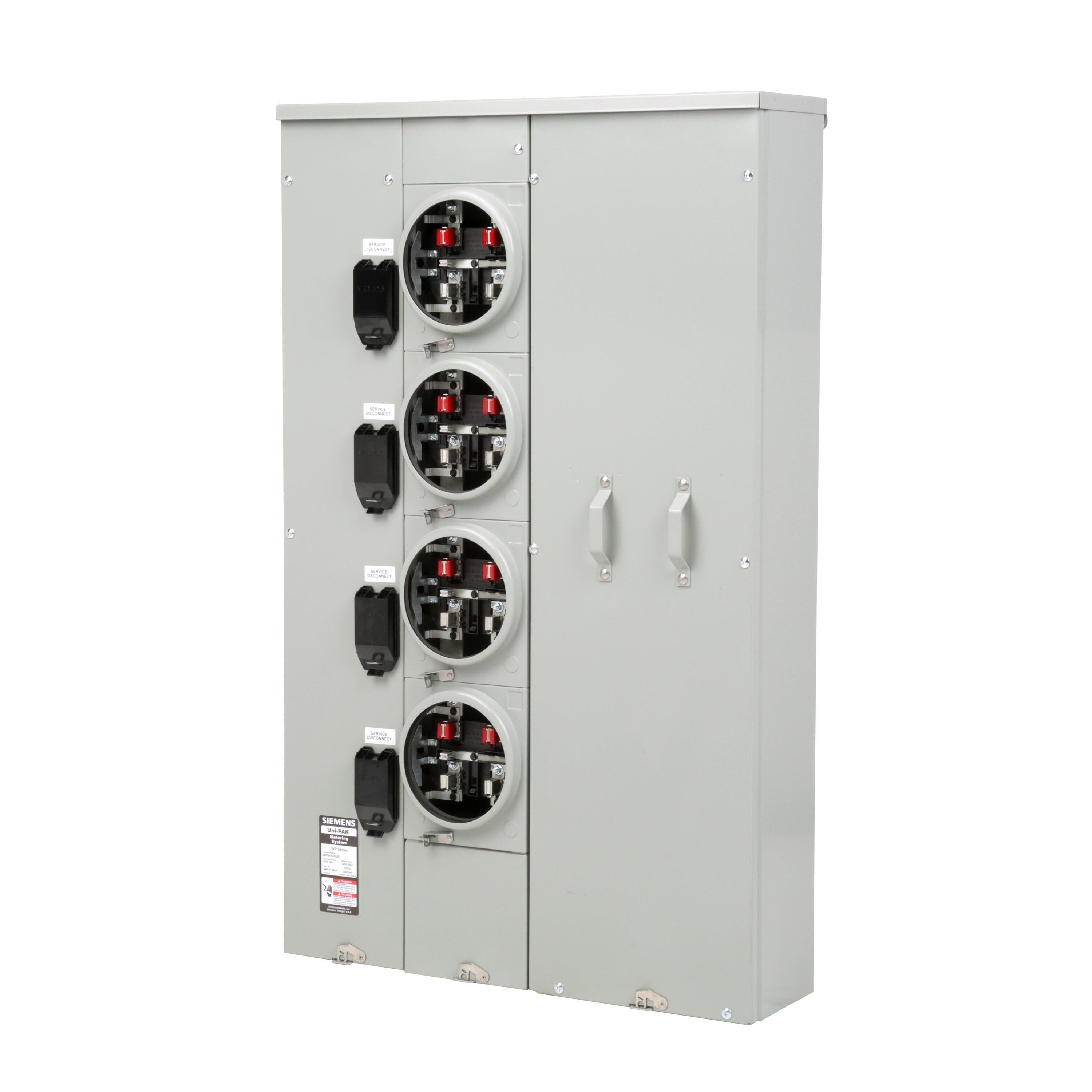

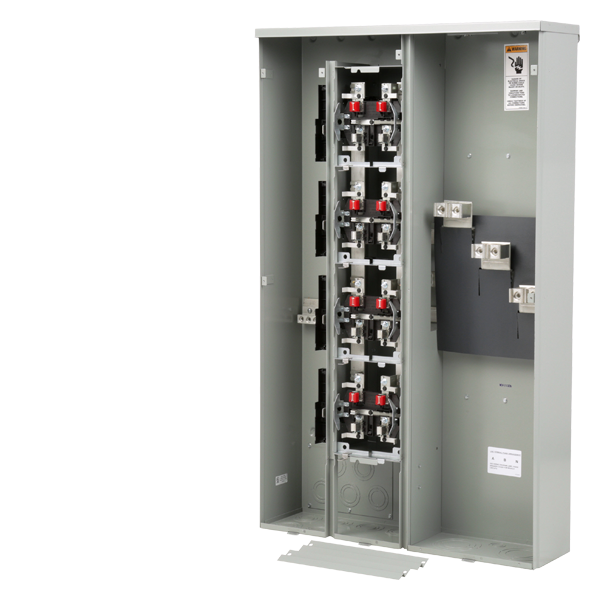

The Siemens WP6412RJB UNI-PAK meter stack is an 11-cutout, 3-wire insulated low voltage, self-contained socket with bottom/top feed. It operates at 120 V AC with a 600 A bus and a 225 A socket. Designed for 4 meter sockets, it accommodates (2) 2 AWG to 600 kcmil wire and features a ringless socket cover style.

• Individual split covers with barrel lock compatibility
• Completely self-contained meter centers
• Barriered, sealable compartment for unmetered current carrying parts

Product Highlights

This Siemens UNI-PAK meter stack offers flexibility and ease of installation for multiple position metering projects, suitable for both outdoor and indoor applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: WP6412RJB
• Country of Origin: USA

Technical Specifications

• Breaker Type: QP/MP-T/QPH/HQP/MP-HT/MP-MT/QS/QSH/QSHH/HQS/HQSH
• Bus Amps: 600 A
• Type: 11-Cutout 3-Wire Insulated Low Voltage
• Wire Size: (2) 2 AWG to 600 kcmil
• UNSPSC: 39121102
• Phase: 1
• Application: Service Entrance Equipment Applications
• Mounting Type: Surface
• Voltage Rating: 120
• Includes: 5th Jaw Kit and Lug
• Socket Type: Self-Contained
• Amperage: 600 Amp
• Applications: SERVICEENTRANCEEQUIPMENT
• Cable Entry: TOPANDBOTTOM
• Enclosure: RINGLESS
• Insulated?: Yes
• Number of Phases: 1 Phase
• Size: 4
• Voltage: 120/240 Volt
• Brand: Siemens
• Sub Brand: Uni-PAK
• Category: Meter Pak/Socket
