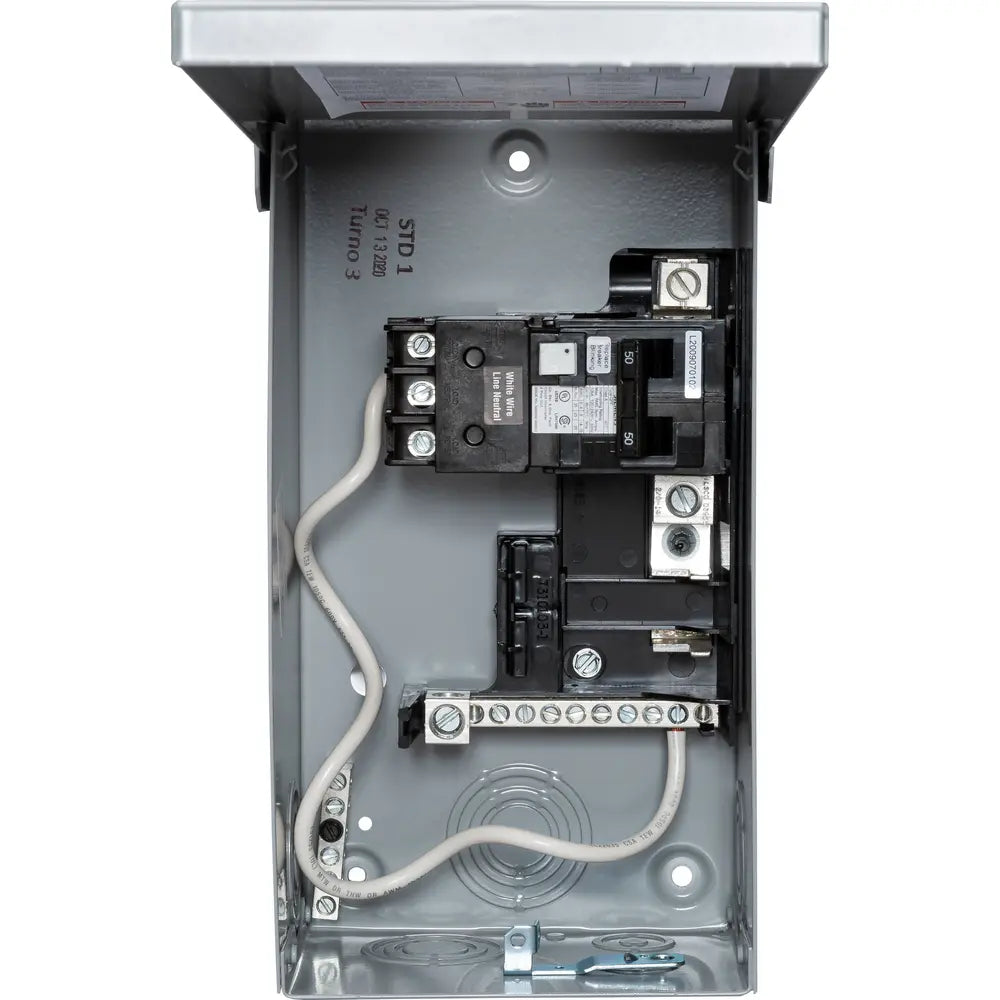

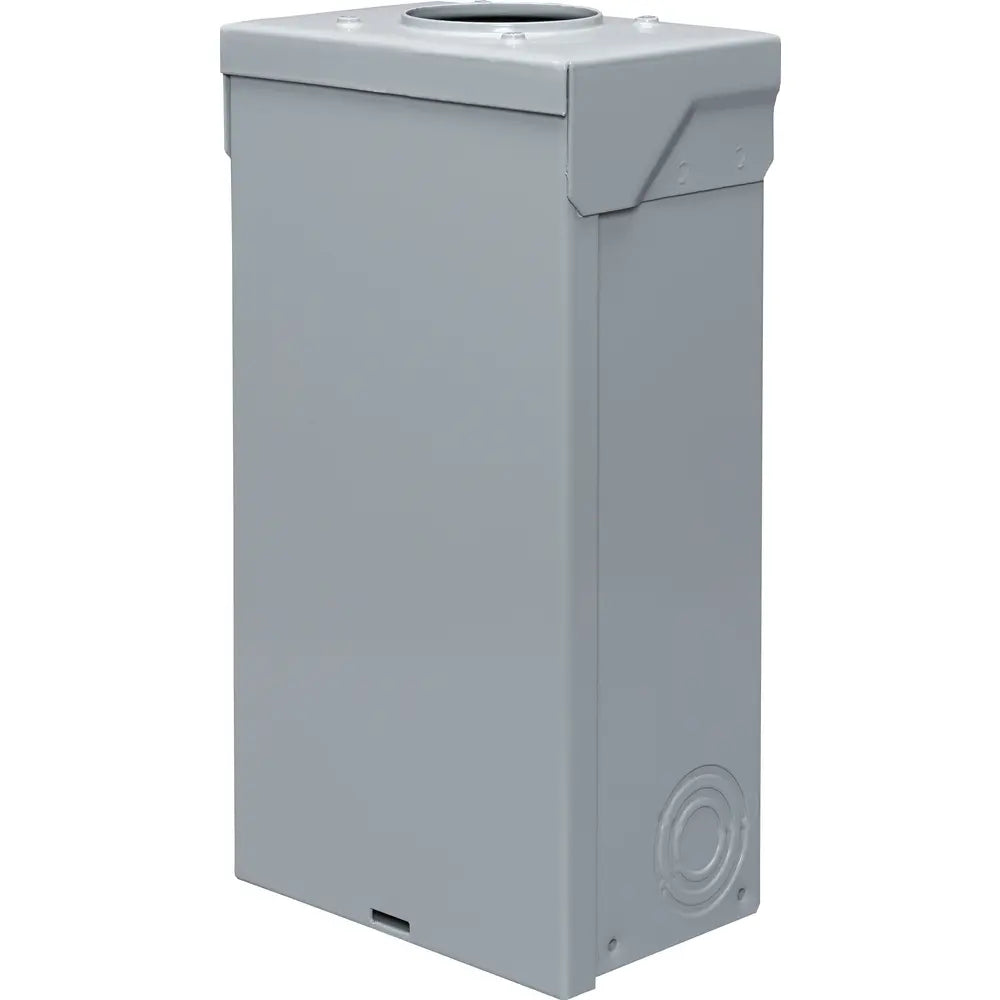

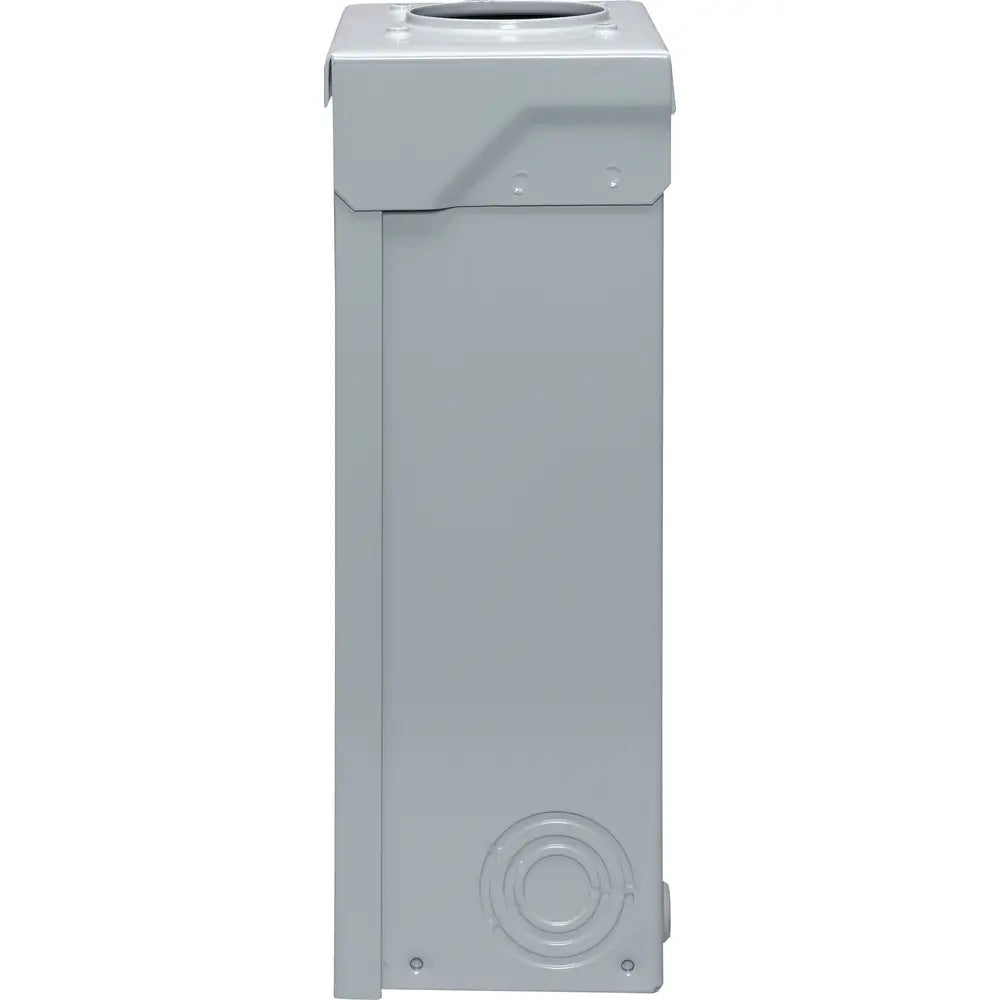

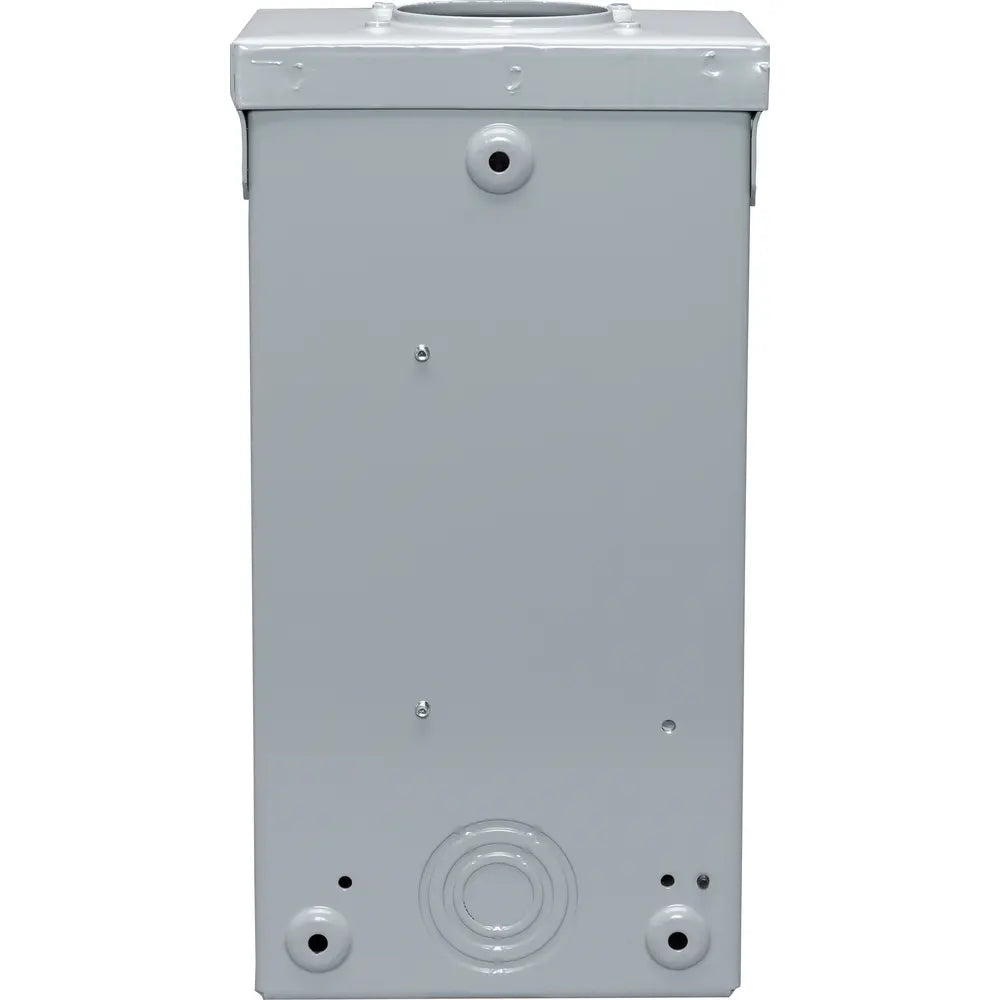

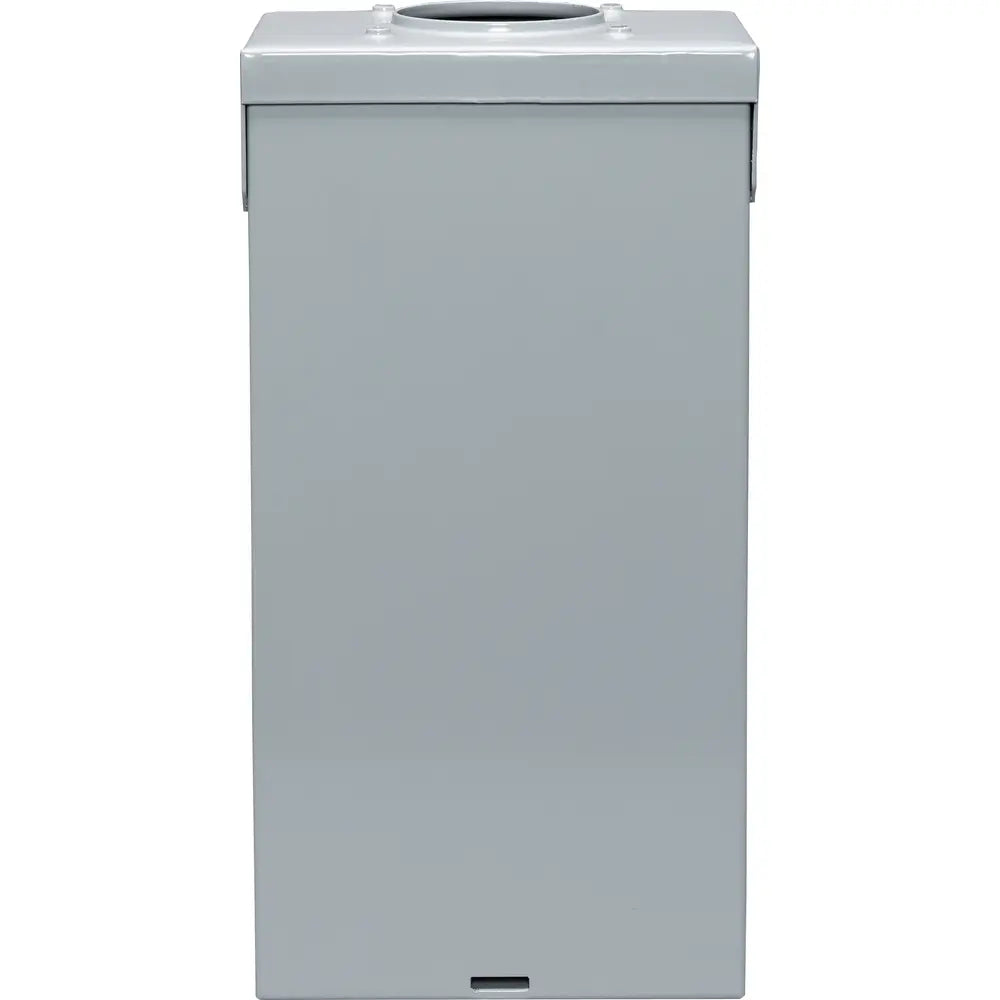

Siemens W0408L1125SPA50 Single-Phase Low Voltage Residential Specialty Load Center Spa Panel 50A NEMA 3R

Product Description

The Siemens W0408L1125SPA50 is a single-phase low voltage residential specialty load center designed for spa applications. It features a configuration of four spaces and eight circuits, making it suitable for residential use. The panel operates at a voltage rating of one hundred twenty to two hundred forty volts and supports an amperage rating of fifty amperes.

• Four spaces with eight circuits
• Voltage rating of 120/240V
• Meets NEMA 3R standards

Product Highlights

This load center is intended for surface mounting and has a UL standard, ensuring reliability and safety in residential installations.

Product Information

Standard Information

• Type: Load Centers
• Standard: UL

Technical Specifications

• Depth: 4.5 inches
• Height: 12.25 inches
• Width: 6 inches
• Weight: 8.07 pounds
• NEMA Rating: NEMA 3R
• Voltage Rating: 120/240 VAC
• Amperage Rating: 50 amperes
• Interrupt Rating: 22 kAIC
• Number of Spaces: 4
• Wiring Configuration: 3-Wire
• Country of Origin: MX
