Siemens UA4719-YJCA Talon 4-Position Type UAS8/9 Multi Position Meter Socket 600 VAC 200 A

Product Description

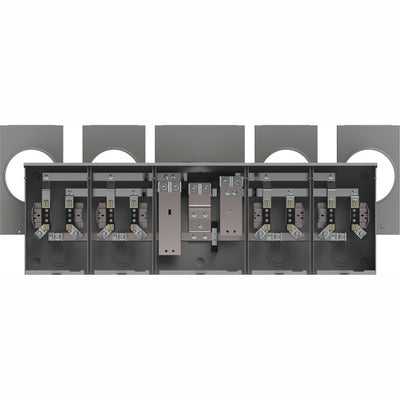

The Siemens UA4719-YJCA Multi Position Meter Socket is a 4-position, Type UAS8/9 unit designed for residential applications. Rated for 600 VAC and 200 A, 1 phase, it features a durable NEMA 3R enclosure and supports both overhead and underground feeds. This meter socket includes a large HD opening hub and ringless cover, making it suitable for reliable power distribution.

• Glass filled polyester block construction
• Lay-in line side lug
• Steel construction

Product Highlights

Durable NEMA 3R enclosure accommodates overhead and underground feeds.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: UA4719-YJCA
• Country of Origin: Mexico

Technical Specifications

• Phase: 1
• UNSPSC: 39121102
• Hub Size: 4.281 inches
• Wire Size: (2) 6 AWG to 350 kcmil, 1/0 AWG to 600 kcmil
• Application: Residential
• Mounting Type: Surface
• Terminal Type: Line/Load Lug
• Enclosure Type: NEMA 3R
• Voltage Rating: 600 VAC
• Type: 4-Position Type UAS8/9
• Hub Type: Large HD Opening
• Cover Type: Ringless
• Amperage Rating: 200 A
• Country of Origin: Mexico
• Cable Entry: Overhead/Underground
• Enclosure Material: Steel
• Operating Temperature: Average Ambient
