Siemens S3042B3125 ES LC MB 30S/42C 3PH

Product Description

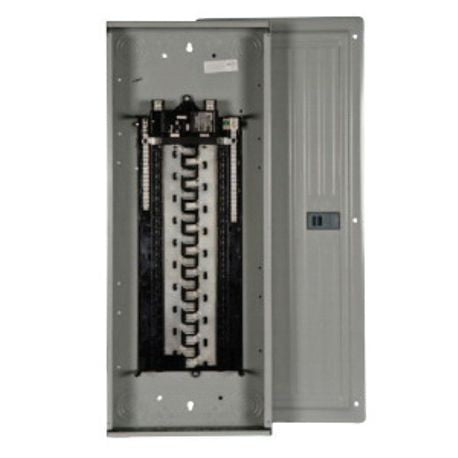

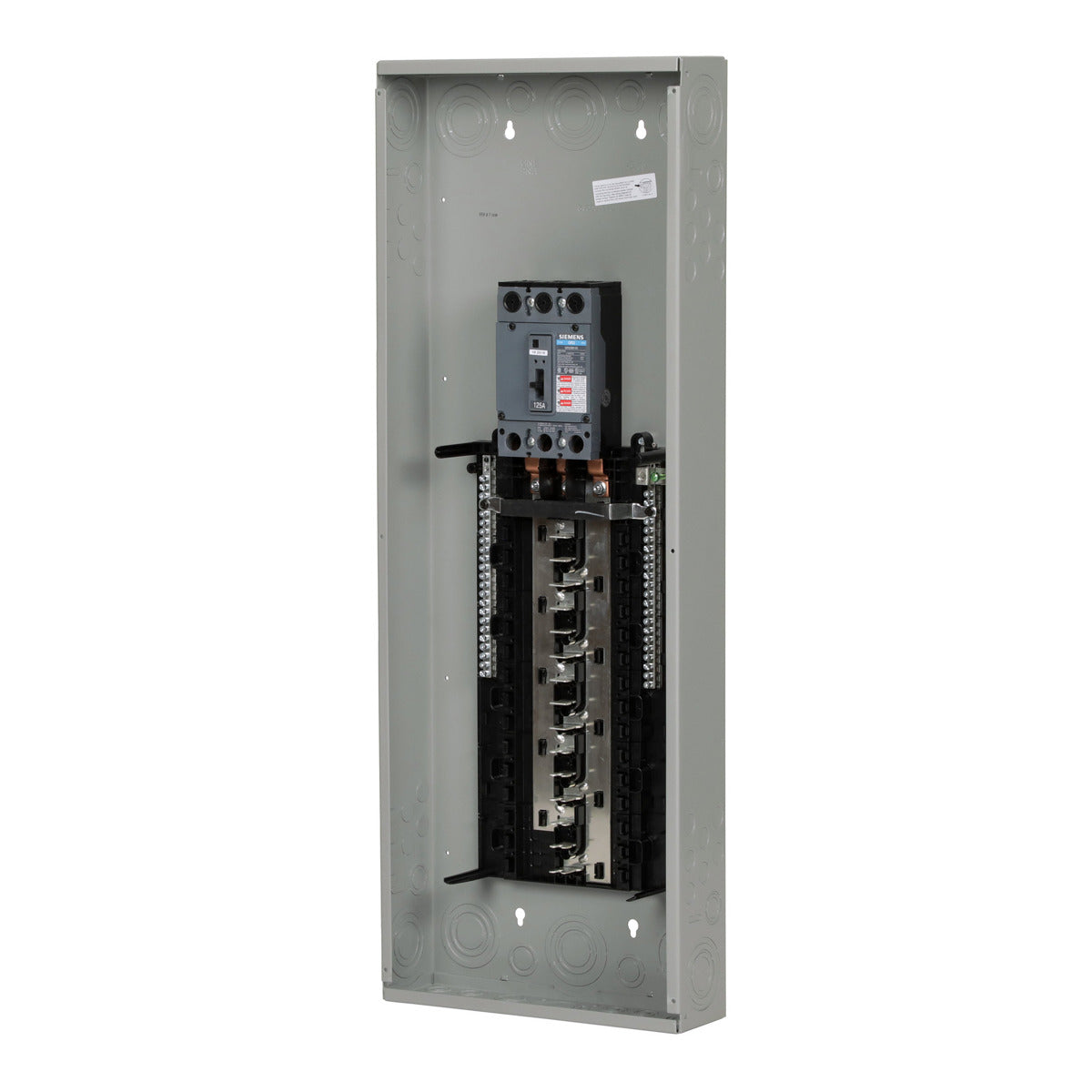

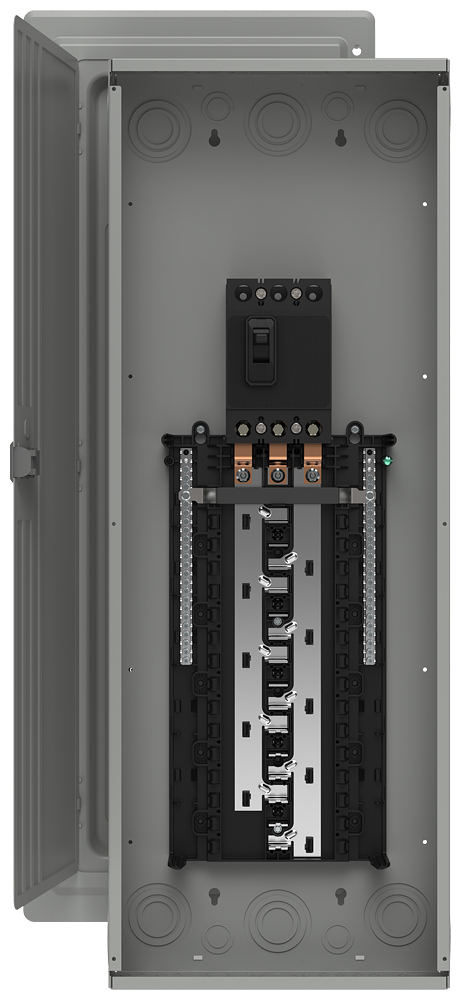

The Siemens S3042B3125 is a low voltage load center designed for residential and light commercial electric distribution. It is equipped with a factory-installed main breaker and offers thirty 1-inch spaces, allowing for a maximum of forty-two circuits. This load center supports a 3-phase 4-wire system rated for 120/240V or 120/208V with a 125A interrupt rating. It is built with an aluminum bus, gray trim, and a NEMA type 1 enclosure suitable for indoor installations.

• 30 one-inch spaces for circuit flexibility
• 3-phase configuration for enhanced performance
• Suitable for indoor residential applications

Product Highlights

The Siemens S3042B3125 load center is ideal for managing electrical distribution in various settings. Its robust design features aluminum bus for reliability and meets UL standards.

Product Information

Standard Information

• Catalog Number: S3042B3125
• Manufacturer: Siemens

Technical Specifications

• Voltage Rating: 120/240 Volts
• Amperage Rating: 125 Amps
• Interrupt Rating: 22 kA
• Enclosure Type: NEMA Type 1
• Weight: 45 lbs.
• Dimensions: 39.5 inches (Length) x 15.5 inches (Width) x 5 inches (Height)
• Country of Origin: Mexico
• Number of Spaces: 30
