Siemens S2440L1200 Es Lc Ml 24s/40c 1ph REPLACEMENT SN2448L1200

Product Description

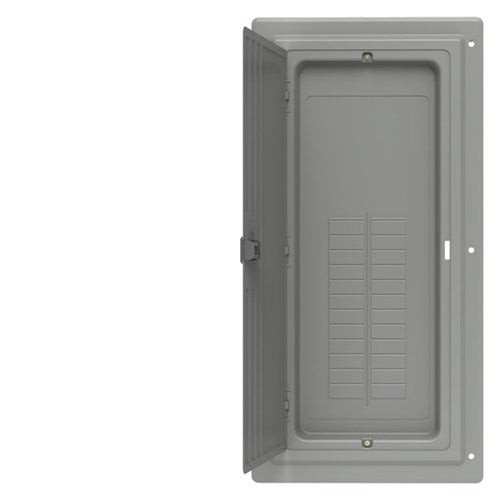

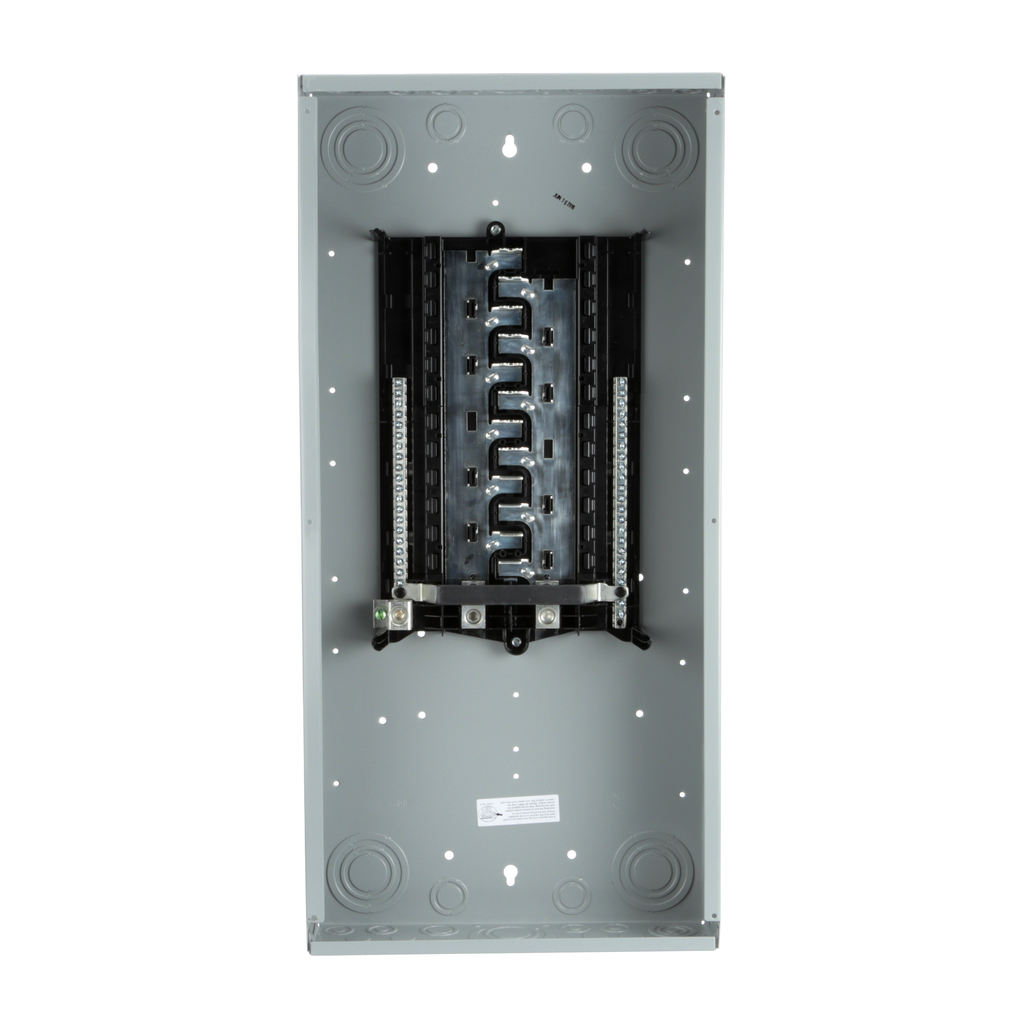

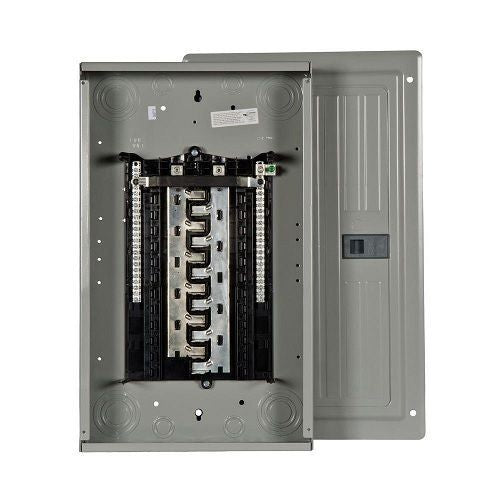

The Siemens S2440L1200 low voltage ES series load center features a main lug with 24 1-inch spaces, allowing a maximum of 40 circuits. This 1-phase 3-wire system is rated 120/240V at 200A with a 100kA interrupt rating. It has an aluminum bus, gray trim, and a NEMA type 1 enclosure for indoor use and is replaced by SN2448L1200.

• Features a main lug with 24 1-inch spaces, allowing max 40 circuits
• Rated 120/240V(200A) with 100kA interrupt
• NEMA type 1 enclosure for indoor use

Product Highlights

This Siemens load center is ideal for residential and light commercial electrical distribution, offering a reliable and versatile solution for various applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: S2440L1200
• Country of Origin: MEX

Technical Specifications

• Type: ESSERIESASSEMBLEDLOADCENTER
• Brand: Siemens
• Voltage: 120/240 Volt
• Amperage: 200 Amp
• Enclosure: TYPE1
• Sub Brand: UL
• Bus Rating: 200 A
• Cover Type: ES Series
• Applications: RESIDENTIALANDLIGHTCOMMERCIALELECTRICDISTRIBUTION
• Mounting Type: FLUSH / SURFACE
• Interrupt Rating: 100 kAIC
• Number of Phases: 1 Phase
• Number of Spaces: 24
• Current Rating: 200 A
• Manufacturer Part Number: S2440L1200
• Series: ES Series
• Wiring Configuration: 3-Wire
• Number of Circuits: 40
• Standard & Approvals: UL File No. E10703
• Application: Residential Applications
• Enclosure Type: NEMA 1
