Product Description

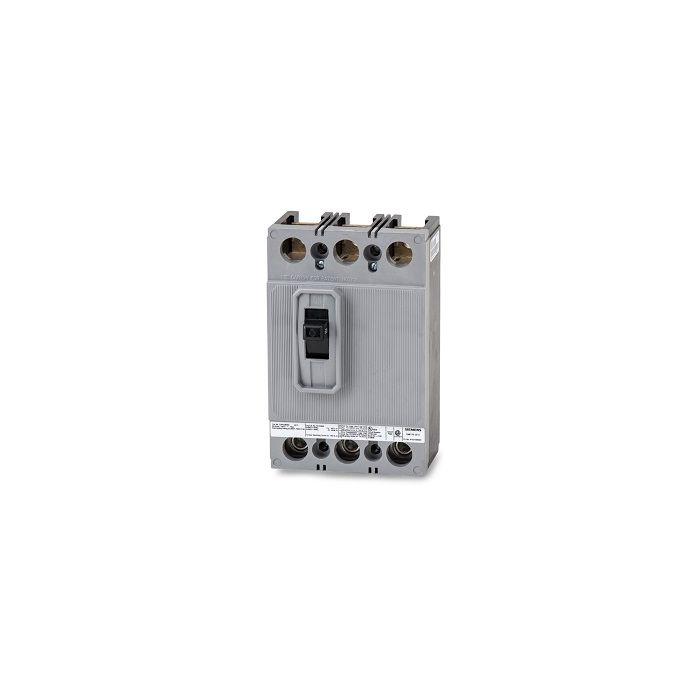

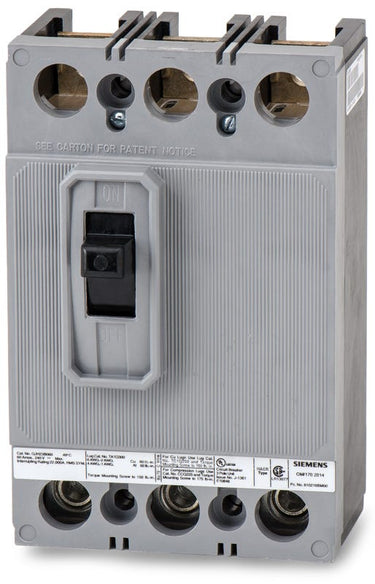

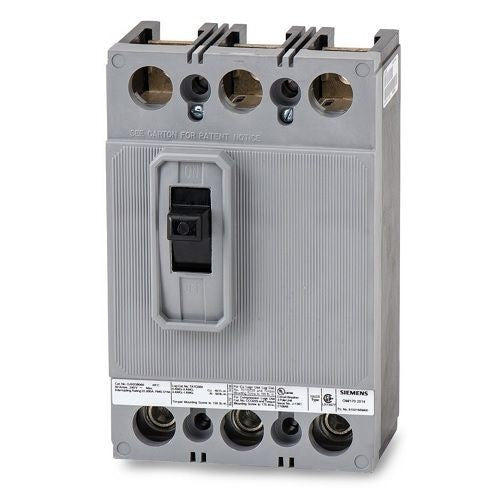

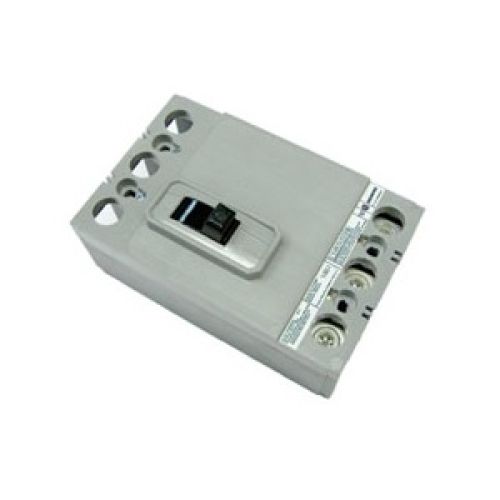

The SIEMENS QJH23B200 is a 200A 240V 3P circuit breaker. It is built for demanding industrial environments and features fixed thermal-magnetic LI protection. This QJ-frame breaker features a bolt-on mounting style compatible with Siemens P1, P2, and P3 panelboards, SB switchboards, and motor control centers. With a 22kAIC rating at 240V, it handles substantial fault currents.
- Current rating of 200 Amps
- Load side lug terminal connection
- Interrupt rating of 22 Kilo-Amps
Product Highlights
The Siemens QJH23B200 is HACR rated, reverse feed capable, and includes a trip-free mechanism.
Product Information
Standard Information
-
Brand: SIEMENS
-
Manufacturer Part Number: QJH23B200
Technical Specifications
-
Current rating: 200 Amps
-
Voltage: 240V
-
Poles: 3
-
Brand: Siemens
-
Series: QJH
-
Part Number: QJH23B200-R
-
Amperage: 200A
-
AIC Rating: 22kA @ 240VAC
-
Mounting Style: Bolt-On
-
Terminal Type: Lugs
-
For Use With: Siemens P1, P2, P3 Panelboards, SB Switchboards, Motor Control Centers, Meter Centers
-
Trip Technology: Thermal Magnetic
-
Trip Function Code: LI
-
Trip Function: Long-Time, Instantaneous
-
Trip Adjustability: Fixed Thermal, Fixed Magnetic
-
Wire Gauge: 6 AWG - 300 kcmil
-
Max Wire: 300 kcmil
-
Min Wire: 6 AWG
-
Available Options: Padlock Attachment
-
Accessories: Load Side Lugs (TA1Q300)
-
Standards: CSA C22.2 No. 5, UL 489
-
Approval: CSA, UL
-
Temp Rating: 40C
-
Construction Features: HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism
-
Voltage Type: AC
-
Frame Type: QJ
-
Frame: QJH2/225A
-
Frequency Rating: 50/60 Hz
-
Interrupt Rating: 22 kA
-
Number Of Poles: 3
-
Phase: 3
-
Temperature Rating: 40 deg C
-
Trip Type: Thermal/Magnetic
-
Type: Type QJH2 Low Voltage
-
Voltage Rating: 240 VAC
-
Wire Size: 6 AWG to 300 kcmil, 4 AWG to 300 kcmil
-
Standard & Approvals: HACR Rated
-
Amperage Rating: 200 A
-
Application: General applications
-
Connection Type: Load Lug
