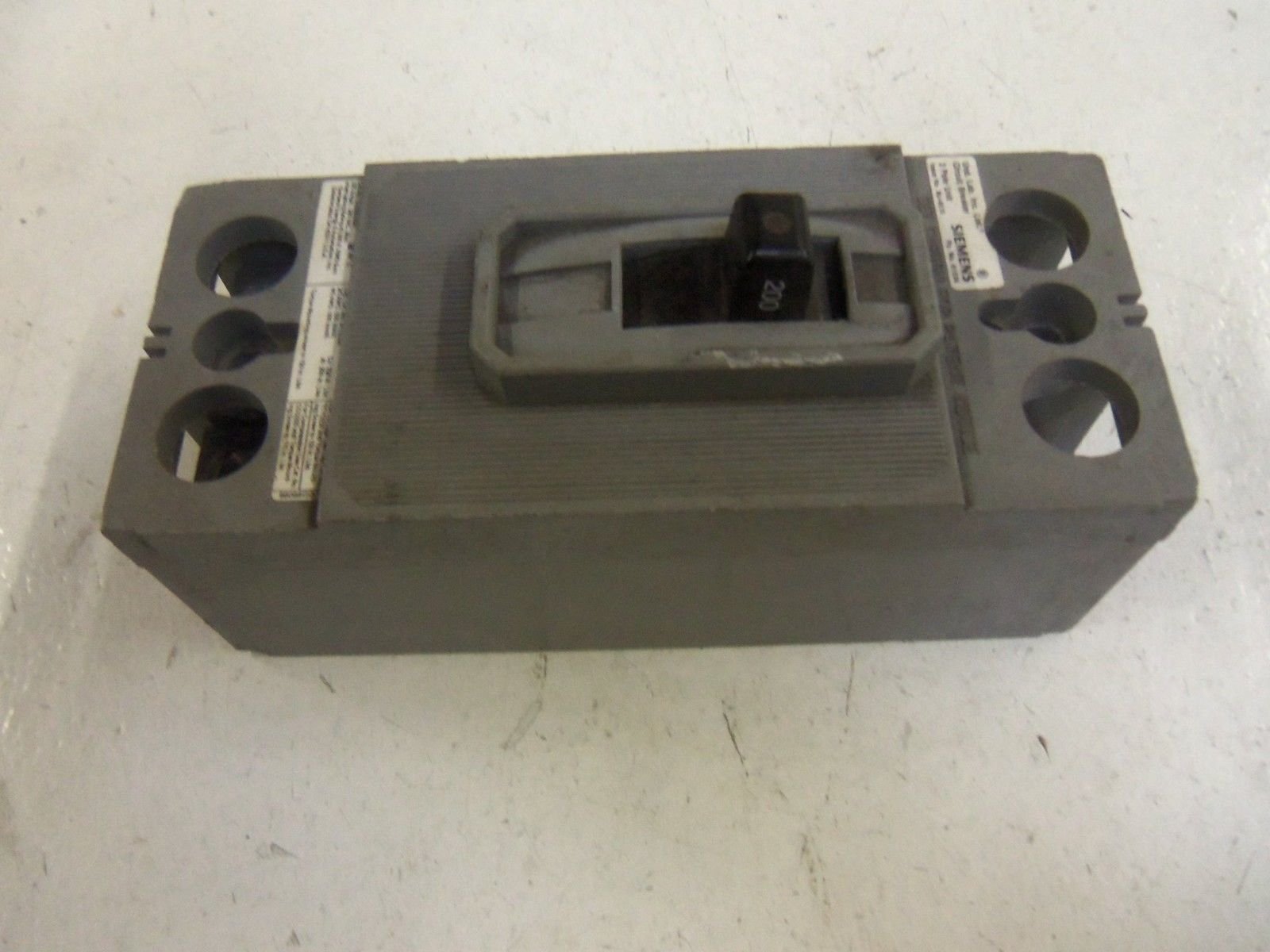

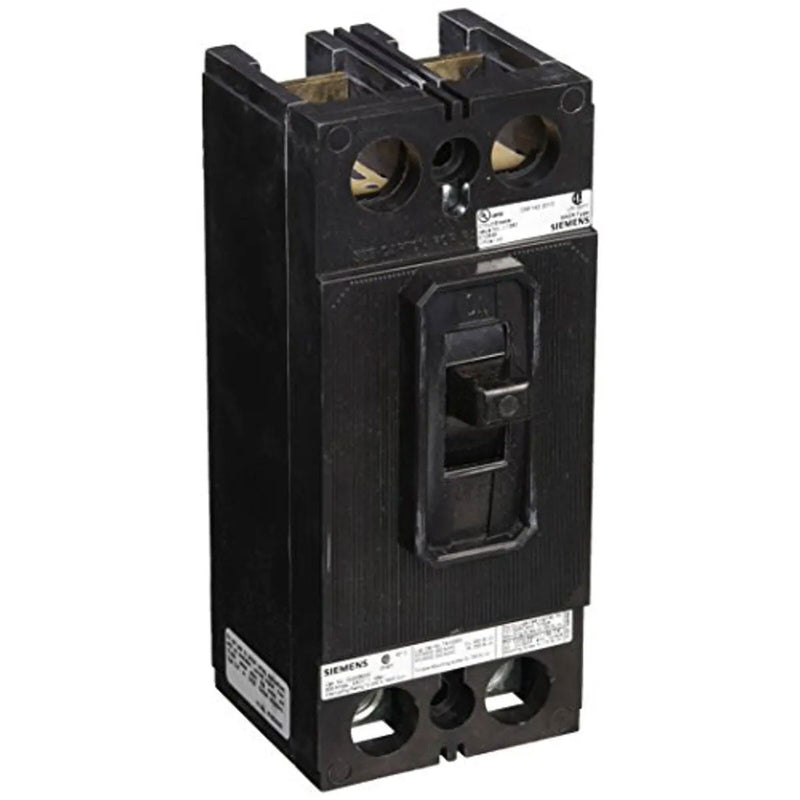

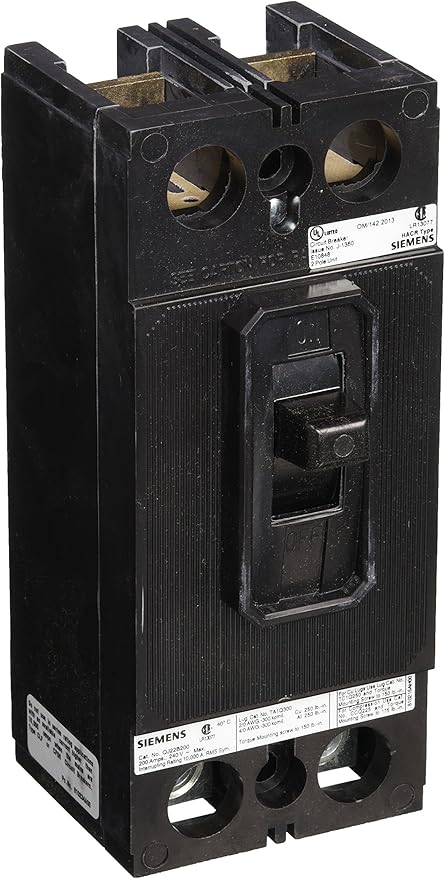

Siemens QJ22B200 Molded Case Circuit Breaker 200A

Product Description

The SIEMENS QJ22B200 is a molded case circuit breaker designed for protection of branch and feeder circuits. It is rated at 240 VAC and 200A with a 10kA interrupting rating at 240 VAC (UL). It is suitable for use as mains in load centers, lighting panel boards, and metering centers.

• HACR Rated
• Thermal and Fixed Magnetic Trip
• Suitable for P1/P2/P3/P4/P5 Panelboard

Product Highlights

This Siemens circuit breaker features a QJ frame with bolt-on mounting and provides reliable overcurrent protection.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: QJ22B200

Technical Specifications

• Approval: UL 489, CSA C22.2
• Interrupting Rating: 10 Kiloampere at 240 VAC (UL)
• Manufacturer Name: Siemens
• Number Of Poles: 2
• Product UPC: 783643193741

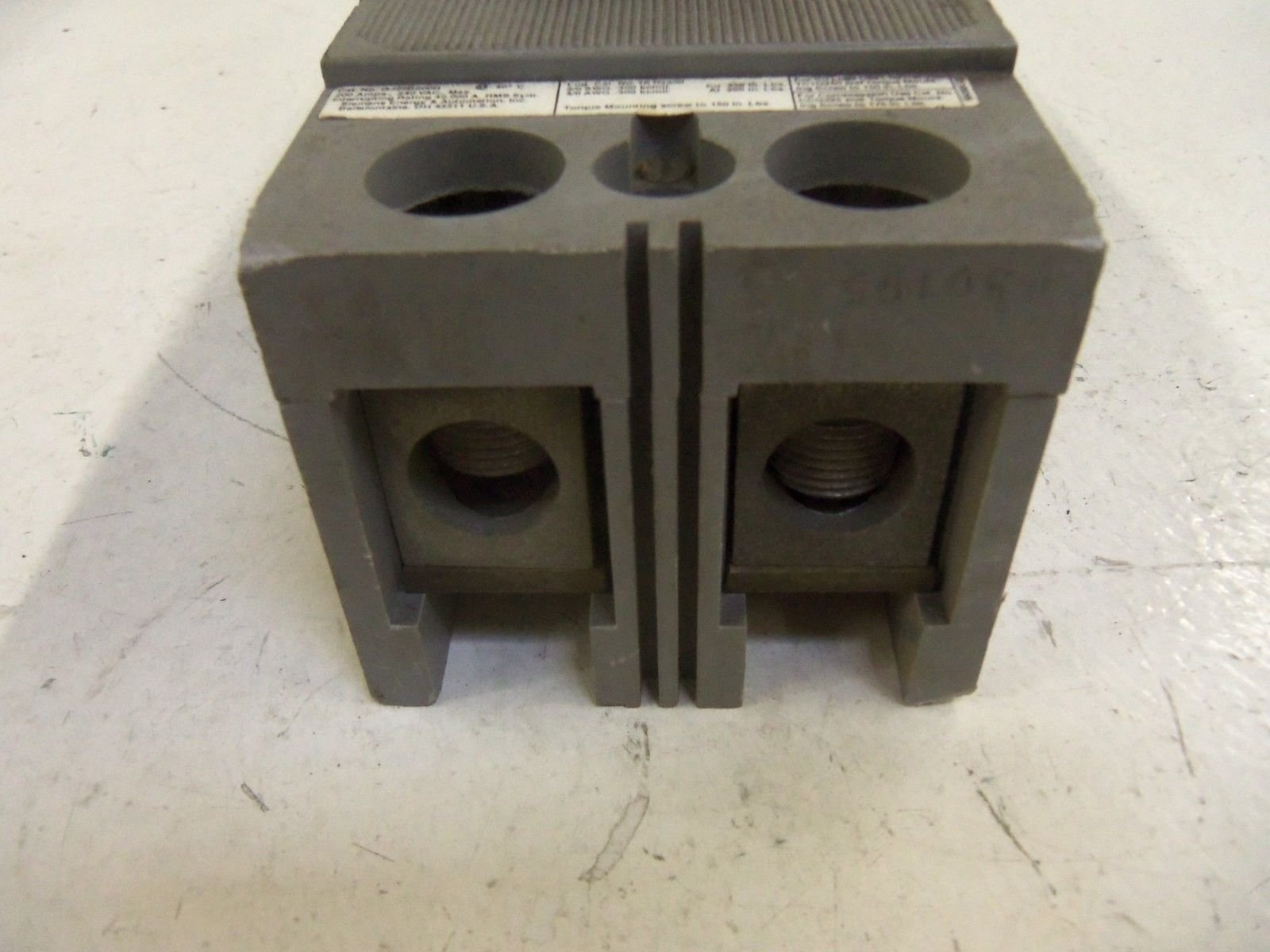

• Terminal Type: Load Lug
• Type: Molded Case, Thermal and Fixed Magnetic
• Used On: P1/P2/P3/P4/P5 Panelboard
• Wire Size: 6 AWG to 300 KCMIL (Copper), 4 AWG to 300 KCMIL (Aluminum)
• Brand: SIEMENS
• Model / MPN: QJ22B200
• Product Type: CIRCUIT_BREAKER
• Voltage Rating: 240 VAC
• Interrupt Rating: 10 kA
• Phase: 1
• Frequency Rating: 50/60 Hz
• Frame: QJ2/225A
• Trip Type: Thermal/Magnetic
• Enclosure Type: NEMA 1/3R
• Amperage Rating: 200 A
• Connection Type: Load Lug
• Temperature Rating: 40 deg C
• Application: General Applications
• Current Rating: 200 Amps
• Circuit Breaker Type: Standard
• Mounting Type: Plug-In Mount
• Voltage: 240 Volts
• Part Number: QJ22B200
• Item model number: QJ22B200
• Item Package Quantity: 1
• Number Of Pieces: 1
• Included Components: QJ22B200
• Batteries Included?: No
• Batteries Required?: No
• Manufacturers: Siemens
• Sub-Category: Molded Case
• Family: QJ Frame
• AIC Rating: 10kA@240V
• Functions: LI - Long-Time and Instantaneous
• Poles: 2
• Standard & Approvals: HACR Rated
