Siemens QAA2212.FWSN Room Temperature Sensor (1 Pack)

Product Description

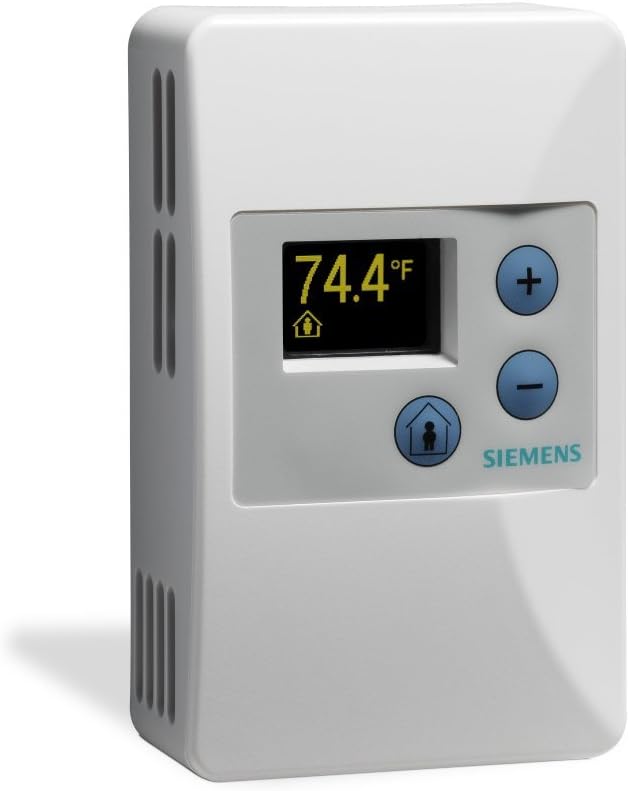

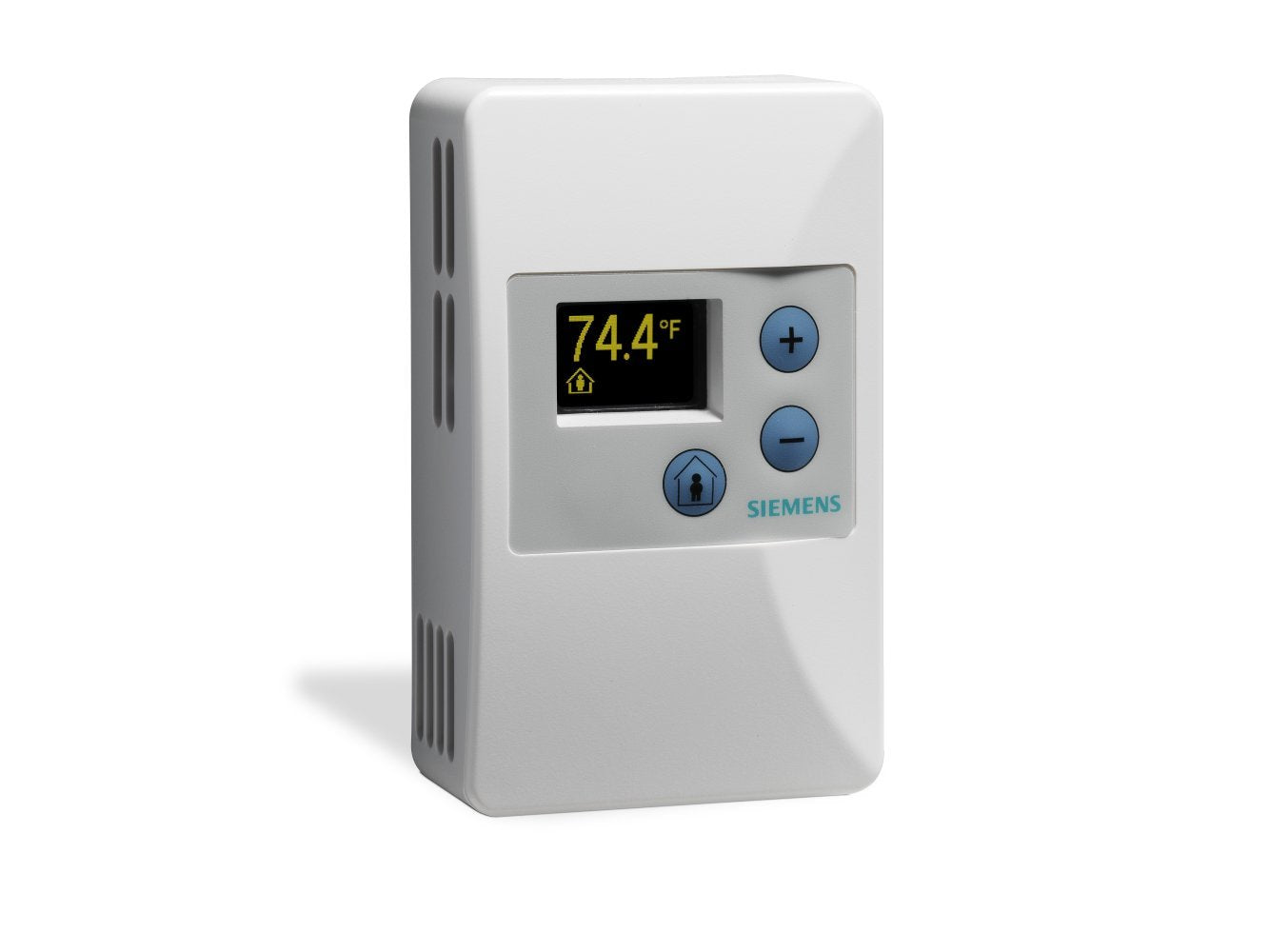

Siemens QAA2212.FWSN is a wall-mounted room temperature sensor that uses a 1 kOhm platinum RTD (385 alpha) element for HVAC and building automation applications. The unit provides RTD resistance output and field-selectable analog outputs, an integrated display with setpoint adjustment and override, and ships with installation hardware. It operates from 18 to 36 Vdc or 24 Vac ±20% and measures approximately 2.75 x 1.5 x 4.5 inches, weighing about 9.6 ounces.

• 1 kOhm platinum RTD (385 alpha) sensing element with RTD resistance output and selectable analog outputs (0-5 V, 0-10 V, 4-20 mA).
• Integrated display, setpoint adjustment and override; configurable OLED/readout for room conditions and set point.
• Wall/surface mounting with included installation hardware; terminal block connection; enclosure rated NEMA 1.

Product Highlights

1 kOhm Pt RTD sensor; selectable analog outputs; integrated display with setpoint and override; 18–36 Vdc or 24 Vac ±20% supply.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: QAA2212.FWSN
• Country of Origin: China

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: QAA2212.FWSN
• Model: QAA2212.FWSN
• Sensor Element: 1 kOhm platinum RTD (385 alpha)
• Output Signal: RTD resistance; field-selectable analog outputs: 0-5 V, 0-10 V, 4-20 mA
• Display: Integrated display (configurable OLED/readout)
• Setpoint: Yes (adjustable)
• Override: Yes
• Mounting Type: Wall mount / surface mount (fits 2 in x 4 in electrical box or drywall)
• Connection Type: Terminal block
• Connection/Terminal Type: Terminal block
• Enclosure Material: Plastic
• Enclosure Rating: NEMA 1
• Supply Voltage: 18 to 36 Vdc or 24 Vac ±20%
• Temperature Range: 13°F to 95°F (-10°C to 35°C)
• Accuracy: ±0.54°F (±0.3°C) at 32°F (0°C)
• Dimensions: 2.75 x 1.5 x 4.5 inches
• Weight: 9.6 ounces
• Included Components: Sensor, installation hardware, mounting instructions
• Application: Room temperature monitoring and HVAC/building automation control
• Certifications: UL916
