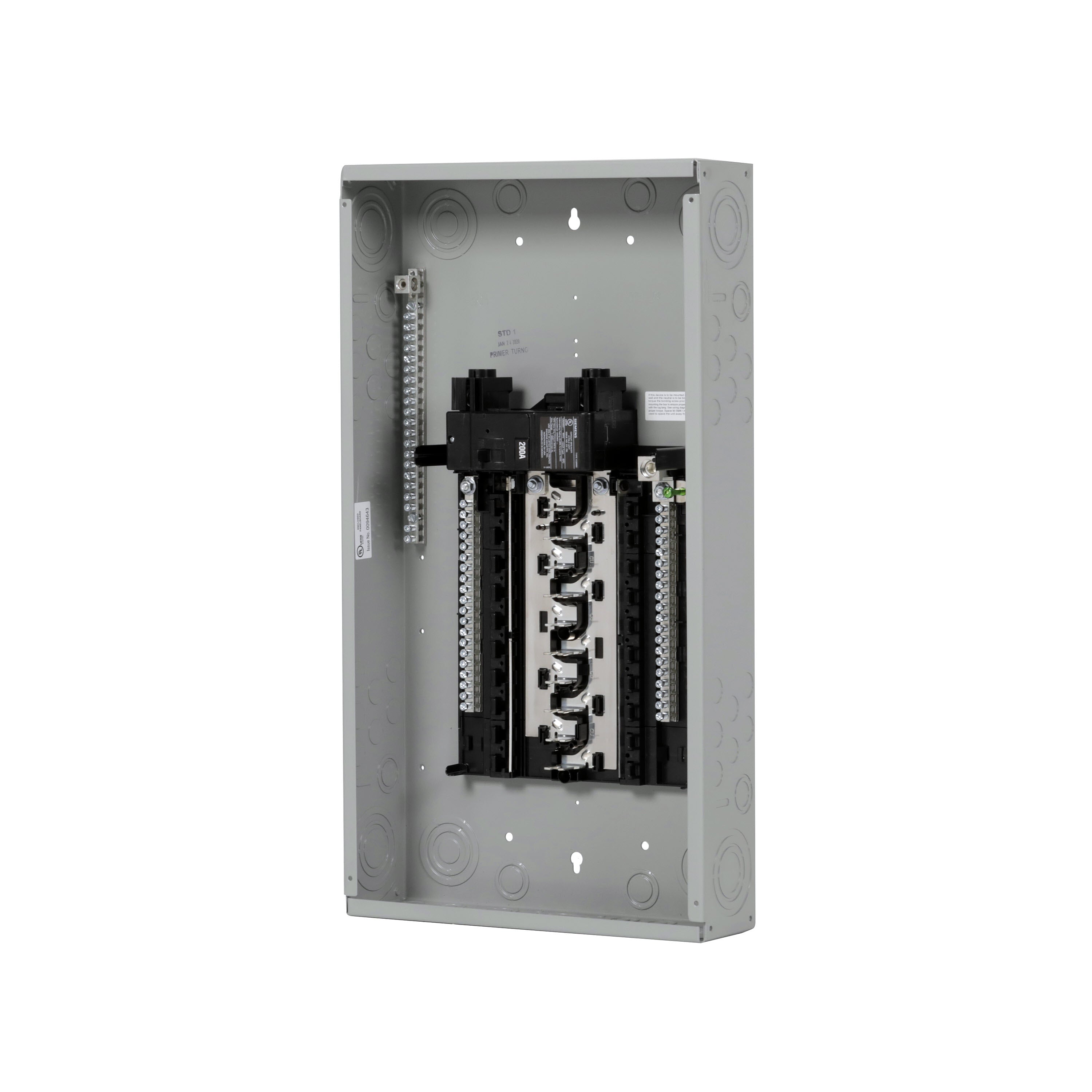

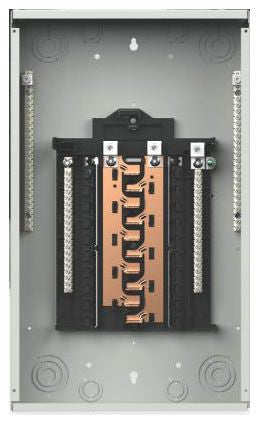

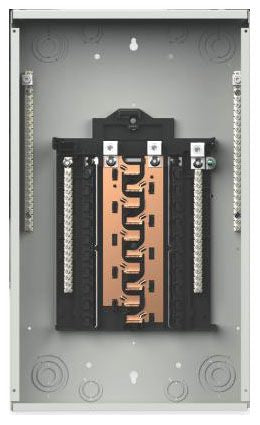

Siemens PN2040B1200C Load Center 200A 20 Spaces 40 Circuits

Product Description

The Siemens PN2040B1200C is a 200 amp main breaker load center designed for indoor use. It features 20 one-inch spaces, allowing for a maximum of 40 circuits. This load center operates on a one-phase, three-wire system rated for 120/240 volts, equipped with a copper bus and a NEMA type one enclosure.

• Features 20 one-inch spaces for circuits.
• Rated for a maximum of 200 amps.
• Indoor application with NEMA type one enclosure.

Product Highlights

This Siemens load center is engineered for residential and light commercial electric distribution needs. It includes plug-on neutral capabilities for quick installation and comes with two factory-installed ground bars.

Product Information

Standard Information

• Catalog Number: PN2040B1200C
• Manufacturer: Siemens

Technical Specifications

• Amperage Rating: 200
• Voltage Rating: 120/240
• Interrupt Rating: 22 kAIC
• Number of Spaces: 20
• Number of Circuits: 40
• Enclosure Type: NEMA 1
• Country of Origin: Mexico
• GTIN: 00804766702778
