Siemens P3030B1100CU Load Center, 100A 30S/30C Main Breaker

SIEMENS
Brand: SIEMENS
SKU: P3030B1100CU
Availability: Out Of Stock
$297.49
$297.49
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

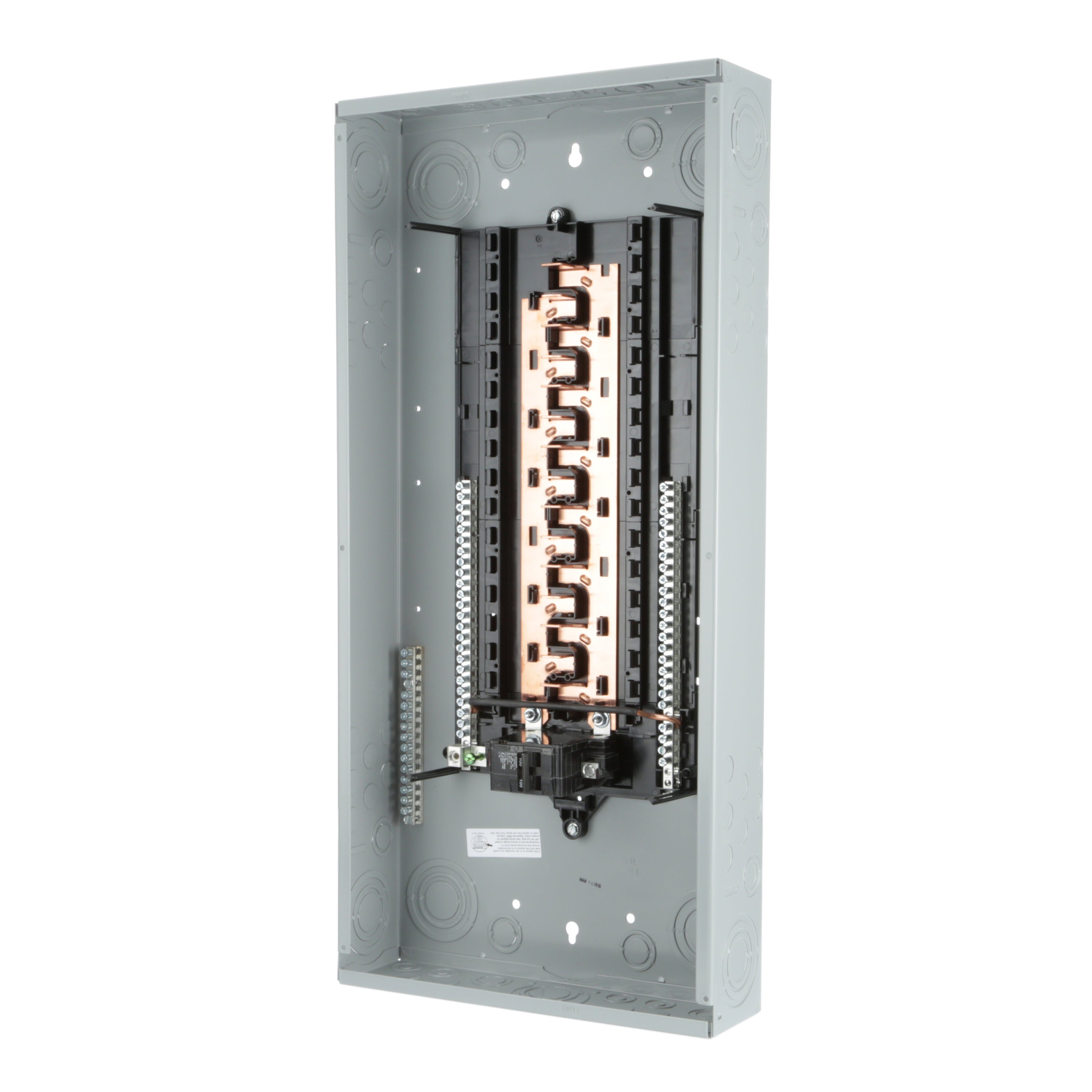

The Siemens P3030B1100CU low voltage PL Series load center has a factory-installed main breaker with 30 1-inch spaces allowing a maximum of 30 circuits. This is a 1-phase 3-wire system rated 120/240V (100A) 22kA interrupt. It is suitable for residential and light commercial electrical distribution.

  • Invertible for bottom feed application
  • All devices are provided with 2 factory installed ground bars
  • Combination head screw on the neutrals, ground, trim, upper pan, and bond screw provide installation flexibility

Product Highlights

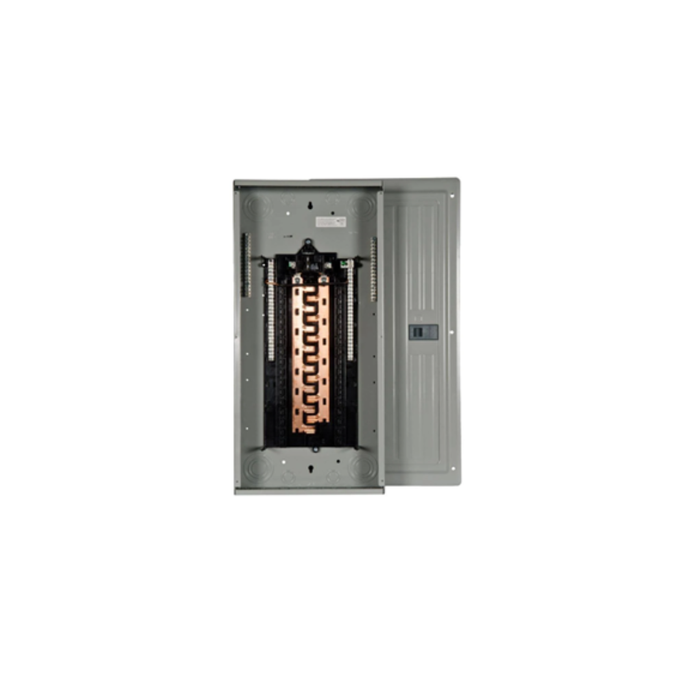

The load center features a copper bus, interchangeable main, gray trim, and a NEMA type 1 enclosure for indoor use. Combination mounting.

Product Information

Standard Information

  • Brand: SIEMENS
  • Manufacturer Part Number: P3030B1100CU
  • Country of Origin: MX
Technical Specifications
Application
RESIDENTIALANDLIGHTCOMMERCIALELECTRICDISTRIBUTION
Breaker Type
MBK100A
Bus Rating
100 A
Catalog Number
P3030B1100CU
Circuit Breaker Type
100A
Country of Origin
MX
Enclosure
Type1
Enclosure Type
NEMA 1
Height
32.38 in
Length
16.00 in
Mounting
FLUSH/SURFACE
Number of Circuits
30
Number Of Feeders
30
Number Of Spaces
30
Phase
1
Series
PL Series
Standards
ARRA CompliantBuy American Act CompliantRoHS CompliantUL File No. E10703
Sub Brand
UL
Type
PLSERIESASSEMBLEDLOADCENTER
UNSPSC
39121101
UPC 11
04089264978
UPC 12
040892649789
Width
5.75 in
Wiring Configuration
3-Wire
Amperage Rating
100 A
Interrupt Rating
22 kA
Voltage Rating
120/240 VAC
Maximum Amperage (A)
100 A
