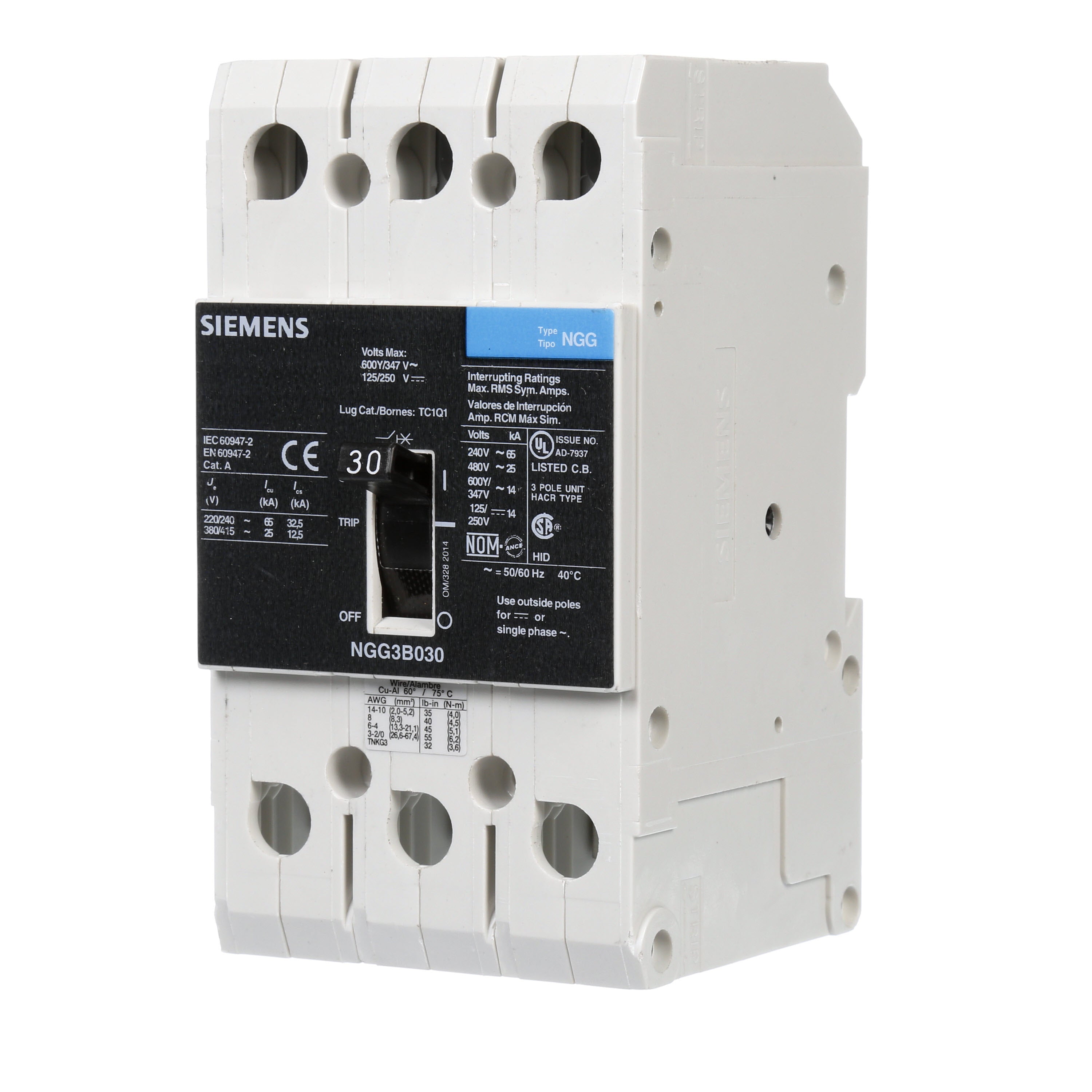

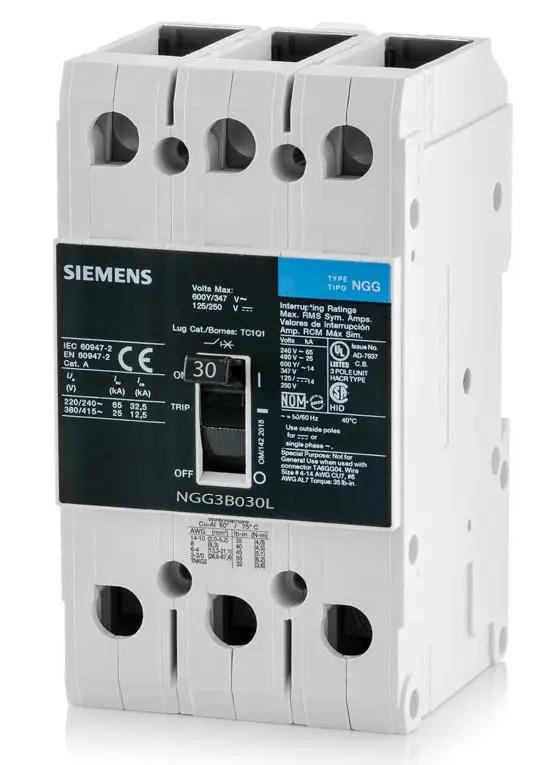

Siemens NGG3B030L Molded Case Circuit Breaker 30A

Product Description

The SIEMENS NGG3B030L is a molded case circuit breaker from the VL Series, designed for reliable circuit protection. This 3-pole breaker is rated at 30A and 600V, with a 25kA interrupt capacity at 480V. Suitable for reverse feed applications and DIN rail mounting, it features long-time and instantaneous trip functions and includes line & load side lug terminals.

• Suitable for reverse feed applications
• Screws or DIN rail mounting
• Feed-thru

Product Highlights

Provides robust protection with thermal magnetic trip and is suitable for industrial applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: NGG3B030L
• Country of Origin: MX

Technical Specifications

• Part Number: NGG3B030L
• Manufacturer: Siemens
• Family: VL Series
• Pole: 3
• Amp: 30
• Volt: 600
• Phase: 3
• Category: Molded Case / 3-Pole
• Connection: Feed-Thru
• Type: NGG
• Functions: LI - Long-Time and Instantaneous
• Protection: Thermal Magnetic
• AIC Ratings: 25kA@480V
• Alternate Catalog Number: US2:NGG3B030L
• Catalog Number: NGG3B030L
• Country of Origin: MX
• Standard: UL/CSA/IEC/NOM
• Standards: ARRA, Buy American Act and RoHS Compliant, CE Certified, HACR Rated
• UNSPSC: 39121601
• UPC 11: 78364341381
• UPC 12: 783643413818
• Actuator: Toggle
• Amperage: 30 Amp
• Applications: INDUSTRIAL
• Conductor Size: 14-10 AWG
• Current: 30 Amp
• Frame: G
• Frequency: 50/60 Hz
• Interrupt Rating: 14, 25 kAIC
• Mounting Type: DIN Rail
• Operating Temperature: 40DEGC
• TC Connection: Line and Load Lugs
• Temperature Rating: 40
• Trip Type: Thermal Magnetic
• Voltage: 480 Volt
• Sub Brand: NGG
• Wire Size: 14 to 6 AWG, 12 to 6 AWG
• Application: Industrial and General Purpose Applications
• Voltage Rating: 480
• ConnectionType: Line/Load Lug
• Actuator Type: Handle
