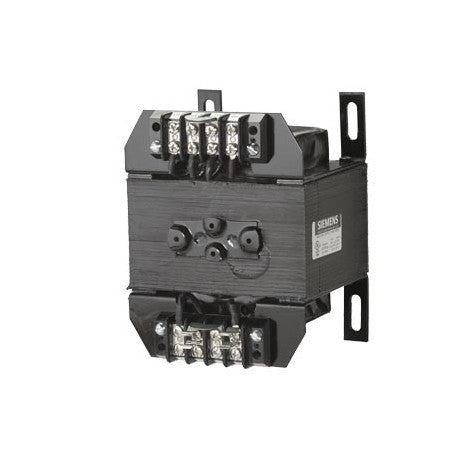

Siemens MTG0500A Transformer 500VA

Product Description

The SIEMENS MTG0500A is a 500VA power transformer with primary voltage options of 220V, 230V, 240V, 440V, 460V, and 480V, and secondary voltage options of 120V, 115V, and 110V. It is designed for chassis mount applications and industrial control, operating at 50/60 Hz. Ideal for various control applications, this transformer ensures reliable power management.

• Supports multiple primary voltages: 220V, 230V, 240V, 440V, 460V, 480V
• Provides secondary voltages of 120V, 115V, and 110V
• Designed for chassis mount applications

Product Highlights

The SIEMENS MTG0500A transformer delivers reliable power with multiple voltage options for industrial control applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: MTG0500A

Technical Specifications

• Category: Transformers
• Power Transformers: Power Transformers
• Center Tap: No
• Manufacturer: Siemens
• Power - Max: 500VA
• Packaging: Box
• Mounting Type: Surface
• Part Status: Active
• Termination Style: Terminal Block
• Voltage - Primary: 220V, 230V, 240V, 440V, 460V, 480V
• Size / Dimension: 149.86mm L x 133.35mm W
• Voltage - Secondary (Full Load): 120V, 115V, 110V
• Height - Seated (Max): 136.91mm
• Brand: SIEMENS
• Manufacturer Part Number: MTG0500A
• VA Rating: 500 VA
• Insulation Class: 105 deg C
• Temperature Rise: 55 deg C
• Type: Industrial Control Transformer
• Enclosure Construction Style: Encapsulated
• Volts, Primary: 220/230/240/440/460/480V
• Volts, Secondary: 110/115/120V
• Frequency Rating: 50/60 Hz
• Terminal Type: Screw
• Phase: 1
• Application: Domestic and International Applications
• Power Rating: 500
• Enclosure Type: IP20
• Connection Type: Screw Terminal
• Temperature Rating: 55
• Reference: MTG0500A
