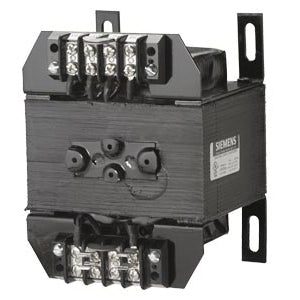

Siemens MT0750F Control Power Transformer 750 VA

Product Description

The Siemens MT0750F control power transformer, Class MT, steps down voltages for use in machine tool and industrial control circuits. It features a 208/277 VAC primary, 120 VAC secondary, 750 VA power, and 50/60 Hz frequency. This transformer isolates control circuits from power and lighting circuits, reducing noise interference.

• Epoxy encapsulated to seal transformer coils against moisture, dust, dirt and industrial contaminants.
• Fuse clips factory mounted for integral fusing on the secondary side.
• Laminations built with silicon steel to minimize core losses and increase optimum performance and efficiency.

Product Highlights

This Siemens control power transformer is designed for domestic applications and features a robust design with heavy gauge steel mounting brackets.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: MT0750F

Technical Specifications

• Brand: Siemens
• Part Number: MT0750F
• Primary Voltage: 208/277 VAC
• Secondary Voltage: 120 VAC
• Power: 750 VA
• Frequency: 50/60 Hz
• Phase: 1 ph
• Connection: Screw Connection
• Mounting: Surface Mounting
• Enclosure: Open Enclosure
• Temperature Range: -4 to 104 deg F
• Type: Control Power Transformer
• Power Rating: 750 VA
• Construction Style: Open, Epoxy Encapsulated
• Terminals: Touchsafe Screw
• Insulation Class Rating: Class 105 deg C
• Temperature Rise: 55 deg C
• Connection Type: Screw Terminal
• Insulation: Class 130 deg C
• Enclosure Type: Open
• Frequency Rating: 50/60 Hz
• Mounting Type: Surface
