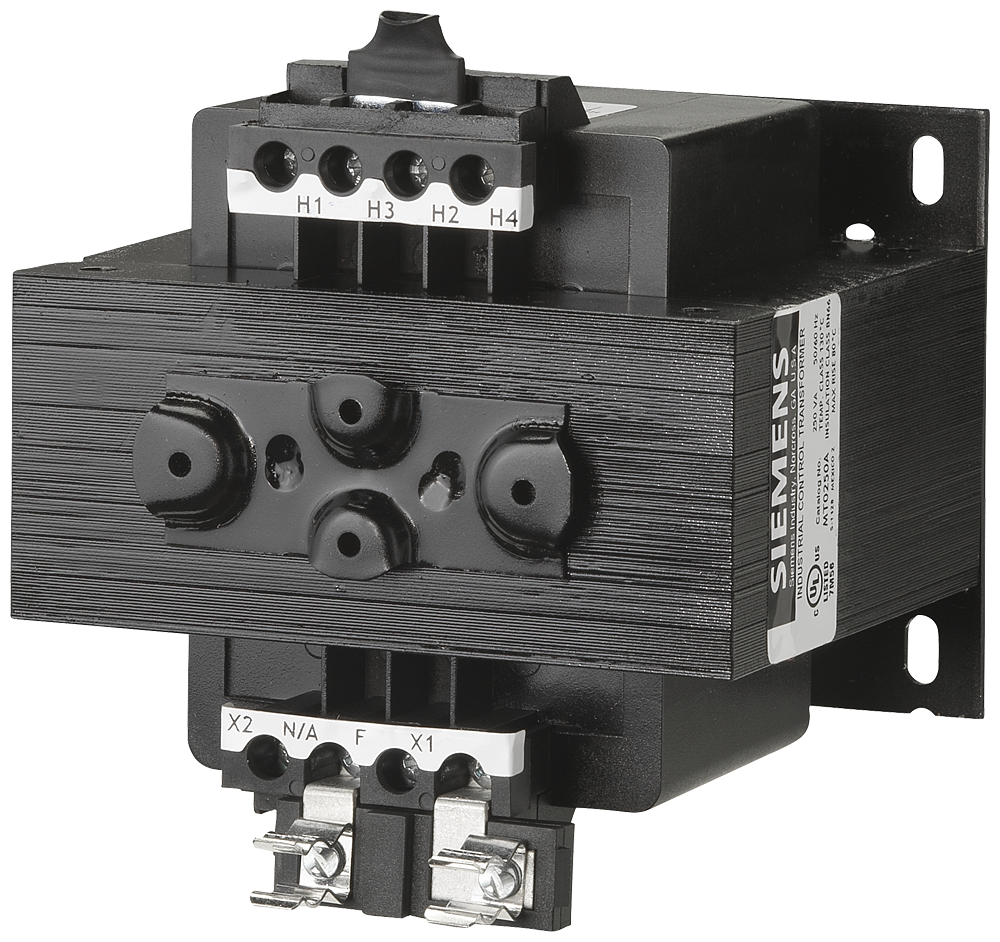

Siemens MT0200F Control Transformer, 200

Product Description

The Siemens MT0200F Control Transformer is a 200 VA control power transformer with a primary voltage of 208/277V and a secondary voltage of 120V, designed for domestic usage. It features screw-type terminals and an IP20 enclosure. This Class MT transformer is suitable for enhancing electrical systems with efficiency and reliability.

• Control Power Transformer
• 200 VA
• PRI 208/277V, SEC 120V

Product Highlights

Ideal for various applications, its compact design and robust features ensure optimal performance in any setting.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: MT0200F
• Country of Origin: Mexico

Technical Specifications

• Type: Class MT
• Brand: Siemens
• Enclosure: IP20
• Applications: For Domestic Usage
• Connection Type: Screw-Type Terminals
• Primary Voltage: 208/277
• Number of Phases: 1 Phase
• Secondary Voltage: 120
• Temperature Rating: 55 C
• VA: 200va
• Frequency Rating: 50/60
• Insulation Class: 105 deg C
• Temperature Rise: 55 deg C
• Terminal Type: Screw, Standard
• Phase: 1
• Application: Domestic Applications
• Power Rating: 200
• Mounting Type: Slotted
• Enclosure Type: IP20
• Includes: Jumper
