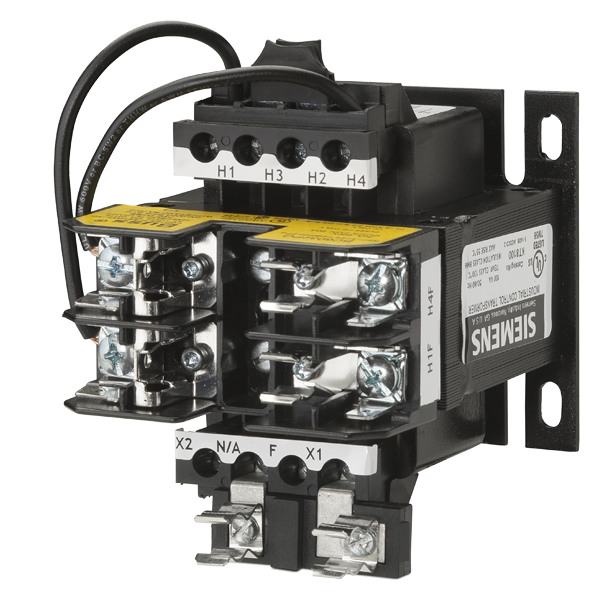

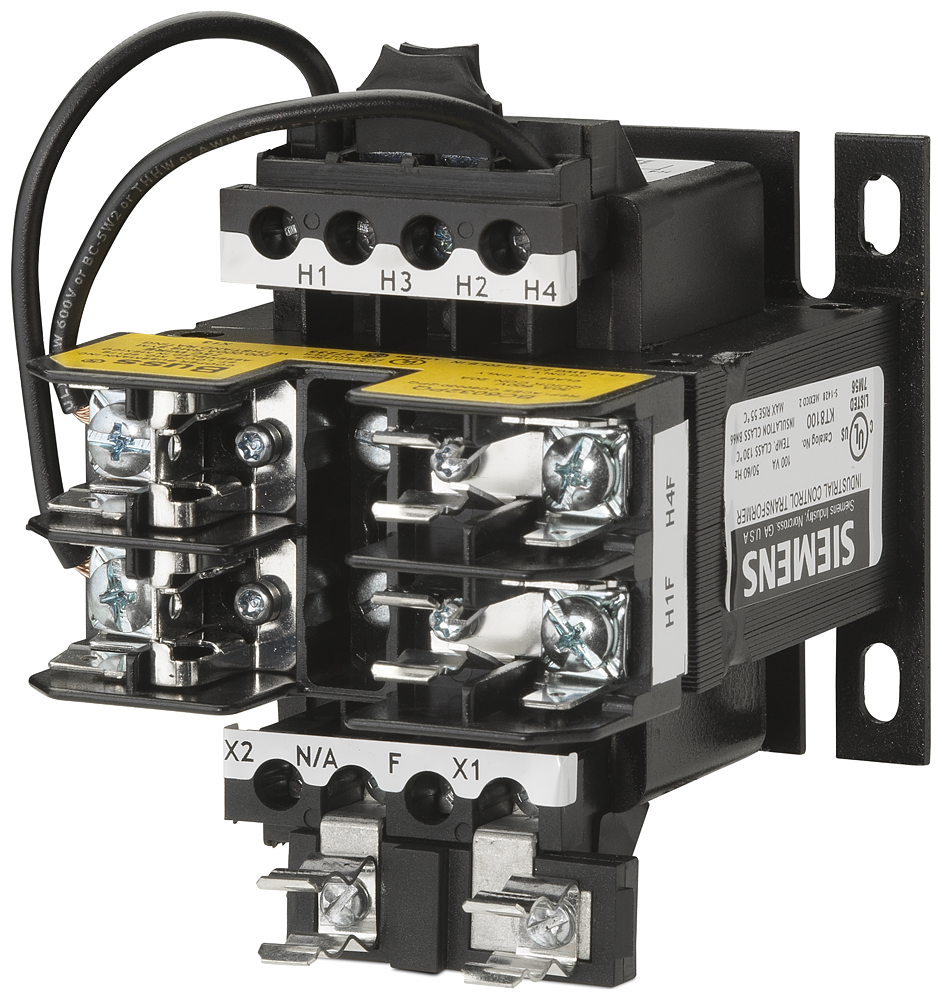

Siemens MT0100G Control Transformer, 100 VA

Product Description

The SIEMENS MT0100G control power transformer is rated at 100 VA with primary voltage at 208/230/460 VAC and secondary voltage at 115 VAC. It is designed for domestic usage and industrial control applications, featuring screw-type terminals and a slotted mounting type.

• Epoxy encapsulated to seal against moisture, dust, and contaminants.
• Features integrally molded barriers between terminals for electrical creepage protection.
• Laminations built with silicon steel to minimize core losses.

Product Highlights

This Class MT control power transformer offers robust design and reliable performance in industrial environments.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: MT0100G
• Country of Origin: Mexico

Technical Specifications

• MPN: MT0100G
• Brand: SIEMENS
• Applications: For Domestic Usage
• Connection Type: Screw-Type Terminals
• Enclosure: IP20
• Frequency: 50/60 Hz
• Input Voltage: 208/230/460 V
• IP Rating: IP20
• Mounting Type: Slotted
• Number of Phases: 1 Phase
• Output Voltage: 115 V
• Primary Voltage: 208/230/460 V AC
• Secondary Voltage: 115 V AC
• Standard: CSA,UL,ANSI
• Temperature Rating: 55 C
• Type: Class MT
• Power Rating: 100 VA
• Maximum Amperage Rating: 0.29 A
• Country of Origin: Mexico
