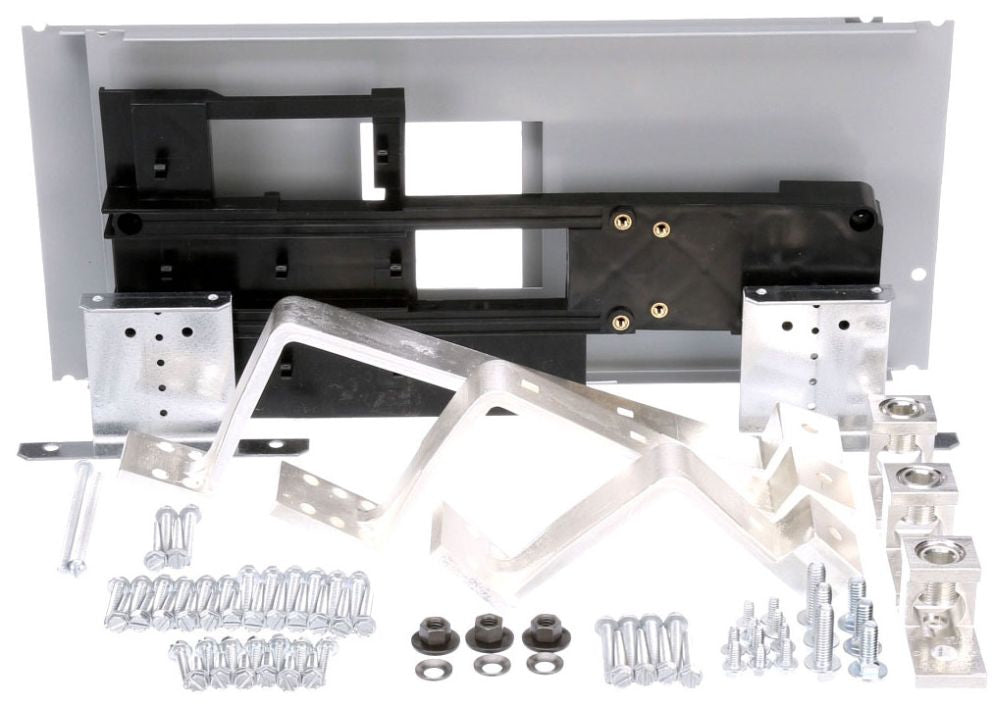

Siemens MG1D Panelboard Connecting Strap Kit

Product Description

The Siemens MG1D is a panelboard connecting strap kit designed for NM, HM, LM, SNM, and SHM breakers in a P5 panelboard. This component ensures proper connection and functionality in electrical systems. It is compatible with switchboards SB1, SB2, SB3, and others.

• Used with Siemens SB1/SB2/SB3/FC20/FCI/FCII/CDP-6/VB-6 switchboards
• Supports CDP and MG series circuit breakers
• Essential for ensuring secure connections in power and distribution panelboards

Product Highlights

This kit provides a reliable mounting solution for various Siemens breakers, promoting safe operation in electrical systems.

Product Information

Standard Information

• Manufacturer: Siemens
• UPC: 783643622203

Technical Specifications

• PDW ID: ECL805061
• Used On: SB1/SB2/SB3/FC20/FCI/FCII/CDP-6/VB-6 switchboards
• Current Rating: 800 Amperes
• Height: 8.75 inches
• Package Height: 5.906 inches
• Package Length: 9.843 inches
• Package Width: 3.937 inches
• Weight: 2.48 lbs
