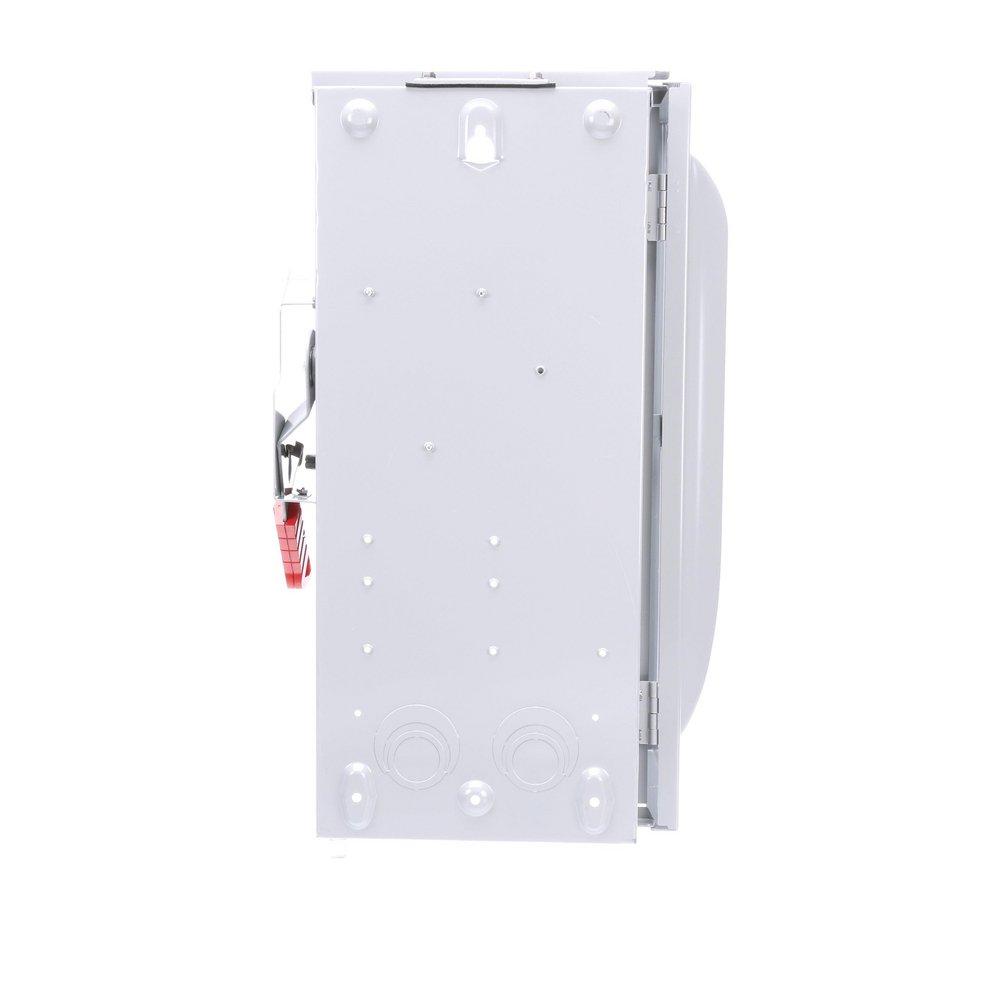

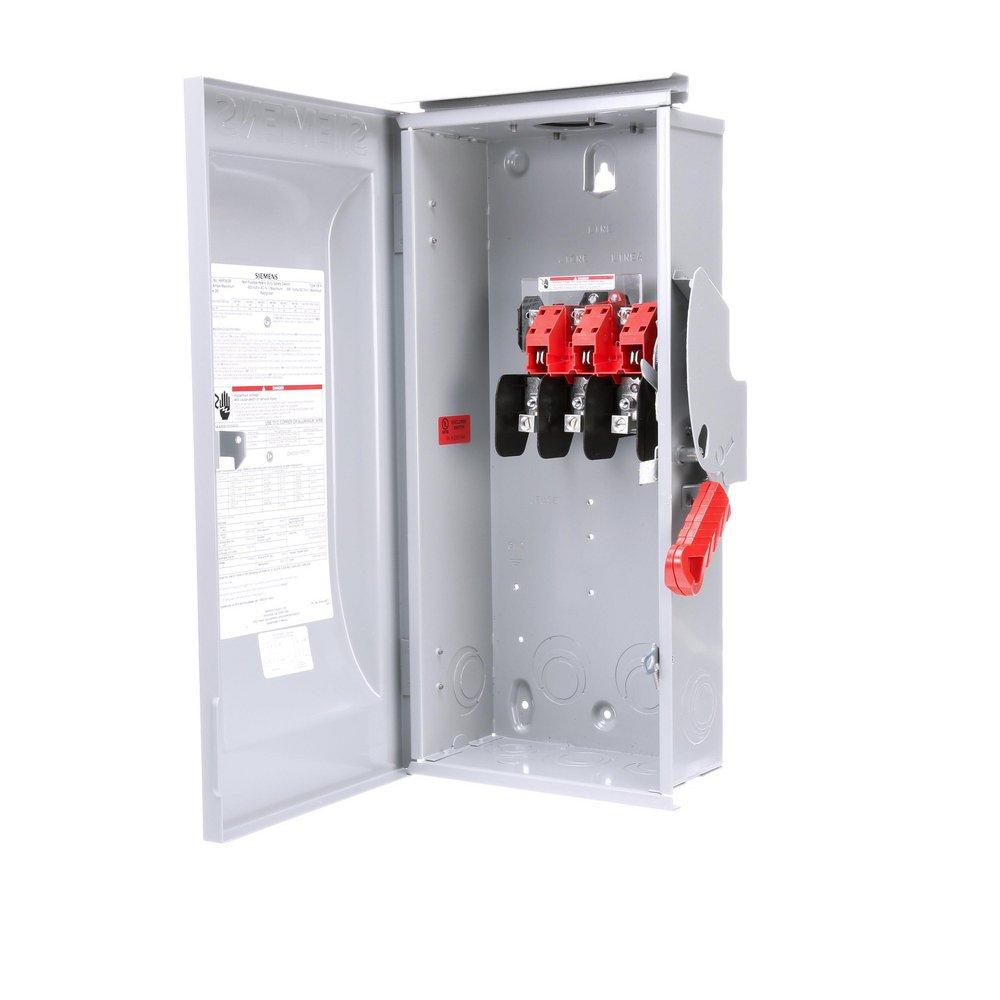

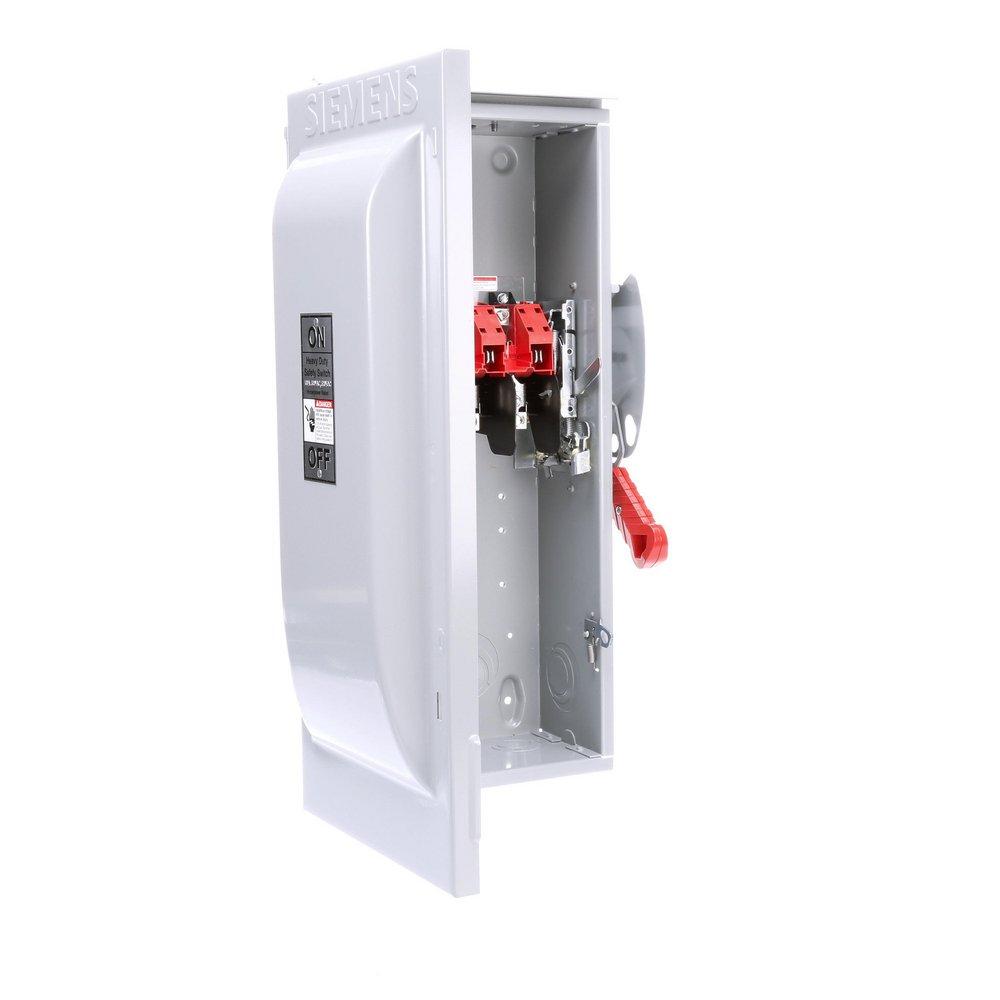

Siemens HNF363R SWITCH SAF 600VAC 100A 100HP TPST

Product Description

The Siemens HNF363R is a 600 Volt, 100 Amp, 3-Pole Heavy Duty Safety Switch. It is designed for use in industrial and commercial applications that require reliable power distribution. This non-fusible switch is suitable for outdoor environments, offering a NEMA 3R enclosure for protection against weather elements.

• Quick-make, quick-break operating mechanism.
• Visible blade double-break switching action enhances safety.
• Compatible with both aluminum and copper conductors.

Product Highlights

This safety switch provides a robust solution for disconnecting means in service entrances and loads. Its construction is designed to handle significant power demands while ensuring user safety.

Product Information

Standard Information

• Manufacturer: Siemens
• Part Number: HNF363R

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 100 A
• Horsepower Rating: 100 hp
• Phase: 3
• Number of Wires: 3
• Enclosure Type: NEMA 3R
• Operating Temperature: -29 to 85 degrees C
• Short Circuit Current Rating: 200 kA
• Insulation Type: Non-Insulated
• Material: Steel
• Dimensions: 21.95 in H x 10.92 in W x 10.17 in D
