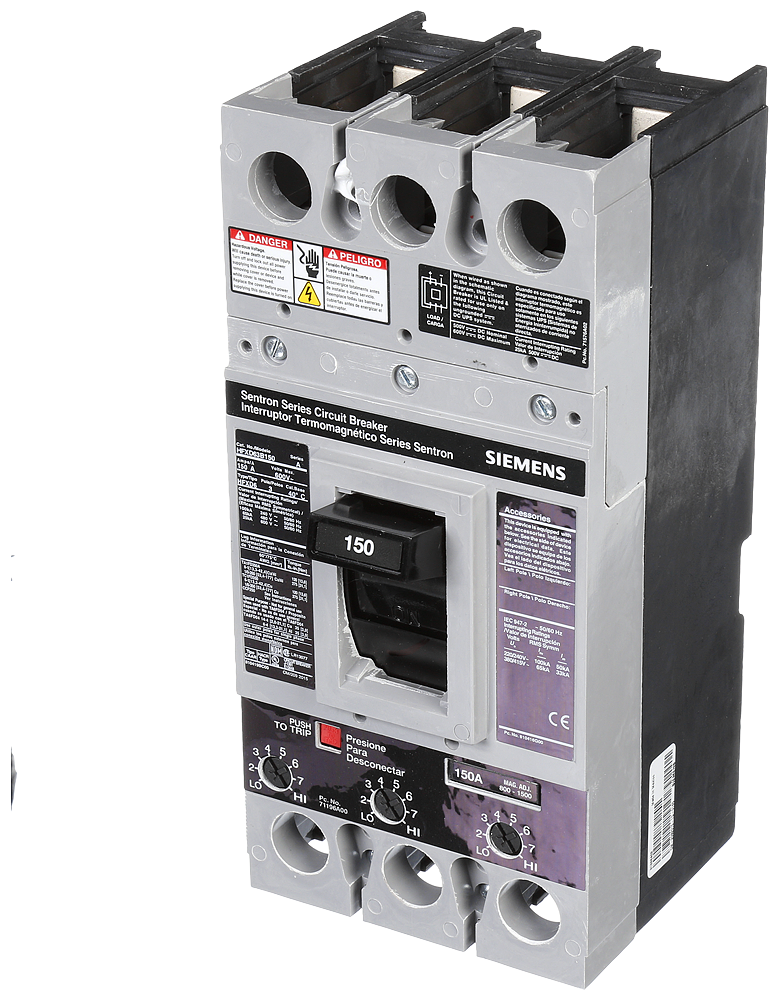

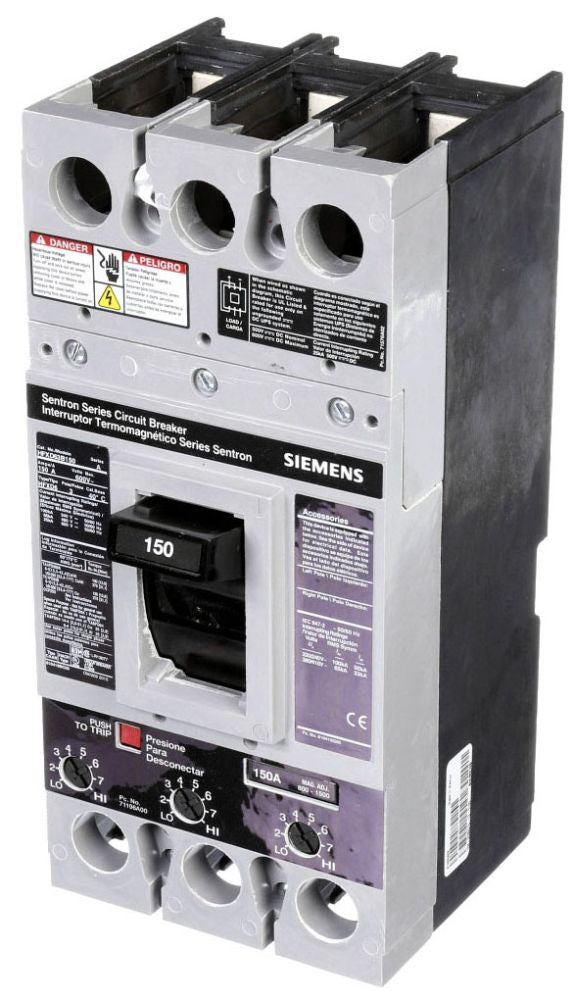

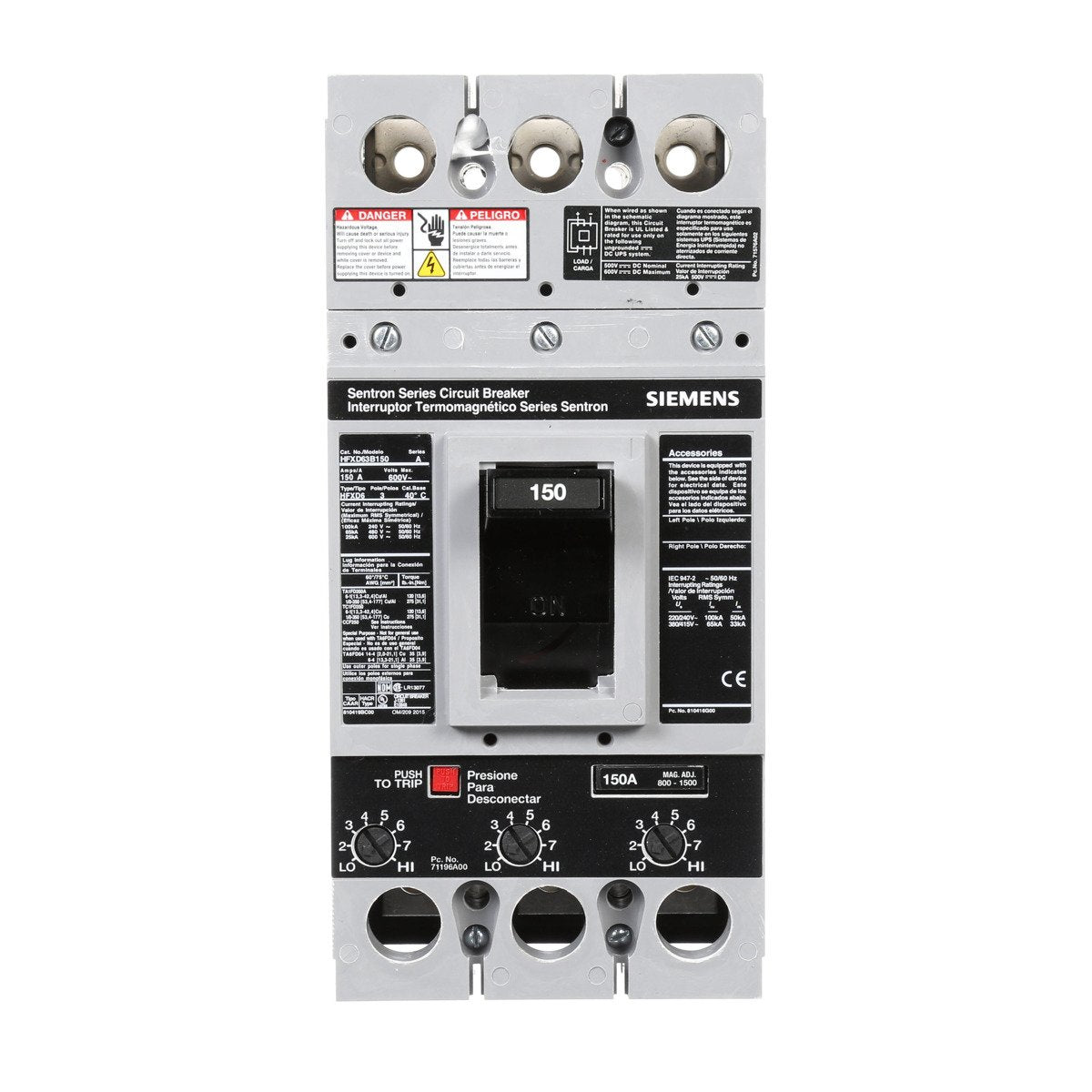

Siemens HFXD63B150 3-Pole 150 Amp 600 VAC 25 kA Molded Case Circuit Breaker

Product Description

The Siemens HFXD63B150 is a three-pole molded case circuit breaker designed for reliable performance in various applications. With a current rating of 150 Amps and a voltage rating of 600 VAC, this circuit breaker is suitable for both commercial and industrial use. It features thermal-magnetic trip technology for effective protection against overloads and short circuits.

• Three-pole design rated for 150 Amps
• Thermal-magnetic trip unit for optimal protection
• High interrupting capacity of 25 kA at 600 VAC

Product Highlights

This circuit breaker is ideal for applications where high breaking capacity and thermal protection are required. Its compact design allows for easy installation in tight spaces.

Product Information

Standard Information

• Brand: Siemens
• Country of Origin: Mexico

Technical Specifications

• Current Rating: 150 Amps
• Voltage Rating: 600 VAC
• Number of Poles: 3
• Interrupting Capacity: 25 kAIC
• Frame Type: FD
• Dimensions: 4.5 in x 9.5 in x 4 in
• Weight: 9 lb
• Frequency Rating: 50/60 Hz
