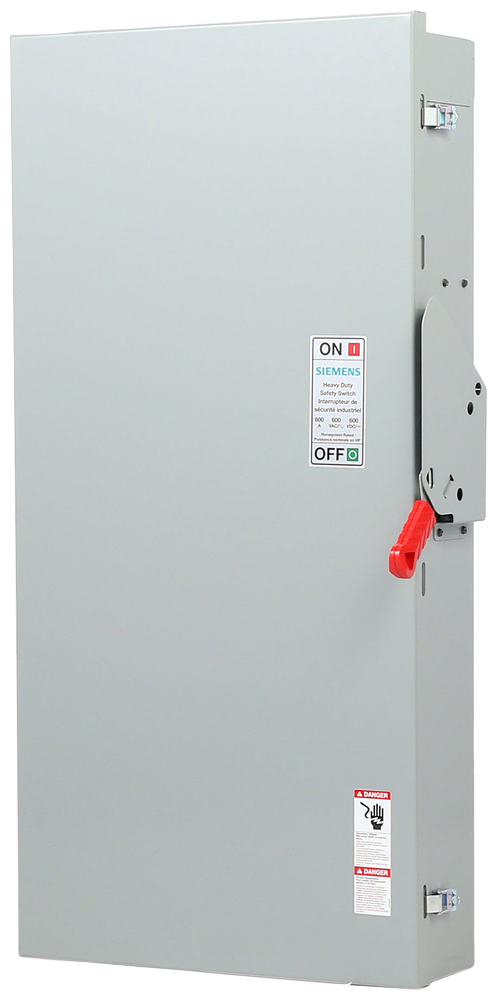

Siemens HF366A 600A 3P 600V 3W F

Product Description

The Siemens HF366A is a heavy-duty safety switch designed for low voltage circuit protection. It is rated for 600 amperes, with three poles and a voltage of six hundred volts. This model is suitable for indoor applications and is constructed with a NEMA 1 enclosure. It uses fusible protection and is compliant with UL 98 standards.

• Rated for 600 Amps and 600 Volts
• Constructed with a durable steel body
• Meets industry safety standards

Product Highlights

The Siemens HF366A safety switch is ideal for disconnecting loads for service entrance. It features a quick-make, quick-break operating mechanism ensuring reliable operation. The visible blade design allows users to see the switch position, enhancing safety. The construction includes spring reinforced fuse clips, providing contact reliability during operation.

Product Information

Standard Information

• Brand: Siemens
• Manufacturer: Siemens

Technical Specifications

• Amperage: 600 Amp
• Voltage: 600 Volt
• Material: Steel
• Enclosure Type: NEMA 1
• Action: Single throw
• Weight: 98 Pounds
• Height: 45.32 Inches
• Width: 22.40 Inches
• Length: 6.94 Inches
• Ambient Temperature Rating: -29 Degrees C
• Number of Poles: 3
• Fuse Type: Class H
• Applications: Disconnecting loads for service entrance
