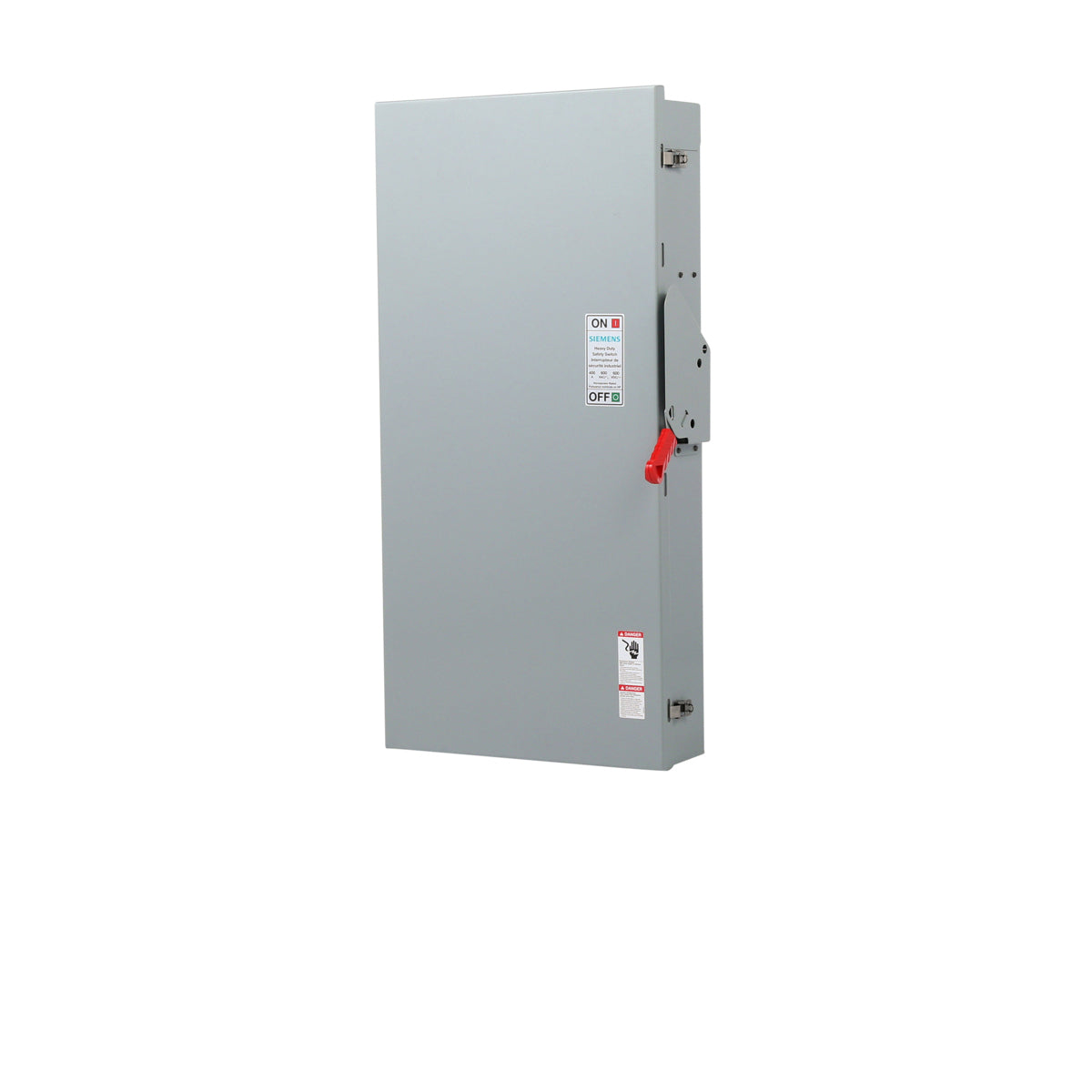

Siemens HF365NRA Low Voltage Circuit Protection Heavy Duty Safety Switch 600VAC 400A NEMA3R

Product Description

The Siemens HF365NRA is a low voltage circuit protection heavy duty safety switch designed for outdoor use. It features a three-pole configuration capable of handling up to four hundred amps and a voltage rating of six hundred volts AC. The switch is housed in a NEMA three R enclosure, ensuring durability and protection against weather conditions.

• Rated for outdoor applications
• Supports up to 400 amps and 600 volts
• Includes padlock provisions for safety

Product Highlights

This switch is ideal for disconnecting loads and service entrance connections in commercial and industrial applications. It conforms to UL 98 standards and is designed with mechanical lugs for easy installation.

Product Information

Standard Information

• Brand: Siemens
• Catalog Number: HF365NRA

Technical Specifications

• Amperage Rating: 400 A
• Voltage Rating: 600 VAC
• Number of Poles: 3
• Enclosure Type: NEMA 3R
• Material: Steel
• Operating Temperature: -29 to 85 deg C
• Country of Origin: Mexico
• Mounting Type: Surface
• Operating Cycles: 6000
• Frequency Rating: 60 Hz
