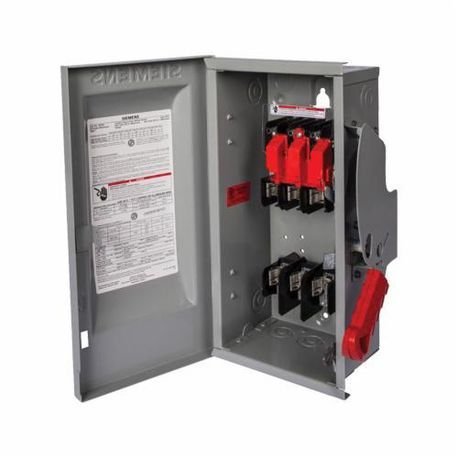

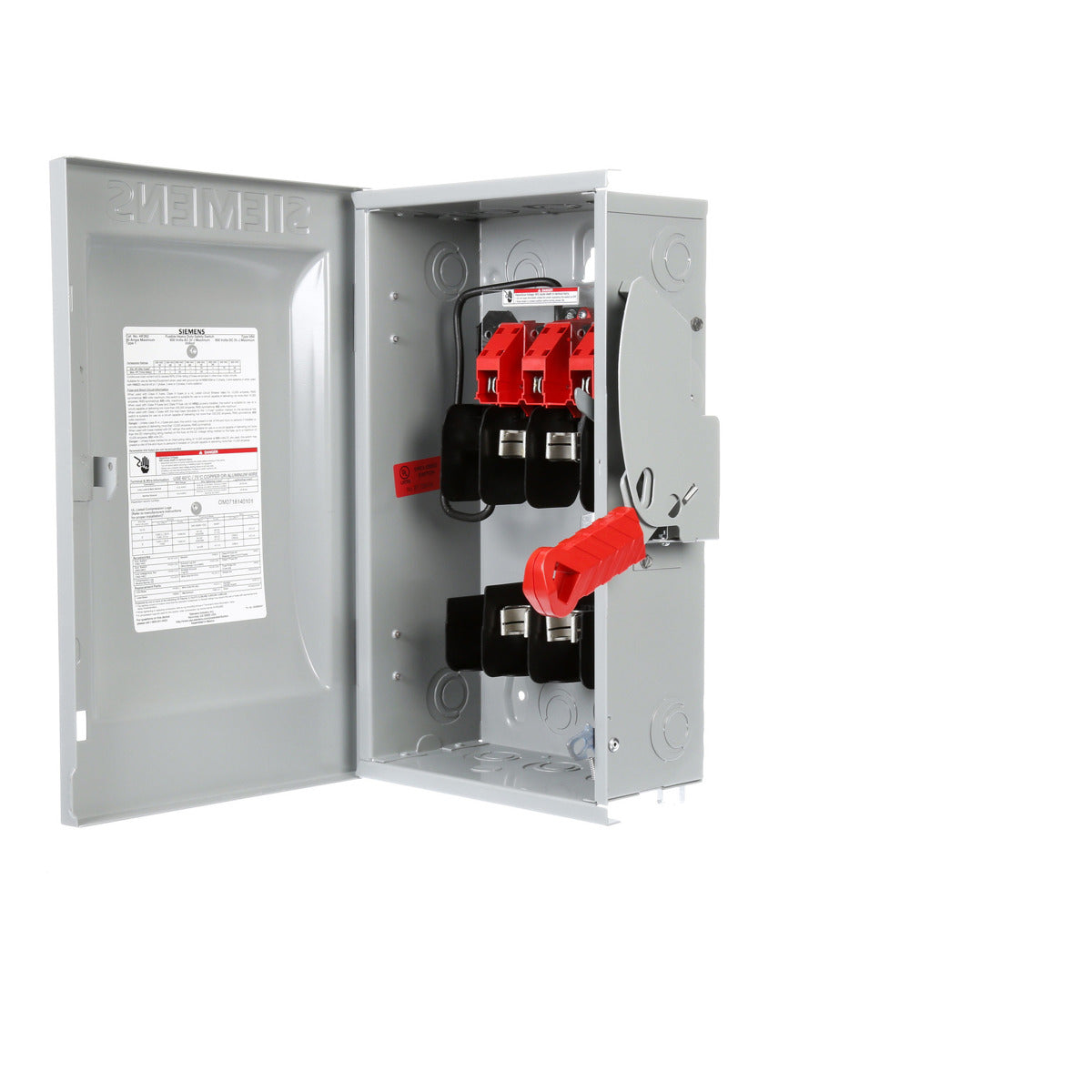

Siemens HF262 Heavy Duty Safety Switch 600VAC 60 Amp

Product Description

The SIEMENS HF262 is a low voltage circuit protection heavy-duty safety switch. This 2-pole, 2-fuse switch is enclosed in a NEMA type 1 enclosure suitable for indoor use. It is rated for 600VAC and 60A and features a single throw operation.

• Quick-make, quick break operating mechanism
• Visible blade, double break switching action
• Arc chutes dissipate heat and prolong switch life

Product Highlights

The Siemens HF262 safety switch is designed for disconnecting service entrances and loads, ensuring reliable performance and safety.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: HF262
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: HF262
• Manufacturer: Siemens
• Brand: Siemens
• Sub Brand: VBII
• Country of Origin: Mexico
• Made in USA: No
• Actuator: SINGLETHROW
• Amperage Rating: 60 A
• Application: Indoor Applications
• Connection: MECHANICALLUGS
• Enclosure: NEMA 1
• Frequency Rating: 60 Hz
• Material: Steel
• Mounting: Surface
• Number of Poles: 2
• Operating Cycles: 10k
• Standard: UL98
• UPC: 783643173897
• GTIN: 00783643173897
• Item Type: HEAVYDUTYSWITCH
• Operating Temperature: -29 C
• Contact Form: DPST
• Phase: 1
• Terminal Type: Lug
• Horsepower: 10 hp
• Temperature Rating: -29 to 85 deg C
• Number of Wires: 2
• Type: Type VBII Enclosed Fusible Heavy Duty Low Voltage Single Throw
• Short Circuit Current Rating: 200 kA
• Insulation Type: Non-Insulated
• Voltage Rating: 600 VAC/VDC
• UNSPSC: 39122205
• Vendor SKU: HF262
• Standard & Approvals: UL Listed|UL 98
