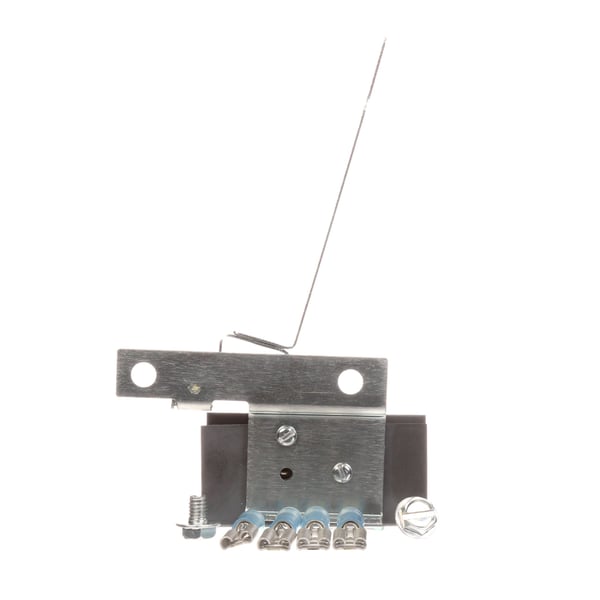

Siemens HA165678 Safety Switch, Auxiliary Contact Kit, for 400-1200A, 10A, Rated

Product Description

The SIEMENS HA165678 is a safety switch auxiliary contact kit designed for 400-1200A applications. It features one normally open and one normally closed contact with a rating of 10 amps. This auxiliary contact is suitable for use on visible blade type VBII switches. It is designed for construction, industrial, residential and indoor applications.

• Rated for 125/250 Volt AC
• Switch current rating of 400 - 1200 Amp
• Suitable for enclosed safety switches

Product Highlights

The SIEMENS HA165678 auxiliary contact kit is ideal for enhancing safety switch functionality with reliable contact performance.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: HA165678
• Country of Origin: Mexico

Technical Specifications

• Amps: 10
• Mounting: Device
• Amps Range: 400 - 1200
• Amperage: 400-1200 Amp
• Applications: For Type VBII Heavy Double Throw Safety Switches
• Frequency: 60 Hz
• Insulated?: No
• Operating Cycles: 6050
• Operating Temperature: -20 to 120 degrees F
• Power Rating: 0.5 hp at 125 VAC, 0.75 hp at 250 VAC
• Standard: CSA,UL
• Temperature Rating: -20 to 120 degrees F
• Type: Heavy Duty
• Brand: Siemens
• Sub Brand: VBII
• Amperage Rating: 1200 A
• Catalog ID: SIEHA165678
• Contacts: 1NC-1NO
• Suitable For Use With: Enclosed Safety Switches
• Voltage Rating: 250 VAC/28 VDC
• Application: Construction, Industrial, Residential and Indoor Applications
• Standard & Approvals: UL Listed
