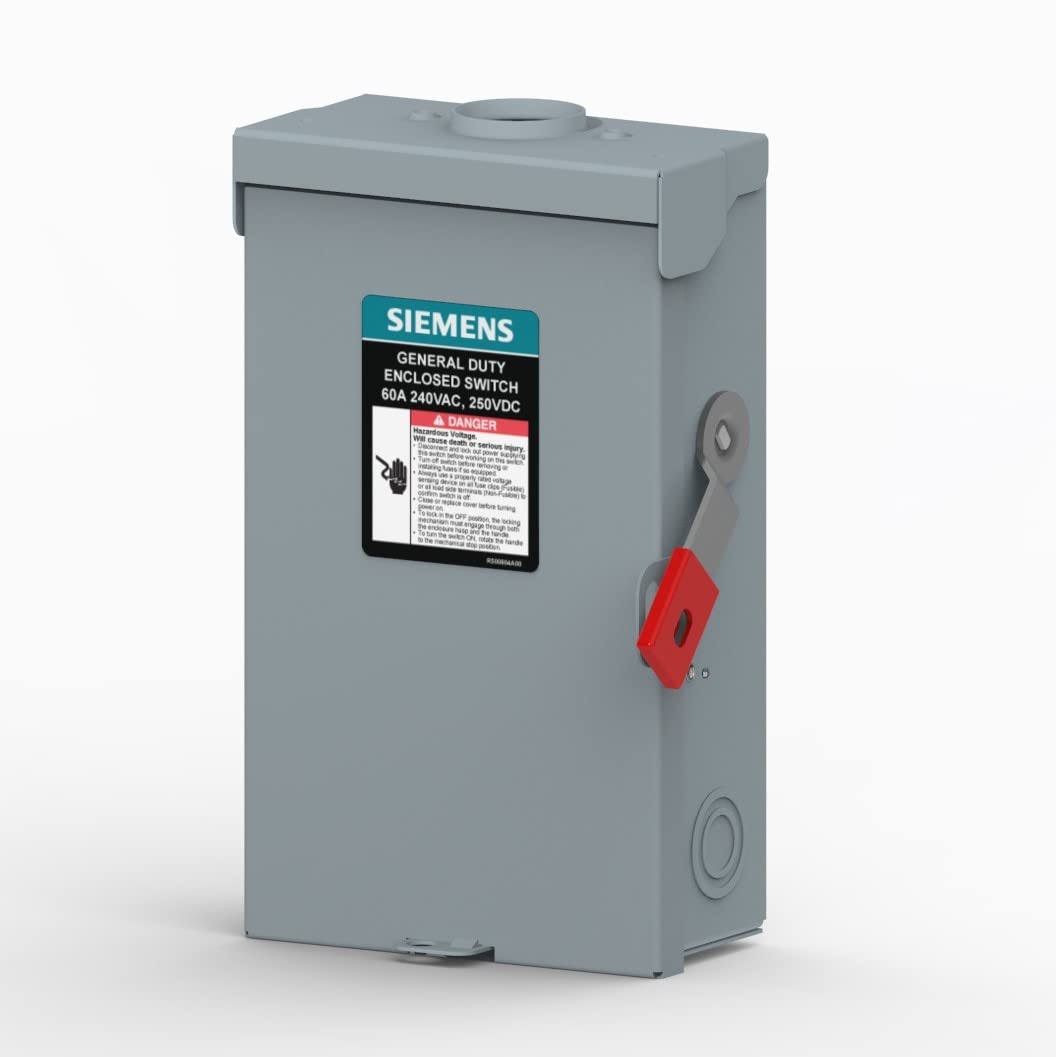

Siemens GNF322RLA General Duty Plus Safety Switch 60 Amp (3-Pole)

Product Description

Siemens GNF322RLA is a 60-amp, 3-pole, 240 V general duty plus safety switch designed for outdoor, non-fusible applications. The unit provides a handle-type ON/OFF actuator with embedded indicators and padlocking provisions, and an oversized NEMA 3R enclosure with enlarged door area and three additional knockouts for easier wiring and labeling. It is UL listed and intended for use on 3-wire 240 V AC distribution circuits.

• Rated 60 A, 240 V AC; 3-pole, 3-wire configuration for distribution and disconnect use
• NEMA 3R outdoor enclosure with oversized door, larger labeling surface and three additional knockouts
• Handle-type switch with embedded ON/OFF indicators and padlocking provisions; UL listed

Product Highlights

Outdoor NEMA 3R non-fusible safety switch; 60 A, 240 V, 3-pole with oversized enclosure and padlock provision.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: GNF322RLA
• Country of Origin: Mexico

Technical Specifications

• Brand: Siemens
• MPN: GNF322RLA
• Model: GNF322RLA
• Product Type: General Duty Safety Switch
• Duty Series: General Duty Plus
• Current Rating: 60 A
• Poles: 3
• Number of Wires: 3-wire
• Voltage Rating (AC): 240 V AC
• Fusible: Non-Fusible (fuses not included)
• Enclosure Rating: NEMA 3R
• Enclosure Details: Oversized enclosure with larger door surface area for labeling; enlarged enclosure for easy wiring; embedded ON/OFF indicators; padlocking provisions on handle and door
• Knockouts: 3 additional knockouts (bottom, back and side)
• Contact Form: 3PST
• Switch Type: Handle (lever/actuator with padlock provision)
• Actuator: Lever / Handle-type
• Terminal Type: Screw terminals
• Mounting Type: Surface mount
• Dimensions: 6.45 x 10.1 x 3.6 inches
• Weight: 4.0 lb
• UL Listed: Yes
• UPC: 195125271241
• Item Count: 1
