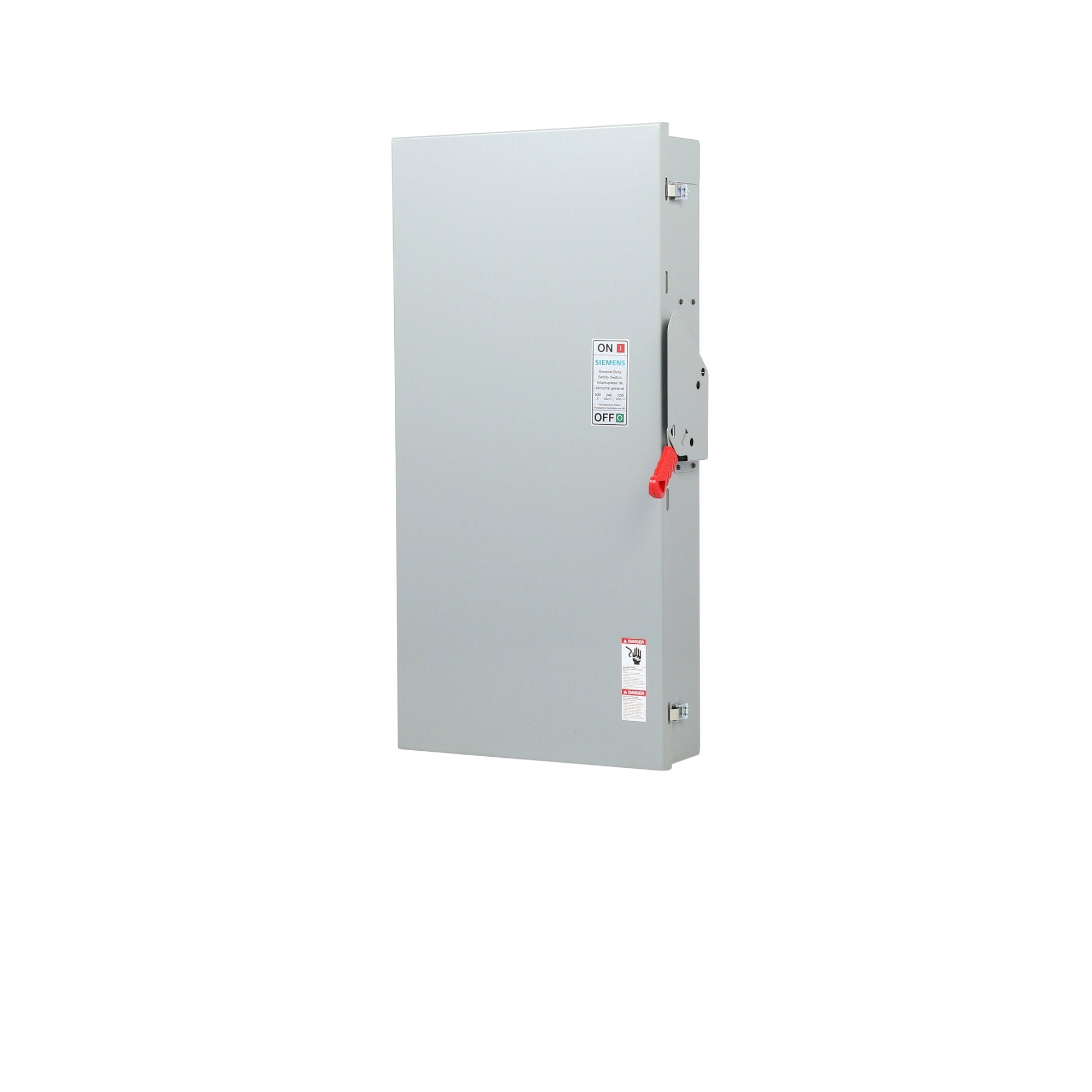

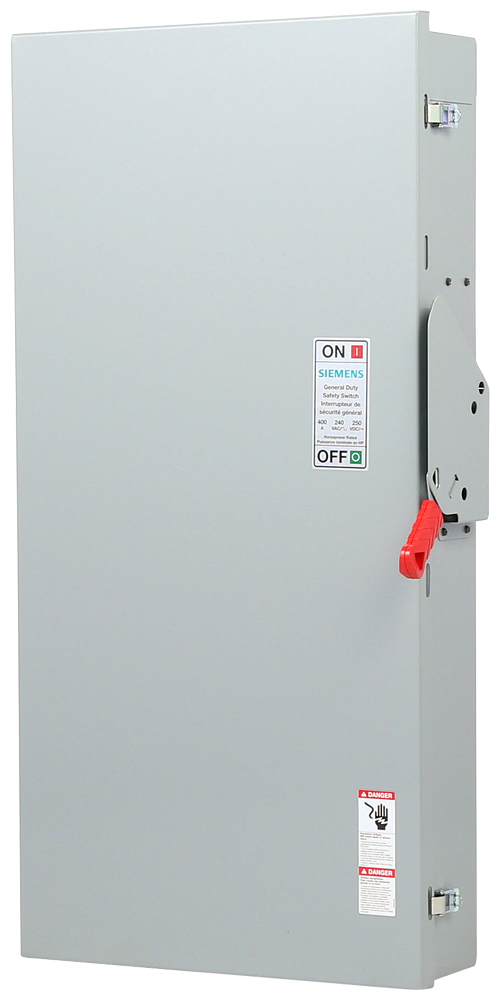

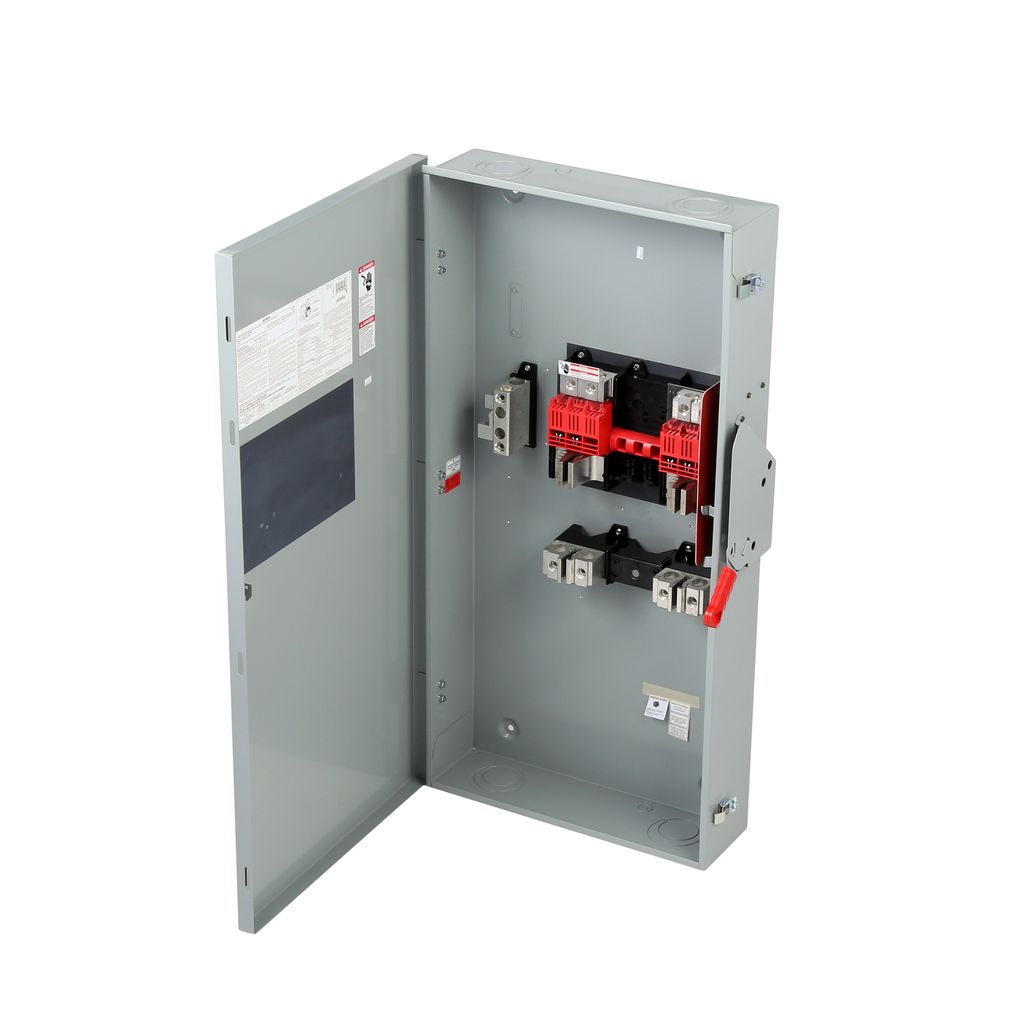

Siemens GF225NA GDSS FUS 2P3W 240V 400A

Product Description

The Siemens GF225NA is a general duty safety switch designed for low voltage circuit protection. This product features a two-pole, two-fuse configuration with a solid neutral setup, enclosed in a type one indoor housing. It operates at a voltage of two hundred forty volts and can handle an amperage of four hundred amps.

• Rated voltage of 240VAC.
• Suitable for standard time delay functions in both single-phase and three-phase applications.
• Service entrance labeled for 3-PH motor loads.

Product Highlights

This safety switch is applicable for disconnecting means for service entrance and loads, supporting a variety of configurations.

Product Information

Standard Information

• Catalog Number: GF225NA
• Brand: Siemens

Technical Specifications

• MPN: GF225NA
• Type: General Duty Switch
• Voltage: 240 Volt
• Amperage: 400 Amp
• Material: Steel
• Enclosure: NEMA 1
• Number of Poles: 2 Pole
• Operating Temperature: -29 degrees Celsius
• Weight: 91.1 lb
• Dimensions: 22.4 inches wide x 45.32 inches high x 6.94 inches long
• Mounting Type: Surface
• Operating Cycles: 6000
• GTIN: 00887621872663
• UPC: 887621872663
