Siemens GEB136.1U Direct Coupled Actuator 24 VAC 3 VA (90 deg)

Product Description

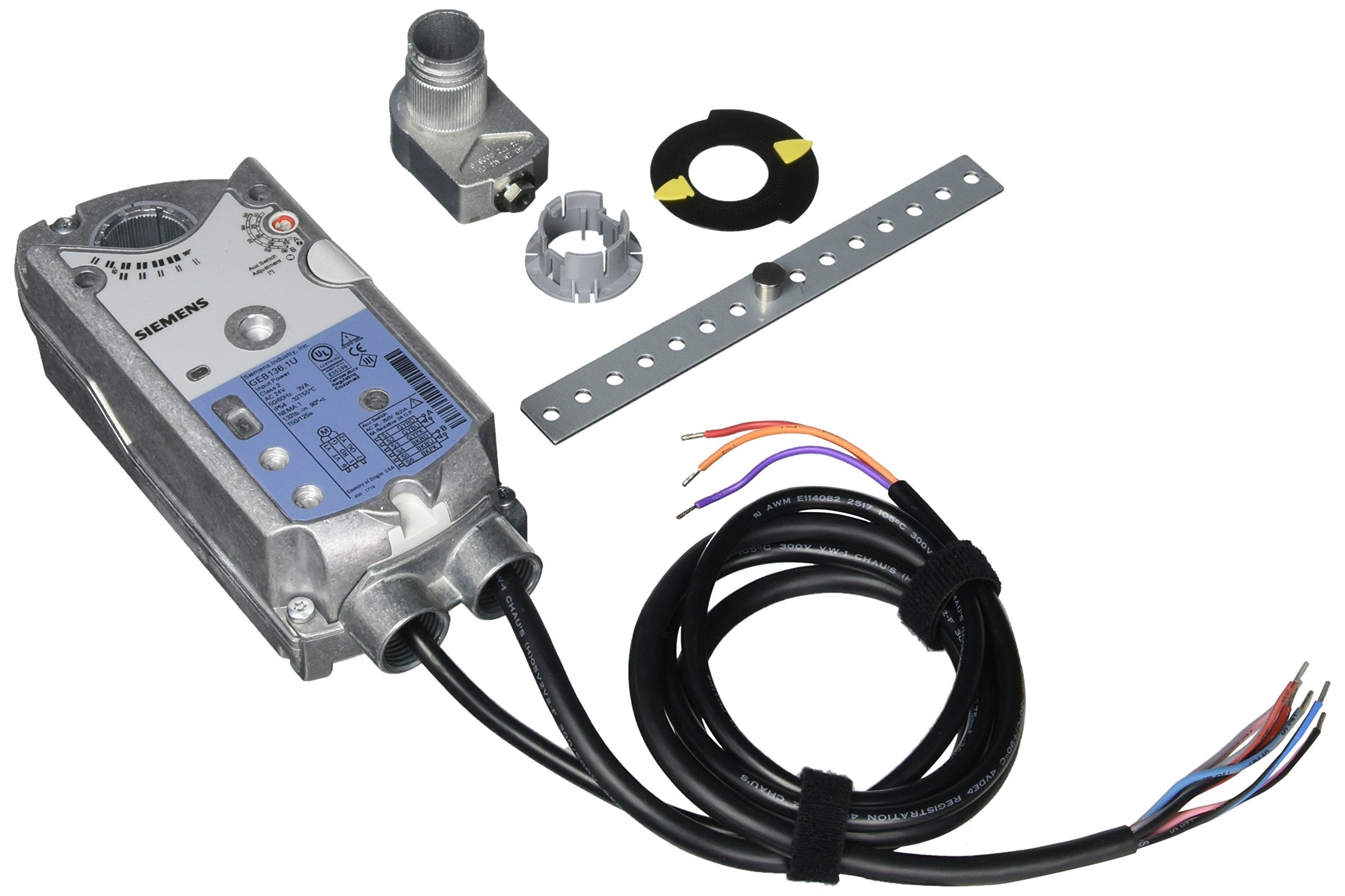

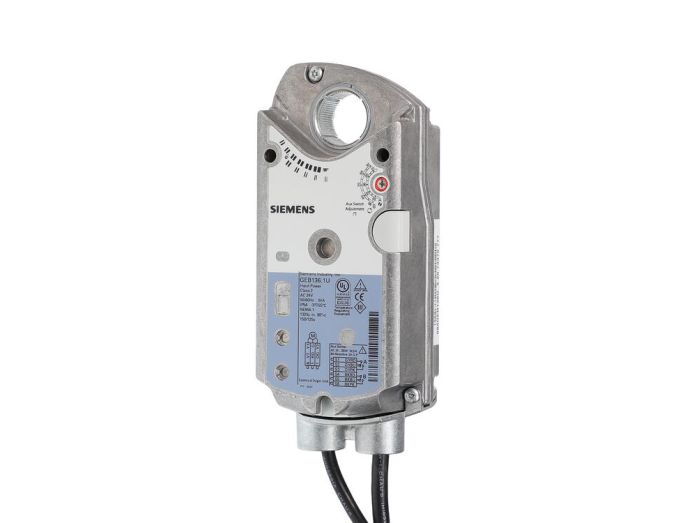

Siemens GEB136.1U is a direct-coupled, non-spring return actuator rated at 132 in-lb torque for damper control. It operates on 24 VAC with 3 VA power consumption and provides floating control with built-in position feedback. The actuator includes a brushless motor, self-centering shaft coupling, manual override, mechanical range adjustment, visible position indicator, and a precabled 3 ft 18 AWG connection. It is UL60730 and cUL listed.

• 132 in-lb torque, direct-coupled rotary actuator; non-spring return (NSR)
• 24 VAC input, 3 VA power consumption, floating control with built-in position feedback
• Brushless motor, self-centering shaft coupling, manual override, dual auxiliary switches, NEMA 1 housing

Product Highlights

Direct-coupled NSR damper actuator; 90 deg rotation; 125 s nominal run time; 3 ft precabled; UL60730 and cUL listed

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: GEB136.1U
• Country of Origin: United States

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: GEB136.1U
• Actuator Type: Direct coupled, non-spring return (NSR)
• Torque: 132 in-lb (15 Nm)
• Input Voltage: 24 VAC
• Power Consumption: 3 VA
• Control Signal: Floating control
• Position Feedback: Built-in position feedback
• Run Time: 125 seconds (nominal)
• Angular Rotation: 90 deg
• Auxiliary Switches: 2 (dual)
• Enclosure Rating: NEMA 1
• Operating Temperature: -25 F to 130 F (-32 C to 55 C)
• Cable Length: 3 ft, 18 AWG precabled
• Motor Type: Brushless motor
• Housing Material: All-metal housing
• Mounting: Direct coupled
• Certifications: UL60730; cUL (C22.2 No.24-93)
• Dimensions: 8.38 x 3.25 x 2.38 in
• Weight: 998 g (2.2 lb)
• Country of Origin: United States
• Frequency: 50/60 Hz
