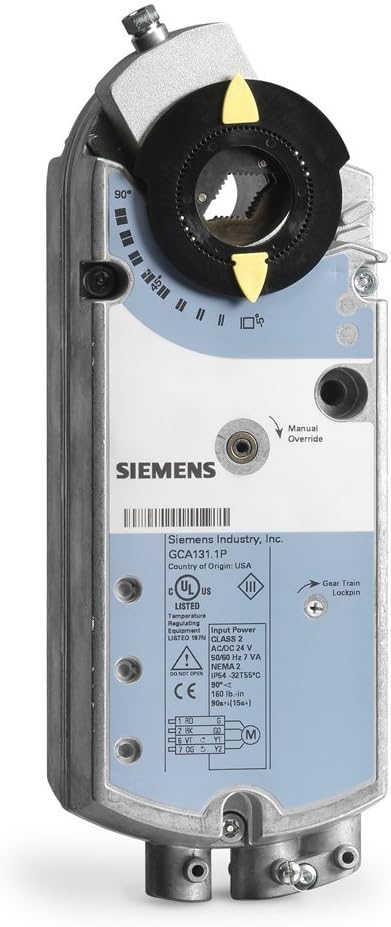

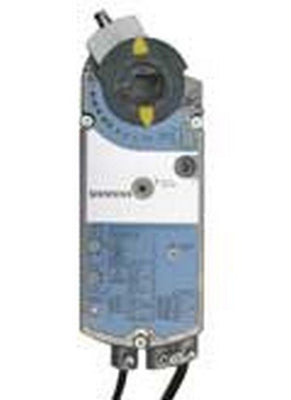

Siemens GCA136.1P Damper Actuator Electronic Direct Coupled Rotary

Product Description

The Siemens GCA136.1P Damper Actuator provides precision control over building HVAC dampers. This direct coupled rotary actuator features a spring return mechanism, ensuring reliable functionality in constant or variable air volume installations. Ideal for economizer dampers, return air, mixed air, exhaust, and face and bypass dampers.

• 24 Volts powering with a significant torque of 160-pound inch (18 Nm).
• Floating control input signal for easy integration.
• Equipped with plenum cables, making it ideal for air-handling spaces.

Product Highlights

Developed by Siemens, a leader in HVAC technologies, this actuator is engineered for top performance and durability. It features dual adjustable auxiliary switches to indicate damper positions and boasts ultra-low power consumption.

Technical Specifications

• Power Requirement: 24V AC/DC
• Torque: 160 lb.-in (18 Nm)
• Control Type: Floating input signal
• Certifications: UL and cUL listed, CE marked
• Product Dimensions: 2.88 x 4.75 x 12 inches
• Weight: 5.44 pounds
