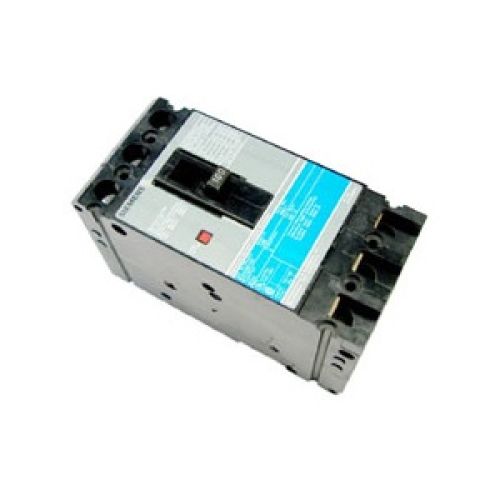

Siemens ED43B060 Circuit Breaker 60 Amp 3 Pole

Product Description

The SIEMENS ED43B060 is a type ED4 low voltage molded case circuit breaker. This 3-pole breaker is rated at 60A and 480 VAC/250 VDC with an 18 kA interrupt rating. It provides overload and short circuit protection using a thermal magnetic trip element and is suitable for use in individual enclosures, switchboards and panelboards.

• All ED frame circuit breakers may be reverse connected
• 10 to 1/0 AWG copper aluminum wire
• Line side lugs not included

Product Highlights

The SIEMENS ED43B060 circuit breaker provides reliable circuit protection in various applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: ED43B060
• Country of Origin: MX

Technical Specifications

• Amperage Rating: 60 A
• Application: For standard 40 deg C breaker
• Connection Type: Load Lug
• Country of Origin: MX
• Frame: ED/125A
• Frequency Rating: 50/60 Hz
• Interrupt Rating: 18 kA
• Mfg Standards/Approvals: HACR Rated|UL 489
• Mounting Type: Panel
• Number of Poles: 3
• Phase: 3
• Temperature Rating: 40 deg C
• Trip Type: Thermal Magnetic
• Type: Type ED4 Low Voltage
• Voltage Rating: 480 VAC/250 VDC
• Wire Size: 10 to 1/0 AWG
• Current Rating: 60 Amps
• Circuit Breaker Type: Standard
• Voltage: 480 Volts
• Manufacturer: Siemens
• Amperage: 60
• Voltage Type: AC
• Poles: 3
• Frame Type: ED
