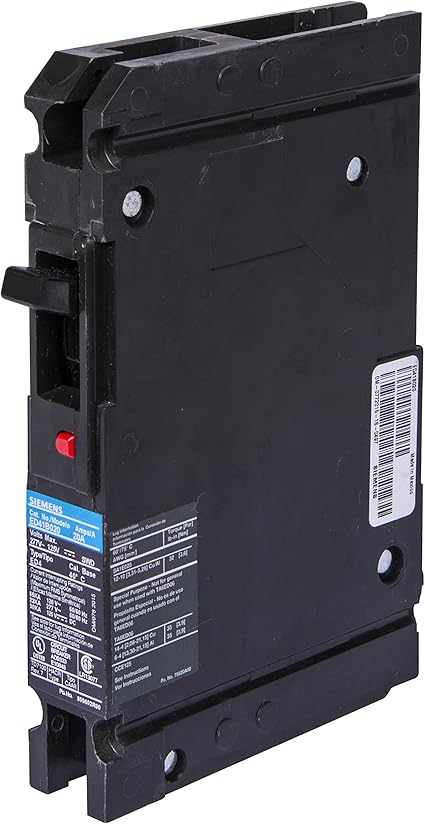

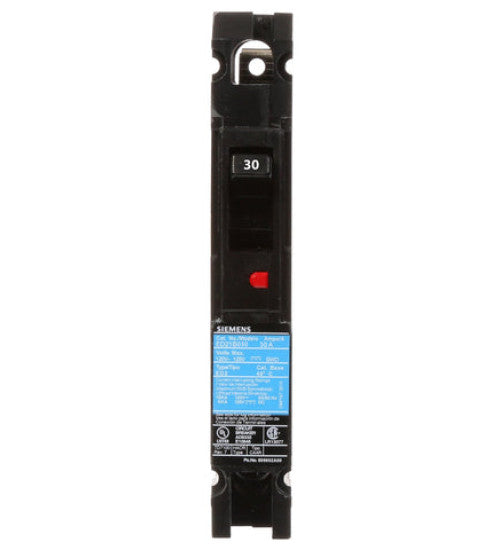

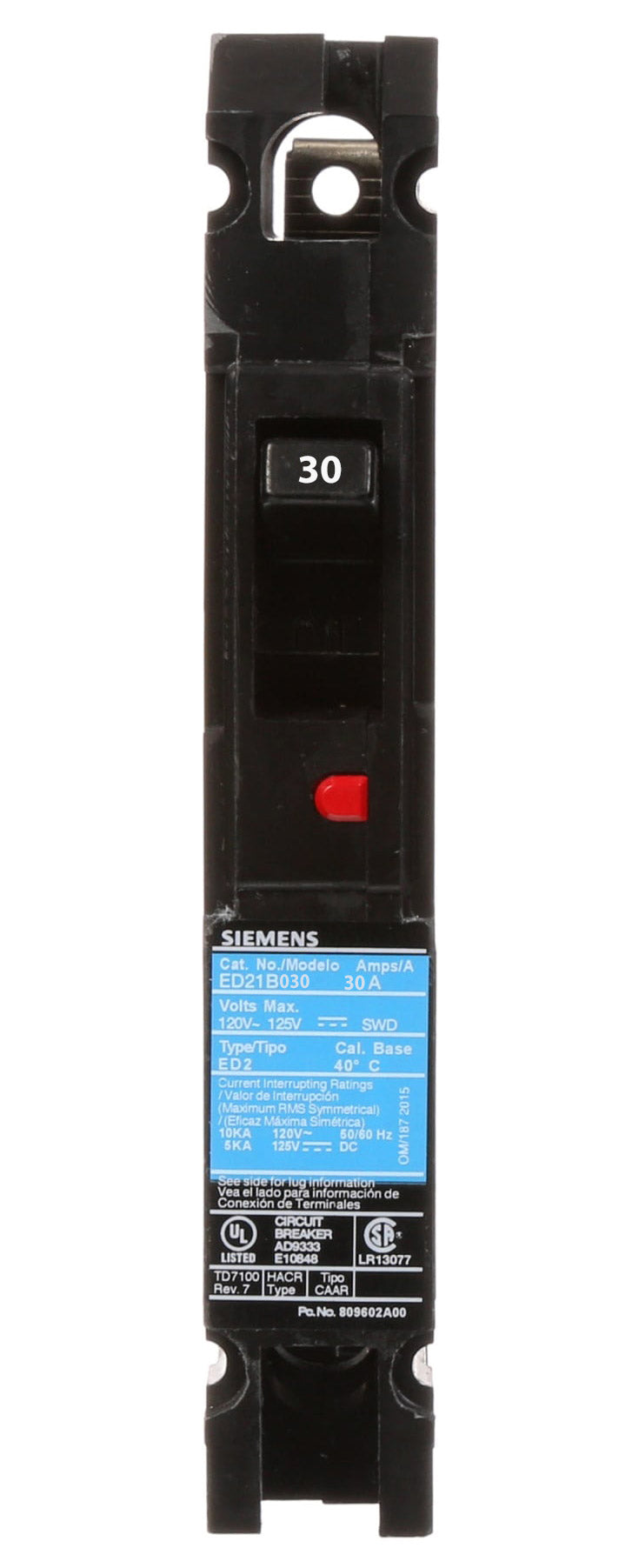

Siemens ED21B030 Molded Case Circuit Breaker 30A

Product Description

The Siemens ED21B030 is a molded case circuit breaker from the Sentron Series. This 1-pole breaker has a 30A current rating and is designed for 120V systems. It provides thermal-magnetic protection with long-time and instantaneous trip functions. The breaker is suitable for use in individual enclosures, switchboards, and panelboards.

• Bolt On connection
• Thermal Magnetic Protection
• Load side lugs included

Product Highlights

The Siemens ED21B030 circuit breaker provides reliable overload and short circuit protection for various applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: ED21B030

Technical Specifications

• Part Number: ED21B030
• Manufacturer: Siemens / ITE
• Family: Sentron Series
• Pole: 1
• Amp: 30
• Volt: 120
• Phase: 1
• Category: Molded Case
• Connection: Bolt On
• Type: ED
• Functions: LI - Long-Time and Instantaneous
• Protection: Thermal Magnetic
• AIC Ratings: 10kA@120V
• Current Rating: 30 Amps
• Circuit Breaker Type: Standard
• Mounting Type: Panel Mount
• Number of Poles: 1
• Brand: SIEMENS
• Voltage: 120 Volts
• Sub Brand: Sentron
• Interrupt Rating: 10 kAIC
• Voltage Rating: 120 VAC 125 VDC
• Trip Range: N/A
• Frequency Rating: 50/60 Hz
• Actuator: Varying
• Auxiliary Contacts: N/A
• Frame: ED
• Trip Type: Thermal Magnetic
• Standards: HACR
• Application: Standard 40C Breaker
• Breaking Capacity: 10kA
• Model: ED
• No of Pole: 1P
• Rating: 30A
• Series: Sentron Series
• Frame Type: ED Frame
• Voltage Maximum: 120V AC / 125V DC
• Amps: 30A
• kA IR 240V AC: 10 kA IR at 120V
• KA IR VDC: 5 kA IR
• Terminals: Load Lugs
