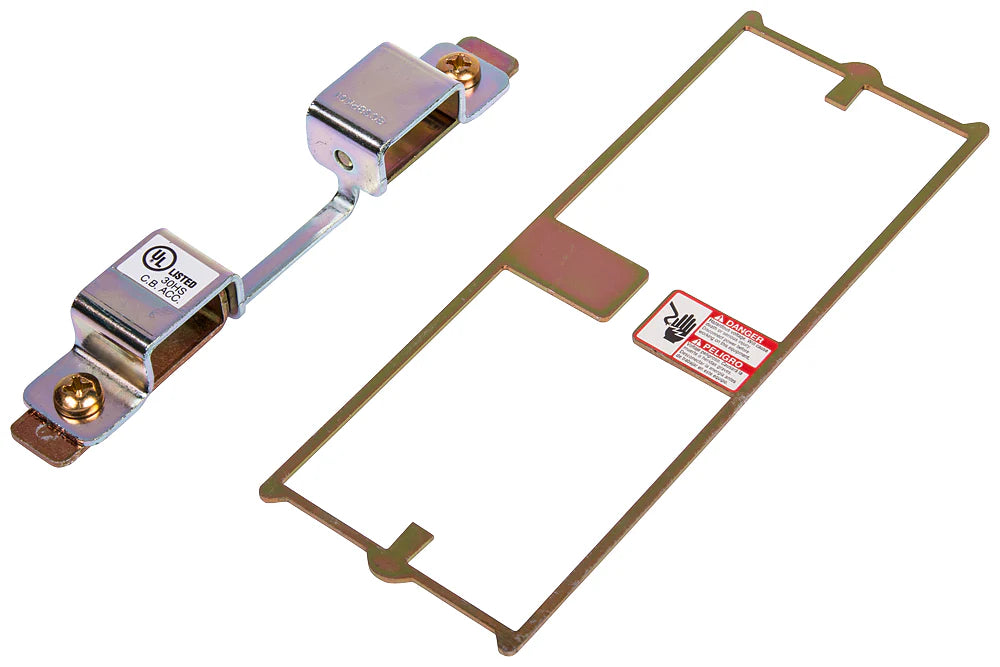

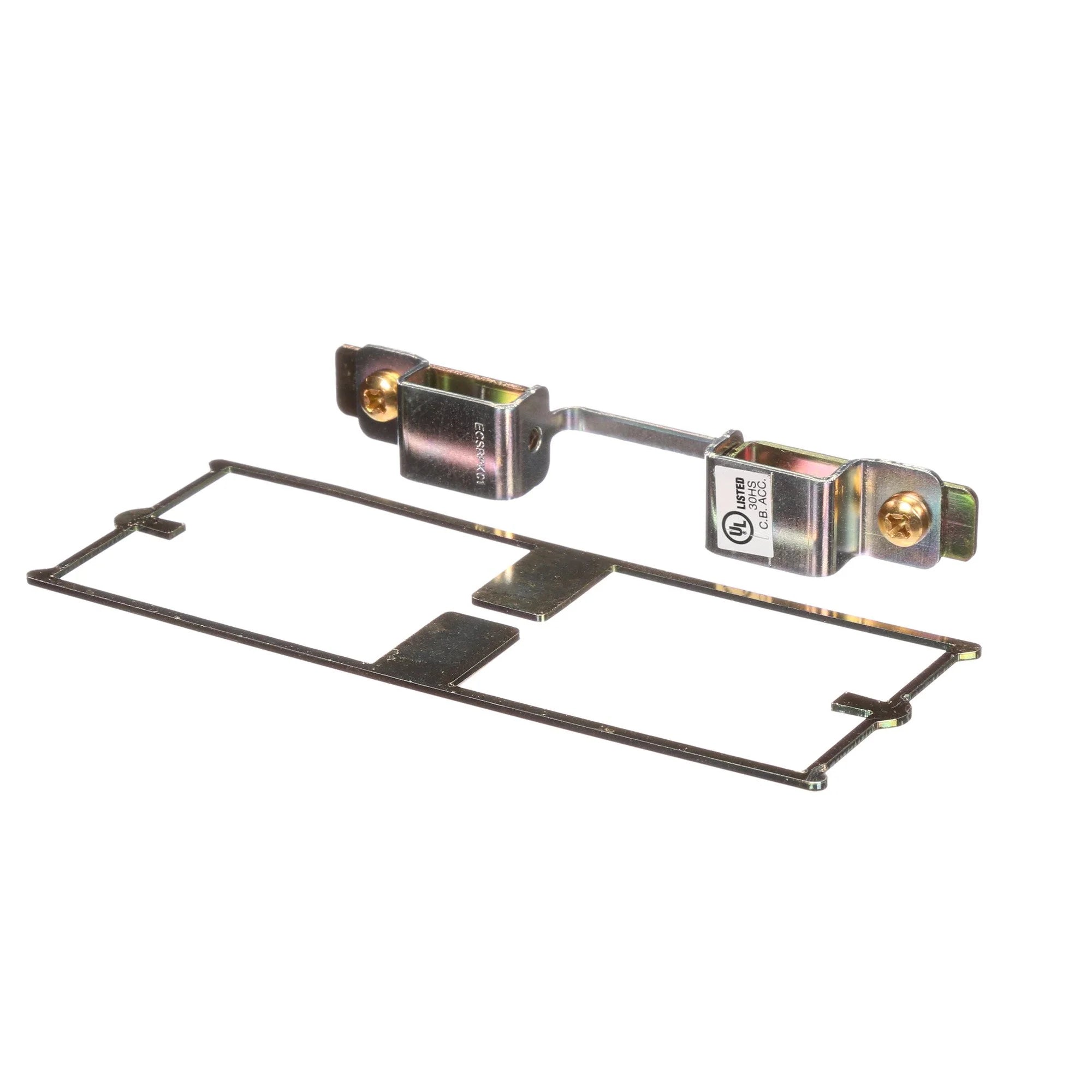

Siemens ECSBPK01 Manual Transfer Load Center Interlock Kit 225 A (1 Pack) Replacement MPN

Product Description

Siemens ECSBPK01 is a manual transfer load center interlock kit designed for use with QP, QPH, or HQPH main breakers. It fits load centers or meter combinations that can accept two-pole circuit breakers positioned opposite each other. This kit prevents feedback from two power sources, ensuring a safe transfer of power.

• Amperage rating of two hundred twenty-five amps.
• Mounting options for flush or surface installation.
• Compatible with Siemens and Murray load centers.

Product Highlights

This interlock kit is essential for safely switching power between sources, such as during a power outage. It allows users to use backup generators without risk of backfeeding into the grid.

Product Information

Standard Information

• Brand: Siemens
• Type: Manual Transfer Interlock Kit

Technical Specifications

• Amperage Rating: 225 A
• Application: For load centers or meter combinations
• Mounting Type: Flush or Surface
• Dimensions: 12.9 inches H x 5.1 inches W x 3.6 inches D
• Enclosure Type: NEMA 1/3R
• Material: Steel
• Country of Origin: Mexico
• UPC: 783643540019
